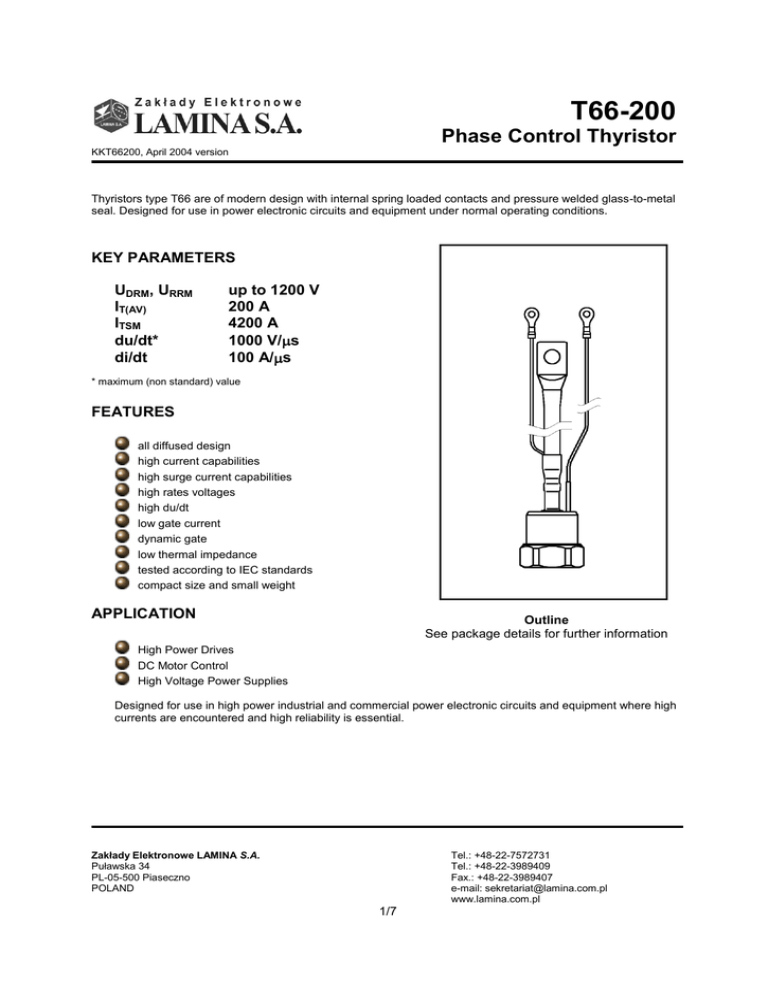

T66-200
Phase Control Thyristor
KKT66200, April 2004 version
Thyristors type T66 are of modern design with internal spring loaded contacts and pressure welded glass-to-metal
seal. Designed for use in power electronic circuits and equipment under normal operating conditions.
KEY PARAMETERS
UDRM, URRM
IT(AV)
ITSM
du/dt*
di/dt
up to 1200 V
200 A
4200 A
1000 V/s
100 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high du/dt
low gate current
dynamic gate
low thermal impedance
tested according to IEC standards
compact size and small weight
APPLICATION
Outline
See package details for further information
High Power Drives
DC Motor Control
High Voltage Power Supplies
Designed for use in high power industrial and commercial power electronic circuits and equipment where high
currents are encountered and high reliability is essential.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
1/7
T66-200
ORDERING INFORMATION
When ordering please refer to device code builder presented below.
Please use the complete part number when ordering, quote or in any future correspondence relating to your
order.
T66-200-

voltage class (hundreds of volts)
This is standard device, with no dynamic parameters specified and standard accessory set.
Please refer to Electrical Parameters if specific dynamic demands have to be met.
Those information, as well as any other concerning non-standard accessories e.g. stud thread, custom leads
lenght or lead terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
UDRM, URRM
UDSM, URSM
IDRM, IRRM
V
V
mA
04
400
500
06
600
700
08
800
900
10
1000
1100
12
1200
1300
Voltage class
22
du/dt group codes
du/dt
Group code
V/s
0
no specified value
4
200
5
320
6
500
7
1000
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
2/7
T66-200
Electrical properties
Parameter
Average on-state current
Unit
Value
IT(AV)
A
200
Tc
°C
90
IT(RMS)
A
Case temperature
RMS on-state current
Test conditions
Surge current
ITSM
A
I2t
kA2s
UTM
V
Treshold voltage
UT(T0)
V
Slope resistance
rT
mΩ
Latching current
Il
mA
Holding current
IH
I2t – value
On-state voltage max.
315
Tj=125°C, UR=0,8URRM,
tp=10ms
4200
88,2
Tj=25°C, ITM=625A
1,70
0,91
1,40
Tj=25°C, UD=12V
800
mA
Tj=25°C, UD=12V
160
100
Circuit commutated turn-off
time (typical)
tq
s
Tj=125°C, ITM=150A,
diR/dt=12,5A/s, du/dt=20V/s,
UD=0,67UDRM, URM=100V
Turn-0n time (typical)
ton
s
ITM=100A, UDM=100V
10
100
Rate of rise of on-state currentrepetitive
di/dt
A/s
Tj=125°C, ITM=3IT(AV),
UD=0,67UDRM, f=50Hz, IGM=1A,
diG/dt=1A/s
Critical rate of raise of off-state
voltage
du/dt
V/s
Tj=125°C, UD=0,67UDRM,
200 - 1000
Gate current to trigger
IGT
mA
Tj=25°C, UD=12V
150
Gate voltage to trigger
UGT
V
Tj=25°C, UD=12V
3
Unit
Test conditions
Value
RthJC
°C/W
DC
0,10
RthCS
°C/W
0,075
Tjmin...Tjmax
°C
-40...+125
Tstg
°C
-40...+125
Termal properties
Parameter
Thermal resistance, junction to
case
Thermal resistance, case to
heatsink
Operating junction temperature
Storage temperature
Mechanical properties
Parameter
Unit
Value
Mounting force
Fm
kN
3,5
Weight
m
g
300
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
3/7
T66-200
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless
stated otherwise.
Do not scale.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
4/7
T66-200
CHARACTERISTICS
PT(AV), W
PT(AV), W
350
450
o
DC
180
400
o
120
300
o
o
90
180
350
o
60
250
o
120
o
300
o
30
90
o
60
200
250
o
30
200
150
150
100
100
50
50
Q
0
Q
0
0
25
50
75
100
125
150
175
0
200
IT(AV), A
Power loss characteristics. Sinus wave form
o
50
100
150
200
250
300
350
IT(AV), A
Power loss characteristics. Square wave form
o
TC, C
TC, C
130
130
120
120
110
Q
Q
110
100
100
90
o
60
o
30
90
o
90
o
o
60
30
o
90
o
120
o
180
o
120
o
DC
80
180
80
70
0
100
Case temperature ratings. Sinus wave form
200
0
IT(AV), A
50
100
150
200
250
Case temperature ratings. Square wave form
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
5/7
300
350
IT(AV), A
T66-200
ITSM, [kA]
UTM, V
8
4,5
7
o
4,0
Tj=125 C
6
5
Tj=Tjmax
UR=0,8URRM
3,5
o
Tj=25 C
4
3,0
3
2
2,5
1
0
100
2,0
1000
10000
1
10
On-state characteristic
Non-repetitive surge current rating
o
Zth(t), C/W
0,1
0,01
0,001
0,001
0,01
0,1
1
10
t, s
Transient thermal impedance
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
6/7
100
n
ITM, A
T66-200
Gate characteristics
iG, mA
iG , A
375
4
UFGM=20V
IFGM=4A
300
3
Tj=-40oC
225
2
PGM=16W
150
o
Tj=+25 C
B
1
75
o
Tj=+125 C
R
A
0
0
0
UGD=0,25V 1
2
3
Gate characteristic. Possible trigger area.
4
0
u G, V
5
10
15
Gate characteristic.
20
uG , V
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended gate drive load line
HEATSINKS
LAMINA S.I. has its own proprietary range of extruded aluminium heatsinks designed to optimise the performance
of our semiconductors with natural and forced air flow. High efficiency water cooled copper heatsinks are also
available.
POWER ASSEMBLY CAPABILITY
LAMINA S.I. provides a support for those customers requiring more than a basic semiconductor and offers
precisely assembled Power Blocks according to factory or customer standards.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
7/7
