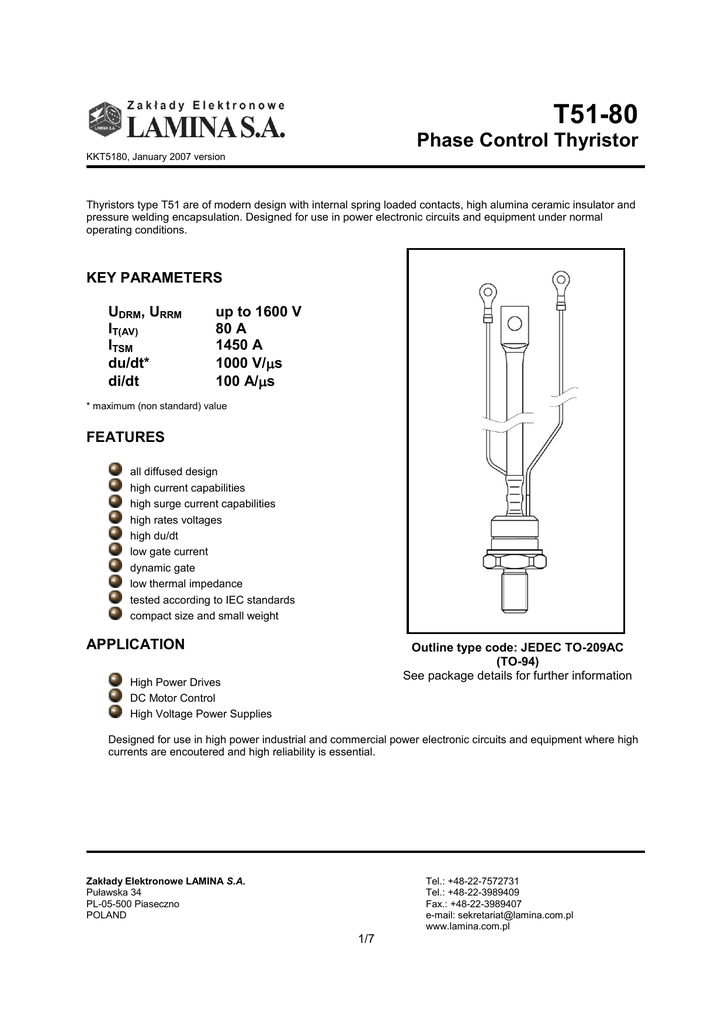

T51-80

T51-80
Phase Control Thyristor
KKT5180, January 2007 version
Thyristors type T51 are of modern design with internal spring loaded contacts, high alumina ceramic insulator and
pressure welding encapsulation. Designed for use in power electronic circuits and equipment under normal
operating conditions.
KEY PARAMETERS
UDRM, URRM
IT(AV)
ITSM
du/dt*
di/dt
up to 1600 V
80 A
1450 A
1000 V/s
100 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high du/dt
low gate current
dynamic gate
low thermal impedance
tested according to IEC standards
compact size and small weight
APPLICATION
Outline type code: JEDEC TO-209AC
(TO-94)
See package details for further information
High Power Drives
DC Motor Control
High Voltage Power Supplies
Designed for use in high power industrial and commercial power electronic circuits and equipment where high
currents are encoutered and high reliability is essential.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
1/7
T51-80
ORDERING INFORMATION
When ordering please refer to device code builder presented below.
Please use the complete part number when ordering, quote or in any future correspondence relating to your
order.
T51-80-

voltage class (hundreds of volts)
This is standard device, with no dynamic parameters specified and standard accessory set.
Please refer to Electrical Parameters if specific dynamic demands have to be met.
Those information, as well as any other concerning non-standard accessories e.g. stud thread, custom leads
lenght or lead terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
UDRM, URRM
UDSM, URSM
IDRM, IRRM
V
V
mA
14
1400
1500
16
1600
1700
Voltage class
10
du/dt group codes
du/dt
Group code
V/s
0
no specified value
4
200
5
320
6
500
7
1000
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
2/7
T51-80
Electrical properties
Parameter
Average on-state current
Unit
Value
IT(AV)
A
80
Tc
°C
90
IT(RMS)
A
Case temperature
RMS on-state current
Test conditions
Surge current
ITSM
A
I2t
kA2s
UTM
V
Treshold voltage
UT(T0)
V
Slope resistance
rT
mΩ
Latching current
Il
mA
Holding current
IH
I2t – value
On-state voltage max.
125
Tj=125°C, UR=0,8URRM,
tp=10ms
1450
10,5
Tj=25°C, ITM=500A
2,20
0,93
3,20
Tj=25°C, UD=12V
600
mA
Tj=25°C, UD=12V
140
150
Circuit commutated turn-off
time (typical)
tq
s
Tj=125°C, ITM=50A,
diR/dt=5A/s, du/dt=20V/s,
UD=0,67UDRM, URM=100V
Turn-0n time (typical)
ton
s
ITM=100A, UDM=100V
7
100
Rate of rise of on-state currentrepetitive
di/dt
A/s
Tj=125°C, ITM=3IT(AV),
UD=0,67UDRM, f=50Hz, IGM=1A,
diG/dt=1A/s
Critical rate of raise of off-state
voltage
du/dt
V/s
Tj=125°C, UD=0,67UDRM,
200 - 1000
Gate current to trigger
IGT
mA
Tj=25°C, UD=12V
150
Gate voltage to trigger
UGT
V
Tj=25°C, UD=12V
3
Unit
Test conditions
Value
RthJC
°C/W
DC
0,25
RthCS
°C/W
0,12
Tjmin...Tjmax
°C
-40...+125
Tstg
°C
-40...+125
Termal properties
Parameter
Thermal resistance, junction to
case
Thermal resistance, case to
heatsink
Operating junction temperature
Storage temperature
Mechanical properties
Parameter
Unit
Value
Mounting torque
M
Nm
14 ... 17
Weight
m
g
130
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
3/7
T51-80
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless
stated otherwise.
Do not scale.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
4/7
T51-80
CHARACTERISTICS
PT(AV), W
PT(AV), W
140
175
DC
o
180
120
150
o
120
o
180
o
90
100
o
125
o
60
o
80
120
90
o
o
30
60
100
o
30
60
75
40
50
20
25
Q
Q
0
0
0
10
20
30
40
50
60
70
80
0
90
IT(AV), A
Power loss characteristics. Sinus wave form.
o
20
40
60
80
100
120
140
IT(AV), A
Power loss characteristics. Square wave form.
o
TC, C
TC, C
130
130
120
120
110
Q
Q
110
100
100
90
o
30
o
30
o
60
90
o
60
o
90 120o
o
o
180
90
o
120
o
DC
80
180
80
70
0
10
20
30
40
50
60
70
Case temperature ratings. Sinus wave form.
80
90
0
IT(AV), A
20
40
60
80
100
Case temperature ratings. Square wave form.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
5/7
120
140
IT(AV), A
T51-80
ITSM, [kA]
UTM, V
1,5
6
1,4
Tj=Tjmax
5
Tj=Tjmax
UR=0,8URRM
1,3
1,2
4
1,1
3
1,0
0,9
2
0,8
0,7
1
10
100
1
100
1000
n
Non-repetitive surge current rating
ITM, A
On-state characteristic
o
Zth(t), C/W
1
0,1
0,01
0,001
0,01
0,1
1
10
t, s
Transient thermal impedance
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
6/7
T51-80
Gate characteristics
iG , A
iG, mA
375
4
UFGM=20V
IFGM=4A
300
3
Tj=-40oC
225
2
PGM=16W
150
Tj=+25oC
B
1
75
Tj=+125oC
R
A
0
0
0
UGD=0,25V 1
2
3
Gate characteristic. Possible trigger area.
4
0
u G, V
5
10
15
Gate characteristic.
20
u G, V
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended gate drive load line
HEATSINKS
LAMINA S.I. has its own proprietary range of extruded aluminium heatsinks designed to optimise the performance
of our semiconductors with natural and forced air flow. High efficiency water cooled copper heatsinks are also
available.
POWER ASSEMBLY CAPABILITY
LAMINA S.I. provides a support for those customers requiring more than a basic semiconductor and offers
precisely assembled Power Blocks according to factory or customer standards.
