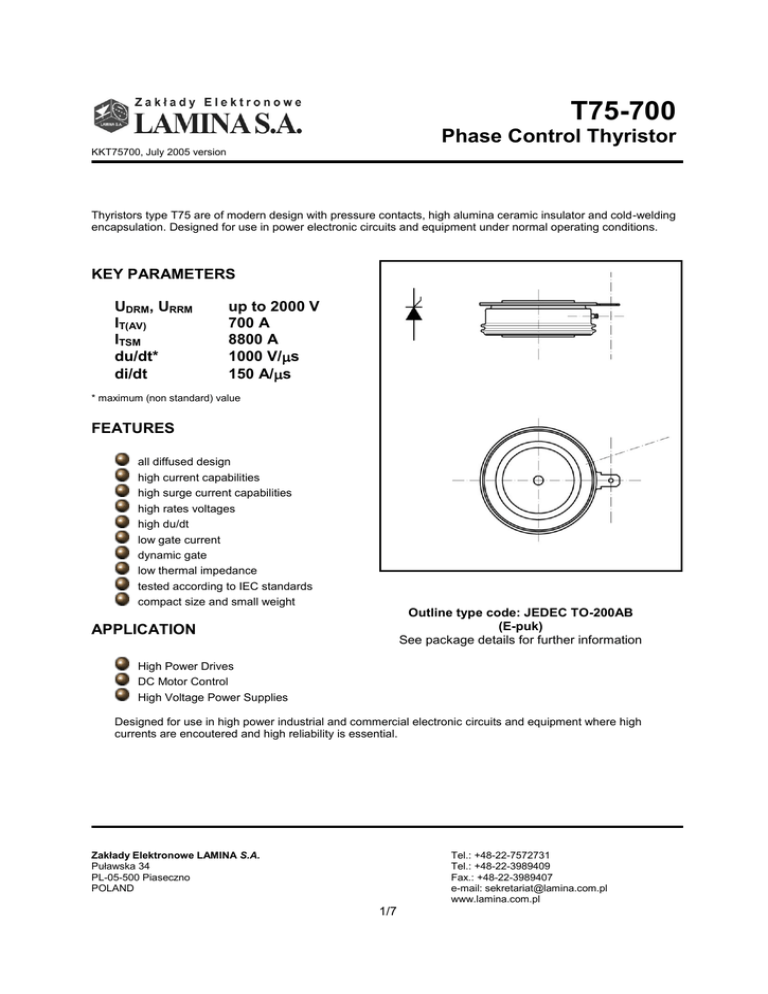

T75-700

T75-700
Phase Control Thyristor
KKT75700, July 2005 version
Thyristors type T75 are of modern design with pressure contacts, high alumina ceramic insulator and cold-welding
encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
KEY PARAMETERS
UDRM, URRM
IT(AV)
ITSM
du/dt*
di/dt
up to 2000 V
700 A
8800 A
1000 V/s
150 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high du/dt
low gate current
dynamic gate
low thermal impedance
tested according to IEC standards
compact size and small weight
Outline type code: JEDEC TO-200AB
(E-puk)
See package details for further information
APPLICATION
High Power Drives
DC Motor Control
High Voltage Power Supplies
Designed for use in high power industrial and commercial electronic circuits and equipment where high
currents are encoutered and high reliability is essential.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
1/7
T75-700
Phase Control Thyristor
KKT75700, July 2005 version
ORDERING INFORMATION
When ordering please refer to device code builder presented below.
Please use the complete part number when ordering, quote or in any future correspondence relating to your
order.
T75-700-

voltage class (hundreds of volts)
This is standard device, with no dynamic parameters specified and standard accessory set.
Please refer to Electrical Parameters if specific dynamic demands have to be met.
Those information, as well as any other concerning non-standard accessories e.g. custom leads lenght or lead
terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
UDRM, URRM
UDSM, URSM
IDRM, IRRM
V
V
mA
04
400
500
06
600
700
08
800
900
10
1000
1100
12
1200
1300
14
1400
1500
16
1600
1700
18
1800
1900
20
2000
2100
Voltage class
30
du/dt group codes
du/dt
Group code
V/s
0
no specified value
5
320
6
500
7
1000
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
2/7
T75-700
Phase Control Thyristor
KKT75700, July 2005 version
Electrical properties
Parameter
Average on-state current
Unit
A
700
Tc
°C
65
IT(RMS)
A
Surge on-state current
ITSM
A
I2t
kA2s
UTM
V
Treshold voltage
UT(T0)
V
Slope resistance
rT
mΩ
Latching current
Il
mA
Holding current
IH
I2t – value
On-state voltage max.
Circuit commutated turn-off
time (typical)
Value
IT(AV)
Case temperature
RMS on-state current
Test conditions
1100
Tj=125°C, UR=0,8URRM,
tp=10ms
8800
386
Tj=25°C, ITM=1500A
1,80
0,87
0,60
Tj=25°C, UD=12V
800
mA
Tj=25°C, UD=12V
200
tq (typ)
s
Tj=125°C, ITM=250A,
diR/dt=25A/s, du/dt=20V/s,
UD=0,67UDRM, URM=100V
150
ton
s
ITM=100A, UDM=100V
7
150
Turn-0n time (typical)
Rate of rise of on-state currentrepetitive
di/dt
A/s
Tj=125°C, ITM=3IT(AV),
UD=0,67UDRM, f=50Hz, IGM=1A,
diG/dt=1A/s
Critical rate of raise of off-state
voltage
du/dt
V/s
Tj=125°C, UD=0,67UDRM,
320 - 1000
Gate current to trigger
IGT
mA
Tj=25°C, UD=12V
150
Gate voltage to trigger
UGT
V
Tj=25°C, UD=12V
3
Unit
Test conditions
Value
RthJC
°C/W
two sided, DC
0,04
RthCS
°C/W
two sided
0,020
Tjmin...Tjmax
°C
-40...+125
Tstg
°C
-40...+125
Termal properties
Parameter
Thermal resistance, junction to
case
Thermal resistance, case to
heatsink
Operating junction temperature
Storage temperature
Mechanical properties
Parameter
Unit
Value
Clamping force
FM
kN
9,0 ... 11,0
Weight
m
g
85
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
3/7
T75-700
Phase Control Thyristor
KKT75700, July 2005 version
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless
stated otherwise.
Do not scale.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
4/7
T75-700
Phase Control Thyristor
KKT75700, July 2005 version
CHARACTERISTICS
PT(AV), [W]
PT(AV), [W]
1400
1750
o
120
o
1200
DC
180
o
90
1500
o
180
o
60
o
o
30
1000
o
120
90
1250
o
60
o
800
1000
600
750
400
500
200
30
250
Q
Q
0
0
0
100
200
300
400
500
600
700
0
IT(AV), [A]
Power loss characteristics. Sinus wave form.
o
TC, [ C]
100
200
300
400
500
600
700
800
900
1000 1100
IT(AV), [A]
Power loss characteristics. Square wave form.
o
TC, [ C]
130
130
120
120
110
110
100
Q
90
90
80
80
70
o
30
70
o
60
Q
100
o
90
60
o
120
o
180
o
30
o
60
60
o
o
90 120
o
180
DC
50
0
100
200
300
400
500
600
Case temperature ratings. Sinus wave form.
700
50
800
0
100
200
300
400
500
600
700
800
900 1000 1100 1200
IT(AV), [A]
Case temperature ratings. Square wave form.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
5/7
IT(AV), [A]
T75-700
Phase Control Thyristor
KKT75700, July 2005 version
ITSM, [kA]
UTM, V
9,0
6
8,5
8,0
7,5
Tj=Tjmax
5
Tj=Tjmax
UR=0,8URRM
4
7,0
6,5
3
6,0
2
5,5
5,0
1
4,5
4,0
1
10
100
0
100
1000
n
Non-repetitive surge current rating
On-state characteristic
o
Zth(t), C/W
0,1
0,01
0,001
0,001
0,01
0,1
1
10000
ITM, A
10
t, s
Transient thermal impedance
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
6/7
T75-700
Phase Control Thyristor
KKT75700, July 2005 version
Gate characteristics
iG, mA
iG , A
375
4
UFGM=20V
IFGM=4A
300
3
Tj=-40oC
225
2
PGM=16W
150
o
Tj=+25 C
B
1
75
o
Tj=+125 C
R
A
0
0
0
1
2
Gate characteristic. Possible trigger area.
3
4
0
uG , V
5
10
15
Gate characteristic.
20
u G, V
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended gate drive load line
HEATSINKS
LAMINA S.I. has its own proprietary range of extruded aluminium heatsinks designed to optimise the performance
of our semiconductors with natural and forced air flow. High efficiency water cooled copper heatsinks are also
available.
DEVICE CLAMPS
Disc devices require the correct clamping force to ensure their best operation. LAMINA S.I. offers a wide selection
of clamps to suit all of our manufactured devices.
POWER ASSEMBLY CAPABILITY
LAMINA S.I. provides a support for those customers requiring more than a basic semiconductor and offers
precisely assembled Power Blocks according to factory or customer standards.
