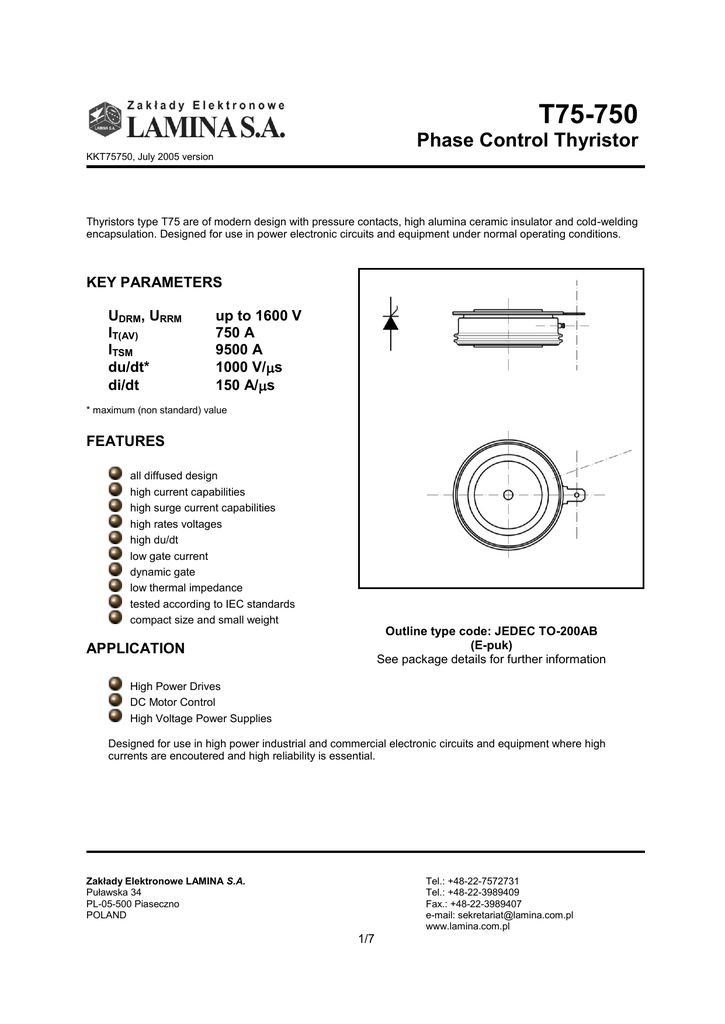

Phase Control Thyristor
KKT75750, July 2005 version
Thyristors type T75 are of modern design with pressure contacts, high alumina ceramic insulator and cold-welding
encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
KEY PARAMETERS
UDRM, URRM
IT(AV)
ITSM
du/dt*
di/dt
up to 1600 V
750 A
9500 A
1000 V/s
150 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high du/dt
low gate current
dynamic gate
low thermal impedance
tested according to IEC standards
compact size and small weight
Outline type code: JEDEC TO-200AB
(E-puk)
See package details for further information
APPLICATION
High Power Drives
DC Motor Control
High Voltage Power Supplies
Designed for use in high power industrial and commercial electronic circuits and equipment where high
currents are encoutered and high reliability is essential.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
1/7
T75-750
ORDERING INFORMATION
When ordering please refer to device code builder presented below.
Please use the complete part number when ordering, quote or in any future correspondence relating to your
order.
T75-750-

voltage class (hundreds of volts)
This is standard device, with no dynamic parameters specified and standard accessory set.
Please refer to Electrical Parameters if specific dynamic demands have to be met.
Those information, as well as any other concerning non-standard accessories e.g. custom leads lenght or lead
terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
UDRM, URRM
UDSM, URSM
IDRM, IRRM
V
V
mA
04
400
500
06
600
700
08
800
900
10
1000
1100
12
1200
1300
14
1400
1500
16
1600
1700
Voltage class
30
du/dt group codes
du/dt
Group code
V/s
0
no specified value
5
320
6
500
7
1000
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
2/7
T75-750
Electrical properties
Parameter
Unit
Average on-state current
IT(AV)
A
Test conditions
Value
750
Tc
°C
65
RMS on-state current
IT(RMS)
A
1180
Surge on-state current
ITSM
A
Case temperature
2
I t – value
On-state voltage max.
2
It
kA s
Tj=125°C, UR=0,8URRM,
tp=10ms
9500
2
450
Tj=25°C, ITM=1500A
UTM
V
Treshold voltage
UT(T0)
V
0,89
Slope resistance
rT
mΩ
0,48
Latching current
Il
mA
Tj=25°C, UD=12V
800
Holding current
IH
mA
Tj=25°C, UD=12V
200
tq (typ)
s
Tj=125°C, ITM=250A,
diR/dt=25A/s, du/dt=20V/s,
UD=0,67UDRM, URM=100V
150
ton
s
ITM=100A, UDM=100V
7
150
Circuit commutated turn-off
time (typical)
Turn-0n time (typical)
1,70
Rate of rise of on-state currentrepetitive
di/dt
A/s
Tj=125°C, ITM=3IT(AV),
UD=0,67UDRM, f=50Hz, IGM=1A,
diG/dt=1A/s
Critical rate of raise of off-state
voltage
du/dt
V/s
Tj=125°C, UD=0,67UDRM,
320 - 1000
Gate current to trigger
IGT
mA
Tj=25°C, UD=12V
150
Gate voltage to trigger
UGT
V
Tj=25°C, UD=12V
3
Unit
Test conditions
Value
RthJC
°C/W
two sided, DC
0,04
RthCS
°C/W
two sided
0,020
Tjmin...Tjmax
°C
-40...+125
Tstg
°C
-40...+125
Termal properties
Parameter
Thermal resistance, junction to
case
Thermal resistance, case to
heatsink
Operating junction temperature
Storage temperature
Mechanical properties
Parameter
Unit
Value
Clamping force
F
kN
9,0 ... 11,0
Weight
m
g
85
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
3/7
T75-750
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless
stated otherwise.
Do not scale.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
4/7
T75-750
CHARACTERISTICS
PT(AV), [W]
PT(AV), [W]
1400
1800
DC
o
180
o
120
1200
1600
o
o
90
180
o
1400
60
1000
o
o
90
o
30
1200
120
o
60
o
800
1000
600
800
30
600
400
400
200
200
Q
0
Q
0
0
100
200
300
400
500
600
700
800
0
IT(AV), [A]
Power loss characteristics. Sinus wave form.
o
TC, [ C]
100
200
300
400
500
600
700
800
900 1000 1100 1200
IT(AV), [A]
Power loss characteristics. Square wave form.
o
TC, [ C]
130
130
120
120
110
110
100
Q
Q
100
90
90
80
80
70
70
o
30
o
60
o
o
90
120
o
30
o
180
60
o
60
60
o
o
o
90 120
180
DC
50
0
100
200
300
400
500
600
Case temperature ratings. Sinus wave form.
700
800
50
0
100
200
300
400
500
600
700
800
900 1000 1100 1200
IF(AV), [A]
Case temperature ratings. Square wave form.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
5/7
IF(AV), [A]
T75-750
ITSM, [kA]
UTM, V
10
6
9
8
4
7
3
6
2
5
1
4
1
Tj=Tjmax
5
Tj=Tjmax
UR=0,8URRM
10
100
0
100
1000
n
Non-repetitive surge current rating
On-state characteristic
o
Zth(t), C/W
0,1
0,01
0,001
0,001
0,01
0,1
1
10
t, s
Transient thermal impedance
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
6/7
10000
ITM, A
T75-750
Gate characteristics
iG, mA
iG , A
375
4
UFGM=20V
IFGM=4A
300
3
Tj=-40oC
225
2
PGM=16W
150
o
Tj=+25 C
B
1
75
o
Tj=+125 C
R
A
0
0
0
1
2
Gate characteristic. Possible trigger area.
3
4
0
uG , V
5
10
15
Gate characteristic.
20
u G, V
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended gate drive load line
HEATSINKS
LAMINA S.I. has its own proprietary range of extruded aluminium heatsinks designed to optimise the performance
of our semiconductors with natural and forced air flow. High efficiency water cooled copper heatsinks are also
available.
DEVICE CLAMPS
Disc devices require the correct clamping force to ensure their best operation. LAMINA S.I. offers a wide selection
of clamps to suit all of our manufactured devices.
POWER ASSEMBLY CAPABILITY
LAMINA S.I. provides a support for those customers requiring more than a basic semiconductor and offers
precisely assembled Power Blocks according to factory or customer standards.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
www.lamina.com.pl
7/7
