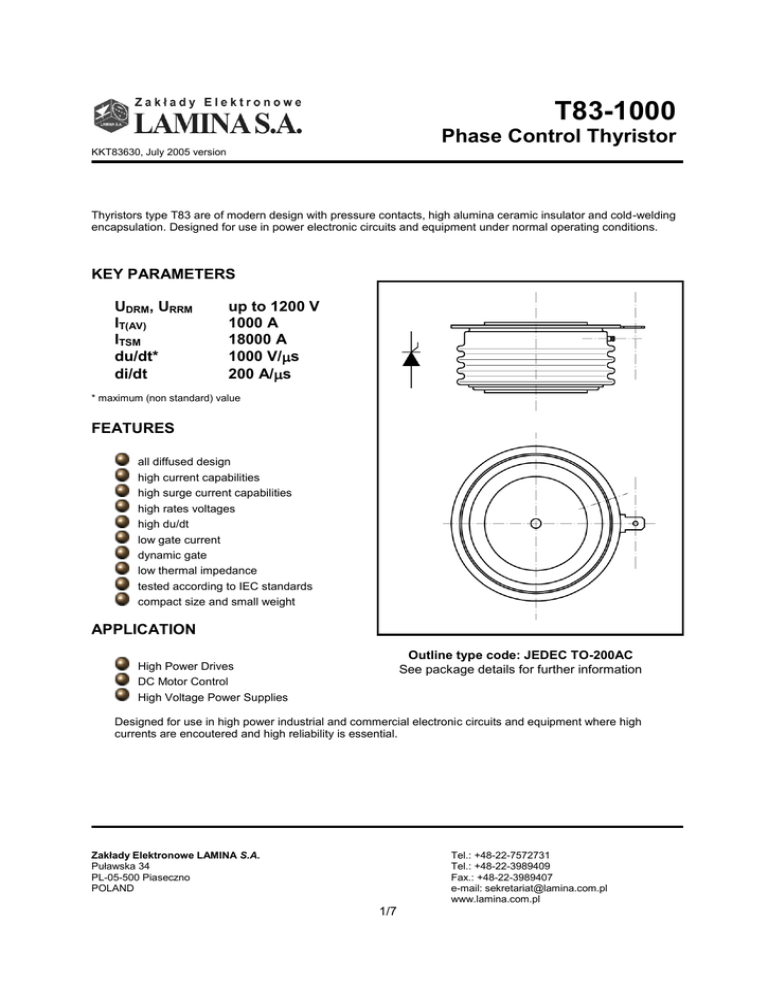

T83-1000
Phase Control Thyristor
KKT83630, July 2005 version
Thyristors type T83 are of modern design with pressure contacts, high alumina ceramic insulator and cold-welding
encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
KEY PARAMETERS
UDRM, URRM
IT(AV)
ITSM
du/dt*
di/dt
up to 1200 V
1000 A
18000 A
1000 V/s
200 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high du/dt
low gate current
dynamic gate
low thermal impedance
tested according to IEC standards
compact size and small weight
APPLICATION
Outline type code: JEDEC TO-200AC
See package details for further information
High Power Drives
DC Motor Control
High Voltage Power Supplies
Designed for use in high power industrial and commercial electronic circuits and equipment where high
currents are encoutered and high reliability is essential.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
1/7
T83-1000
Phase Control Thyristor
KKT83630, July 2005 version
ORDERING INFORMATION
When ordering please refer to device code builder presented below.
Please use the complete part number when ordering, quote or in any future correspondence relating to your
order.
T83-1000-

voltage class (hundreds of volts)
This is standard device, with no dynamic parameters specified and standard accessory set.
Please refer to Electrical Parameters if specific dynamic demands have to be met.
Those information, as well as any other concerning non-standard accessories e.g. custom leads lenght or lead
terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
UDRM, URRM
Voltage class
UDSM, URSM
IDRM, IRRM
mA
V
V
02
200
300
04
400
500
06
600
700
08
800
900
10
1000
1100
12
1200
1300
60
dU/dt group codes
du/dt
Group code
V/s
0
no specified value
5
320
6
500
7
1000
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
2/7
T83-1000
Phase Control Thyristor
KKT83630, July 2005 version
Electrical properties
Parameter
Average on-state current
Unit
Test conditions
Value
IT(AV)
A
1000
Tc
°C
80
RMS on-state current
IT(RMS)
A
Surge on-state current
ITSM
A
I2t
kA2s
Case temperature
I2t – value
On-state voltage max.
1570
Tj=125°C, UR=URRM, tp=10ms
18000
1620
Tj=25°C, ITM=1500A
UTM
V
Treshold voltage
UT(T0)
V
0,79
Slope resistance
rT
mΩ
0,20
Latching current
Il
mA
Tj=25°C, UD=12V
800
Holding current
IH
mA
Tj=25°C, UD=12V
200
tq (typ)
s
Tj=125°C, ITM=250A,
diR/dt=25A/s, du/dt=20V/s,
UD=0,67UDRM, URM=100V
150
ton
s
ITM=100A, UDM=100V
12
200
Circuit commutated turn-off
time (typical)
Turn-0n time (typical)
1,25
Rate of rise of on-state currentrepetitive
di/dt
A/s
Tj=125°C, ITM=3IT(AV),
UD=0,67UDRM, f=50Hz, IGM=1A,
diG/dt=1A/s
Critical rate of raise of off-state
voltage
du/dt
V/s
Tj=125°C, UD=0,67UDRM,
320 – 1000 (see du/dt group codes)
Gate current to trigger
IGT
mA
Tj=25°C, UD=12V
200
Gate voltage to trigger
UGT
V
Tj=25°C, UD=12V
3
Termal properties
Parameter
Unit
Test conditions
Value
RthJC
°C/W
two sided, DC
0,032
RthCS
°C/W
two sided
0,020
Tjmin...Tjmax
°C
-40...+125
Tstg
°C
-40...+125
Thermal resistance, junction to
case
Thermal resistance, case to
heatsink
Operating junction temperature
Storage temperature
Mechanical properties
Parameter
Unit
Value
Clamping force
FM
kN
12,0 ... 14,0
Weight
m
g
260
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
3/7
T83-1000
Phase Control Thyristor
KKT83630, July 2005 version
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless
stated otherwise.
Do not scale.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
4/7
T83-1000
Phase Control Thyristor
KKT83630, July 2005 version
PT(AV), [W]
PT(AV), [W]
1400
1800
o
180
DC
o
120
1200
1600
o
o
90
180
1400
o
o
60
1000
120
1200
o
o
30
800
o
90
60
1000
o
30
800
600
600
400
400
200
200
Q
0
0
100
200
300
400
500
600
700
800
900
Q
0
1000 1100
0
200
400
600
800
1000
1200
1400
IT(AV), [A]
Power loss characteristics. Sinus wave form.
1600
IT(AV), [A]
Power loss characteristics. Square wave form.
o
TC, [ C]
o
TC, [ C]
130
130
120
120
110
110
Q
Q
100
100
90
90
o
o
30
80
o
30
80
o
60
60
o
90
o
90
o
120
o
120
o
180
o
180
70
DC
70
0
100
200
300
400
500
600
700
800
900
Case temperature ratings. Sinus wave form.
60
1000 1100
0
200
400
600
800
1000
1200
IT(AV), [A]
Case temperature ratings. Square wave form.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
5/7
1400
1600
IT(AV), [A]
T83-1000
Phase Control Thyristor
KKT83630, July 2005 version
ITSM, [kA]
UTM, V
3,0
18
Tj=Tjmax
2,5
Tj=Tjmax
UR=0,8URRM
16
2,0
14
1,5
12
1,0
10
8
1
10
0,5
100
100
1000
n
Non-repetitive surge current rating
On-state characteristic
o
Zth(t), C/W
0,1
0,01
0,001
0,001
0,01
0,1
1
10000
ITM, A
10
t, s
Transient thermal impedance
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
6/7
600
iG, mA
500
400
o
Tj = -40 C
T83-1000
300
Phase Control Thyristor
200
o
Tj = +25 C
Tj = +125oC
100
KKT83630, July 2005 version
uG, V
0
0
1
2
3
4
5
UGD = 0,25V
Gate characteristics
Gate characteristic. Possible trigger area.
4
600
iG, mA
UFGM = 20V
IFGM = 4A
iG, A
500
3
400
Tj = -40oC
2
300
PGM = 16W
B
200
Tj = +25oC
o
Tj = +125 C
1
R
100
A
uG, V
0
1
2
3
UGD = 0,25V
Gate characteristic. Possible trigger area.
4
uG, V
0
0
0
5
10
Gate characteristic.
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended gate drive load line
5
15
20
4
i ,A
HEATSINKS
UFGM = 20V
IFGM = 4A
G
3
LAMINA
S.I. has its own proprietary range of extruded aluminium heatsinks designed to optimise the performance
of our semiconductors with natural and forced air flow. High efficiency water cooled copper heatsinks are also
available.
2
PGM = 16W
B
DEVICE CLAMPS
1
R
Disc devices require the correct
clamping force to ensure their best operation. LAMINA S.I. offers a wide selection
of clamps to suitA all of our manufactured devices. uG, V
0
0
5
10
15
Gate characteristic.
POWER
ASSEMBLY CAPABILITY
20
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended
drive loadfor
linethose
LAMINA
S.I. providesgate
a support
customers requiring more than a basic semiconductor and offers
precisely assembled Power Blocks according to factory or customer standards.
