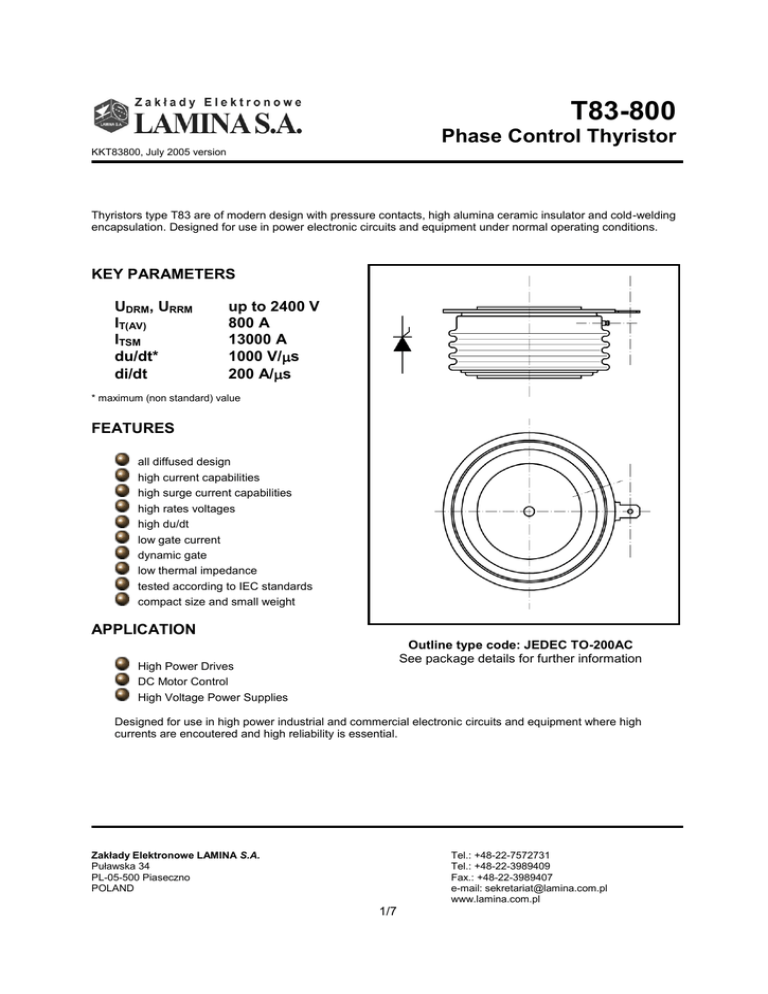

T83-800

T83-800
Phase Control Thyristor
KKT83800, July 2005 version
Thyristors type T83 are of modern design with pressure contacts, high alumina ceramic insulator and cold-welding
encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
KEY PARAMETERS
UDRM, URRM
IT(AV)
ITSM
du/dt*
di/dt
up to 2400 V
800 A
13000 A
1000 V/s
200 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high du/dt
low gate current
dynamic gate
low thermal impedance
tested according to IEC standards
compact size and small weight
APPLICATION
Outline type code: JEDEC TO-200AC
See package details for further information
High Power Drives
DC Motor Control
High Voltage Power Supplies
Designed for use in high power industrial and commercial electronic circuits and equipment where high
currents are encoutered and high reliability is essential.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
1/7
T83-800
Phase Control Thyristor
KKT83800, July 2005 version
ORDERING INFORMATION
When ordering please refer to device code builder presented below.
Please use the complete part number when ordering, quote or in any future correspondence relating to your
order.
T83-800-

voltage class (hundreds of volts)
This is standard device, with no dynamic parameters specified and standard accessory set.
Please refer to Electrical Parameters if specific dynamic demands have to be met.
Those information, as well as any other concerning non-standard accessories e.g. custom leads lenght or lead
terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
Voltage class
UDRM, URRM
UDSM, URSM
IDRM, IRRM
mA
V
V
04
400
500
06
600
700
08
800
900
10
1000
1100
12
1200
1300
14
1400
1500
16
1600
1700
18
1800
1900
20
2000
2100
22
2200
2300
24
2400
2500
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
50
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
2/7
T83-800
Phase Control Thyristor
KKT83800, July 2005 version
dU/dt group codes
du/dt
Group code
V/s
0
5
6
7
no specified value
320
500
1000
Electrical properties
Parameter
Unit
Test conditions
Value
Average on-state current
Case temperature
RMS on-state current
Surge on-state current
I2t – value
On-state voltage max.
Treshold voltage
Slope resistance
Latching current
Holding current
IT(AV)
Tc
IT(RMS)
ITSM
I2t
UTM
UT(T0)
rT
Il
IH
A
°C
A
A
kA2s
V
V
mΩ
mA
mA
Circuit commutated turn-off
time (typical)
tq (typ)
s
ton
s
di/dt
A/s
du/dt
V/s
Tj=125°C, UD=0,67UDRM,
320 – 1000 (see du/dt group codes)
IGT
UGT
mA
V
Tj=25°C, UD=12V
Tj=25°C, UD=12V
200
3
Unit
Test conditions
Value
RthJC
°C/W
two sided, DC
0,032
RthCS
°C/W
two sided
0,020
Tjmin...Tjmax
Tstg
°C
°C
Turn-0n time (typical)
Rate of rise of on-state currentrepetitive
Critical rate of raise of off-state
voltage
Gate current to trigger
Gate voltage to trigger
Tj=125°C, UR=URRM, tp=10ms
Tj=25°C, ITM=1500A
Tj=25°C, UD=12V
Tj=25°C, UD=12V
Tj=125°C, ITM=250A,
diR/dt=25A/s, du/dt=20V/s,
UD=0,67UDRM, URM=100V
ITM=100A, UDM=100V
Tj=125°C, ITM=3IT(AV),
UD=0,67UDRM, f=50Hz, IGM=1A,
diG/dt=1A/s
800
70
1250
13000
845
1.70
0,99
0,49
800
200
200
12
200
Termal properties
Parameter
Thermal resistance, junction to
case
Thermal resistance, case to
heatsink
Operating junction temperature
Storage temperature
-40...+125
-40...+125
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
3/7
T83-800
Phase Control Thyristor
KKT83800, July 2005 version
Mechanical properties
Parameter
Unit
Value
Clamping force
FM
kN
12,0 ... 14,0
Weight
m
g
260
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless
stated otherwise.
Do not scale.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
4/7
T83-800
Phase Control Thyristor
KKT83800, July 2005 version
CHARACTERISTICS
PT(AV), [W]
PT(AV), [W]
1600
2200
o
180
DC
o
120
1400
2000
o
90
1800
o
o
60
1200
180
1600
o
o
30
1000
o
120
90
1400
o
60
1200
o
30
800
1000
600
800
600
400
400
200
Q
200
0
Q
0
0
100
200
300
400
500
600
700
800
900
0
IT(AV), [A]
Power loss characteristics. Sinus wave form.
200
400
600
800
1000
1200
Power loss characteristics. Square wave form.
o
TC, [ C]
1400
IT(AV), [A]
o
TC, [ C]
130
130
120
120
110
110
Q
Q
100
100
90
90
80
80
70
o
o
30
70
60
o
90
o
120
o
30
o
180
o
60
o
90
o
120
o
180
DC
60
60
0
100
200
300
400
500
600
700
Case temperature ratings. Sinus wave form.
800
50
900
0
100 200 300 400 500 600 700 800 900 1000 1100 1200 1300
IT(AV), [A]
Case temperature ratings. Square wave form.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
5/7
IT(AV), [A]
T83-800
Phase Control Thyristor
KKT83800, July 2005 version
ITSM, [kA]
UTM, V
6
14
13
Tj=Tjmax
5
Tj=Tjmax
UR=0,8URRM
12
4
11
3
10
9
2
8
1
7
0
100
6
1000
10000
1
ITM, A
10
Non-repetitive surge current rating
On-state characteristic
.
o
Zth(t), C/W
0,1
0,01
0,001
0,001
0,01
0,1
1
10
t, s
Transient thermal impedance
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
6/7
100
n
600
iG, mA
500
400
T83-800
o
Tj = -40 C
300
Phase Control Thyristor
200
o
Tj = +25 C
Tj = +125oC
KKT83800, July 2005 version
100
uG, V
0
0
Gate characteristics
1
2
3
4
5
UGD = 0,25V
Gate characteristic. Possible trigger area.
4
600
iG, mA
UFGM = 20V
IFGM = 4A
iG, A
500
3
400
Tj = -40oC
2
300
PGM = 16W
B
200
Tj = +25oC
o
Tj = +125 C
1
R
100
A
uG, V
0
1
2
3
UGD = 0,25V
Gate characteristic. Possible trigger area.
4
uG, V
0
0
0
5
10
Gate characteristic.
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended gate drive load line
5
15
20
4
i ,A
HEATSINKS
UFGM = 20V
IFGM = 4A
G
3
LAMINA S.I. has its own proprietary range of extruded aluminium heatsinks designed to optimise the performance
of our semiconductors with natural and forced air flow. High efficiency water cooled copper heatsinks are also
available.
2
PGM = 16W
B
DEVICE CLAMPS
1
R
Disc devices require the correct
clamping force to ensure their best operation. LAMINA S.I. offers a wide selection
of clamps to suitA all of our manufactured devices. uG, V
0
0
5
10
15
Gate characteristic.
POWER
ASSEMBLY CAPABILITY
20
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended
drive loadfor
linethose
LAMINA
S.I. providesgate
a support
customers requiring more than a basic semiconductor and offers
precisely assembled Power Blocks according to factory or customer standards.
