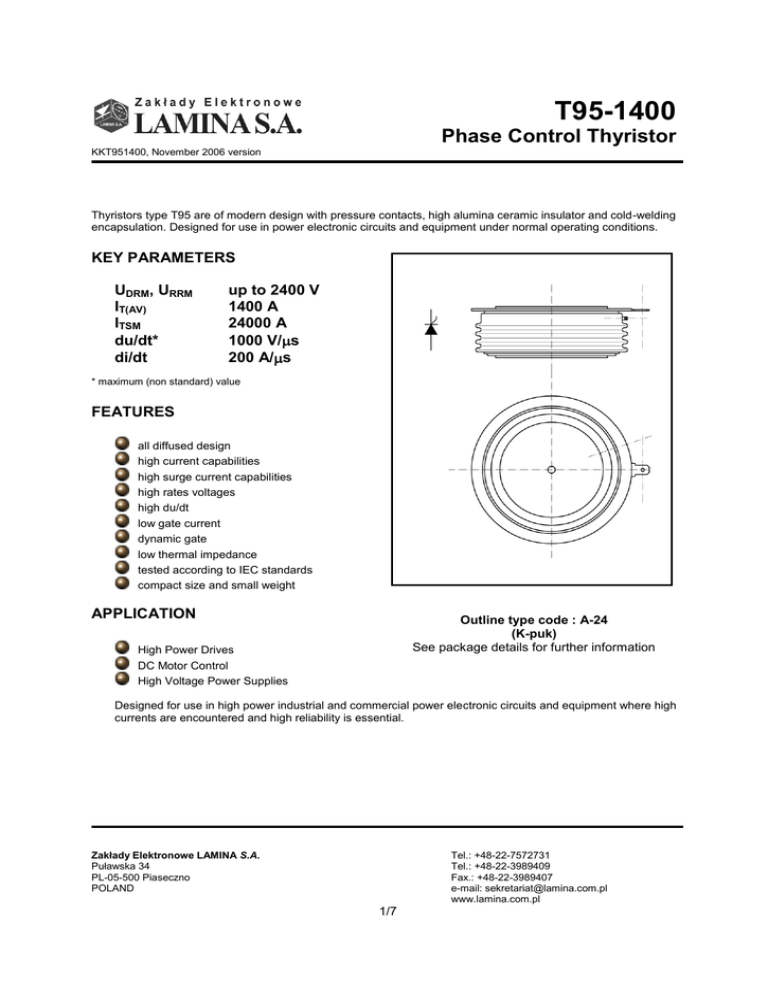

T95-1400

T95-1400
Phase Control Thyristor
KKT951400, November 2006 version
Thyristors type T95 are of modern design with pressure contacts, high alumina ceramic insulator and cold-welding
encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
KEY PARAMETERS
UDRM, URRM
IT(AV)
ITSM
du/dt*
di/dt
up to 2400 V
1400 A
24000 A
1000 V/s
200 A/s
* maximum (non standard) value
FEATURES
all diffused design
high current capabilities
high surge current capabilities
high rates voltages
high du/dt
low gate current
dynamic gate
low thermal impedance
tested according to IEC standards
compact size and small weight
APPLICATION
Outline type code : A-24
(K-puk)
See package details for further information
High Power Drives
DC Motor Control
High Voltage Power Supplies
Designed for use in high power industrial and commercial power electronic circuits and equipment where high
currents are encountered and high reliability is essential.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
1/7
T95-1400
Phase Control Thyristor
KKT951400, November 2006 version
ORDERING INFORMATION
When ordering please refer to device code builder presented below.
Please use the complete part number when ordering, quote or in any future correspondence relating to your
order.
T95-1400-

voltage class (hundreds of volts)
This is standard device, with no dynamic parameters specified and standard accessory set.
Please refer to Electrical Parameters if specific dynamic demands have to be met.
Those information, as well as any other concerning non-standard accessories e.g. custom leads lenght or lead
terminal connector type should be included in the order.
ELECTRICAL PARAMETERS
Voltage ratings
UDRM, URRM
Voltage class
UDSM, URSM
IDRM, IRRM
mA
V
V
04
400
500
06
600
700
08
800
900
10
1000
1100
12
1200
1300
14
1400
1500
16
1600
1700
18
1800
1900
20
2000
2100
22
2200
2300
24
2400
2500
100
dU/dt group codes
du/dt
Group code
V/s
0
no specified value
5
320
6
500
7
1000
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
2/7
T95-1400
Phase Control Thyristor
KKT951400, November 2006 version
Electrical properties
Parameter
Average on-state current
Unit
IT(AV)
A
Test conditions
Value
1400
Tc
°C
75
RMS on-state current
IT(RMS)
A
2200
Surge on-state current
ITSM
A
I2t
kA2s
UTM
V
Treshold voltage
UT(T0)
V
Slope resistance
rT
mΩ
Latching current
Il
mA
Holding current
IH
Case temperature
I2t – value
On-state voltage max.
Tj=125°C, UR=0,8URRM,
tp=10ms
24000
2850
Tj=25°C, ITM=1500A
1,35
0,83
0,214
Tj=25°C, UD=12V
1000
mA
Tj=25°C, UD=12V
250
150
Circuit commutated turn-off
time (typical)
tq
s
Tj=125°C, ITM=250A,
diR/dt=25A/s, du/dt=20V/s,
UD=0,67UDRM, URM=100V
Turn-0n time (typical)
ton
s
ITM=100A, UDM=100V
12
200
Rate of rise of on-state currentrepetitive
di/dt
A/s
Tj=125°C, ITM=3IT(AV),
UD=0,67UDRM, f=50Hz, IGM=1A,
diG/dt=1A/s
Critical rate of raise of off-state
voltage
du/dt
V/s
Tj=125°C, UD=0,67UDRM,
320 – 1000
Gate current to trigger
IGT
mA
Tj=25°C, UD=12V
200
Gate voltage to trigger
UGT
V
Tj=25°C, UD=12V
3
Unit
Test conditions
Value
RthJC
°C/W
two sided, DC
0,021
RthCS
°C/W
two sided
0,010
Tjmin...Tjmax
°C
-40...+125
Tstg
°C
-40...+125
Termal properties
Parameter
Thermal resistance, junction to
case
Thermal resistance, case to
heatsink
Operating junction temperature
Storage temperature
Mechanical properties
Parameter
Unit
Value
Clamping force
FM
kN
22,5 ... 25,0
Weight
m
g
480
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
3/7
T95-1400
Phase Control Thyristor
KKT951400, November 2006 version
Package details
For further package information, please contact Sales & Marketing Department. All dimensions in mm, unless
stated otherwise.
Do not scale.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
4/7
T95-1400
Phase Control Thyristor
KKT951400, November 2006 version
CHARACTERISTICS
PT(AV), [W]
PT(AV), [W]
o
180
o
120
2000
3000
DC
o
90
2500
o
60
1750
o
180
o
o
30
1500
120
o
90
2000
o
60
1250
o
30
1500
1000
1000
750
500
500
250
Q
Q
0
0
0
200
400
600
800
1000
1200
0
1400
IT(AV), [A]
Power loss characteristics. Sinus wave form.
o
TC, [ C]
250
500
750
1000
1250
1500
1750
2000
2250
IT(AV), [A]
Power loss characteristics. Square wave form.
o
TC, [ C]
130
130
120
120
110
110
Q
Q
100
100
90
90
80
80
o
30
o
o
60
90
70
o
120
30
70
o
o
180
o
60
o
90
o
120
o
180
DC
60
60
0
200
400
600
800
1000
1200
Case temperature ratings. Sinus wave form.
50
1400
0
250
500
750
1000
1250
1500
1750
IT(AV), [A]
Case temperature ratings. Square wave form.
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
5/7
2000
2250
IT(AV), [A]
T95-1400
Phase Control Thyristor
KKT951400, November 2006 version
ITSM, [kA]
UTM, V
24
3,0
Tj=Tjmax
22
2,5
Tj=Tjmax
UR=0,8URRM
20
2,0
18
16
1,5
14
1,0
12
10
1
10
100
0,5
100
1000
n
Non-repetitive surge current rating
On-state characteristic
o
Zth(t), C/W
0,1
0,01
0,001
0,0001
0,001
0,01
0,1
1
10000
ITM, A
10
t, s
Transient thermal impedance
Zakłady Elektronowe LAMINA S.A.
Puławska 34
PL-05-500 Piaseczno
POLAND
Tel.: +48-22-7572731
Tel.: +48-22-3989409
Fax.: +48-22-3989407
e-mail: [email protected]
www.lamina.com.pl
6/7
T95-1400
Phase Control Thyristor
KKT951400, November 2006 version
Gate characteristics
iG, mA
iG , A
600
4
UFGM=20V
500
IFGM=4A
3
400
Tj=-40oC
300
2
PGM=16W
200
Tj=+125oC
Tj=+25oC
B
1
R
100
A
0
0
1
2
3
4
UGD=0,25V
0
5
0
uG, V
5
10
15
Gate characteristic.
20
uG , V
A - possible trigger area
B - permitted gate pulse forcing area
R - recommended gate drive load line
Gate characteristic. Possible trigger area.
HEATSINKS
LAMINA S.I. has its own proprietary range of extruded aluminium heatsinks designed to optimise the performance
of our semiconductors with natural and forced air flow. High efficiency water cooled copper heatsinks are also
available.
DEVICE CLAMPS
Disc devices require the correct clamping force to ensure their best operation. LAMINA S.I. offers a wide selection
of clamps to suit all of our manufactured devices.
POWER ASSEMBLY CAPABILITY
LAMINA S.I. provides a support for those customers requiring more than a basic semiconductor and offers
precisely assembled Power Blocks according to factory or customer standards.
