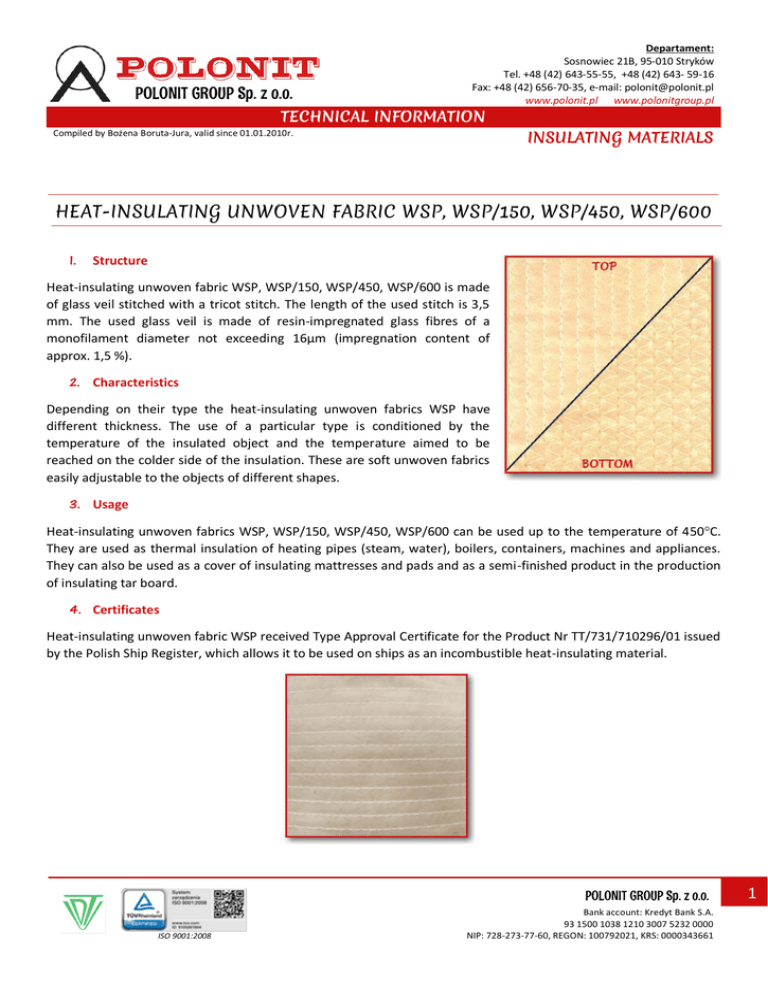

TECHNICAL INFORMATION
INSULATING MATERIALS
Compiled by Bożena Boruta-Jura, valid since 01.01.2010r.
HEAT-INSULATING UNWOVEN FABRIC WSP, WSP/150, WSP/450, WSP/600
1.
Structure
Heat-insulating unwoven fabric WSP, WSP/150, WSP/450, WSP/600 is made
of glass veil stitched with a tricot stitch. The length of the used stitch is 3,5
mm. The used glass veil is made of resin-impregnated glass fibres of a
monofilament diameter not exceeding 16µm (impregnation content of
approx. 1,5 %).
2. Characteristics
Depending on their type the heat-insulating unwoven fabrics WSP have
different thickness. The use of a particular type is conditioned by the
temperature of the insulated object and the temperature aimed to be
reached on the colder side of the insulation. These are soft unwoven fabrics
easily adjustable to the objects of different shapes.
3. Usage
Heat-insulating unwoven fabrics WSP, WSP/150, WSP/450, WSP/600 can be used up to the temperature of 450C.
They are used as thermal insulation of heating pipes (steam, water), boilers, containers, machines and appliances.
They can also be used as a cover of insulating mattresses and pads and as a semi-finished product in the production
of insulating tar board.
4. Certificates
Heat-insulating unwoven fabric WSP received Type Approval Certificate for the Product Nr TT/731/710296/01 issued
by the Polish Ship Register, which allows it to be used on ships as an incombustible heat-insulating material.
POLONIT GROUP Sp. z o.o.
ISO 9001:2008
Bank account: Kredyt Bank S.A.
93 1500 1038 1210 3007 5232 0000
NIP: 728-273-77-60, REGON: 100792021, KRS: 0000343661
1
Departament:
Sosnowiec 21B, 95-010 Stryków
Tel. +48 (42) 643-55-55, +48 (42) 643- 59-16
Fax: +48 (42) 656-70-35, e-mail: [email protected]
www.polonit.pl www.polonitgroup.pl
POLONIT GROUP Sp. z o.o.
TECHNICAL INFORMATION
INSULATING MATERIALS
Compiled by Bożena Boruta-Jura, valid since 01.01.2010r.
5. Characteristics of the unwoven fabric WSP, WSP/150, WSP/450 i WSP/600 according to WT-04/TT-23,
sheet 02
Nr
Characteristic
1.
2.
3.
Width [cm]
Thickness [mm]
Surface mass [g/m2]
Mass decrement after roasting
in 200C/2h, no more than [%]
Heat-conduction factor,
no more than [W/mK]
4.
5.
Requirements
WSP/150
WSP/450
WSP/600
100 ± 2
2,4 ± 0,3
320 ± 45
100 ± 2
1,4 ± 0,2
170 ± 30
100 ± 2
3,3 ± 0,3
450 ± 60
100 ± 2
4,5 ± 0,5
600 ± 70
12,0
10,0
10,0
10,0
0,05
0,05
0,05
0,05
WSP
