POLONIT GROUP Sp. z o.o.
TECHNICAL INFORMATION
NON-ASBESTOS GASKET SHEETS
Valid since 01.01.2010r.

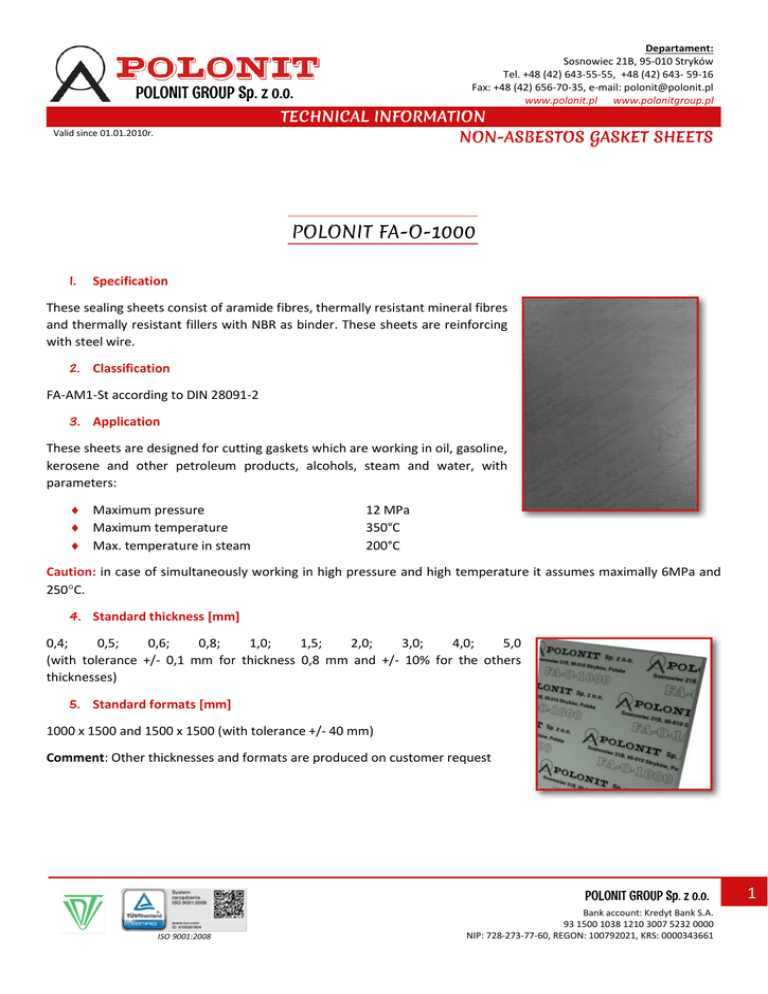

POLONIT FA-O-1000
1.
Specification
These sealing sheets consist of aramide fibres, thermally resistant mineral fibres
and thermally resistant fillers with NBR as binder. These sheets are reinforcing
with steel wire.
2. Classification
FA-AM1-St according to DIN 28091-2
3. Application
These sheets are designed for cutting gaskets which are working in oil, gasoline,
kerosene and other petroleum products, alcohols, steam and water, with
parameters:
 Maximum pressure
 Maximum temperature
 Max. temperature in steam
12 MPa
350°C
200°C
Caution: in case of simultaneously working in high pressure and high temperature it assumes maximally 6MPa and
250C.
4. Standard thickness [mm]
0,4;
0,5;
0,6;
0,8;
1,0;
1,5;
2,0;
3,0;
4,0;
5,0
(with tolerance +/- 0,1 mm for thickness 0,8 mm and +/- 10% for the others
thicknesses)
5. Standard formats [mm]
1000 x 1500 and 1500 x 1500 (with tolerance +/- 40 mm)
Comment: Other thicknesses and formats are produced on customer request
POLONIT GROUP Sp. z o.o.
ISO 9001:2008
Bank account: Kredyt Bank S.A.
93 1500 1038 1210 3007 5232 0000
NIP: 728-273-77-60, REGON: 100792021, KRS: 0000343661
1
Departament:
Sosnowiec 21B, 95-010 Stryków
Tel. +48 (42) 643-55-55, +48 (42) 643- 59-16
Fax: +48 (42) 656-70-35, e-mail: [email protected]
www.polonit.pl www.polonitgroup.pl
POLONIT GROUP Sp. z o.o.
TECHNICAL INFORMATION
NON-ASBESTOS GASKET SHEETS
Valid since 01.01.2010r.
6. Properties according to POLONIT WT – 97/TT-9 sheet 03
No
Parameter
1.
2.
3.
Density
Compressibility
Recovery
4.
Oil ASTM-3, 150C, 5h
5.
Fuel ASTM-B, 23C, 5h
6.
Liquid for radiators, 110C, 5h
7.
Stress retention, 175C, 16h
Method
DIN 28090/2
ASTM F 36 J
ASTM F 36 J
mass increase
thickness increase
mass increase
thickness increase
mass increase
thickness increase
ASTM F 146
DIN 52913
Unit
3
g/cm
%
%
%
%
%
%
%
%
MPa
Value
min 1,7
5-15
min 45
max 15
max 6
max 15
max 6
max 15
max 5
min 30
