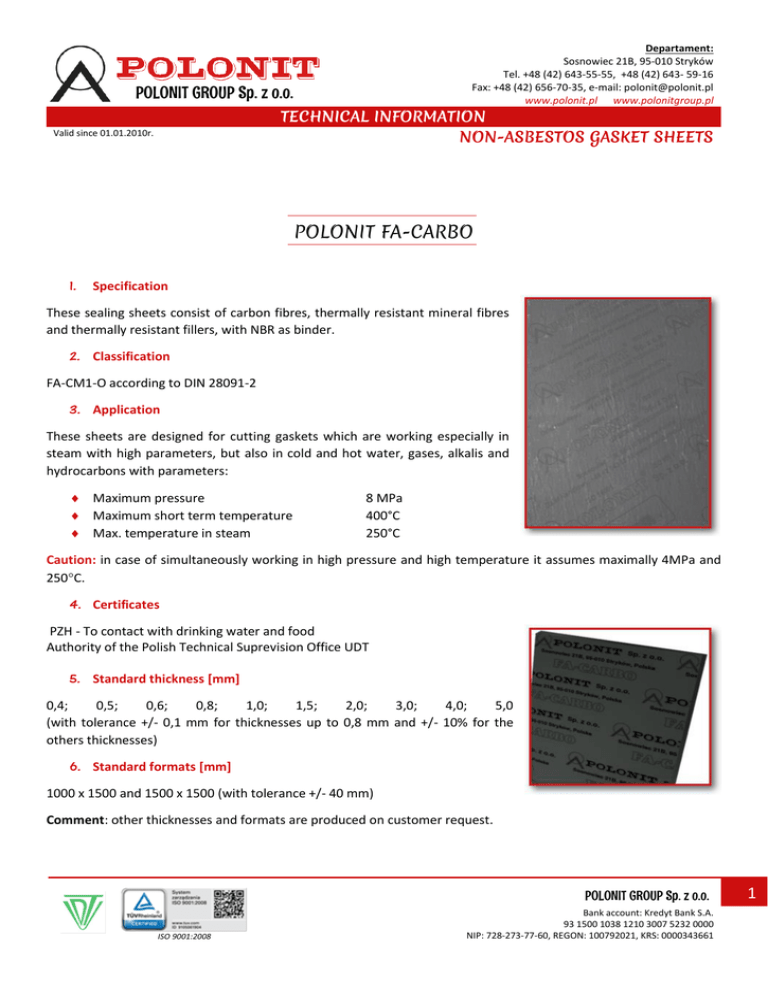

TECHNICAL INFORMATION
NON-ASBESTOS GASKET SHEETS
Valid since 01.01.2010r.
POLONIT FA-CARBO
1.
Specification
These sealing sheets consist of carbon fibres, thermally resistant mineral fibres
and thermally resistant fillers, with NBR as binder.
2. Classification
FA-CM1-O according to DIN 28091-2
3. Application
These sheets are designed for cutting gaskets which are working especially in
steam with high parameters, but also in cold and hot water, gases, alkalis and
hydrocarbons with parameters:
 Maximum pressure
 Maximum short term temperature
 Max. temperature in steam
8 MPa
400°C
250°C
Caution: in case of simultaneously working in high pressure and high temperature it assumes maximally 4MPa and
250C.
4. Certificates
PZH - To contact with drinking water and food
Authority of the Polish Technical Suprevision Office UDT
5. Standard thickness [mm]
0,4;
0,5;
0,6;
0,8;
1,0;
1,5;
2,0;
3,0;
4,0;
5,0
(with tolerance +/- 0,1 mm for thicknesses up to 0,8 mm and +/- 10% for the
others thicknesses)
6. Standard formats [mm]
1000 x 1500 and 1500 x 1500 (with tolerance +/- 40 mm)
Comment: other thicknesses and formats are produced on customer request.
POLONIT GROUP Sp. z o.o.
ISO 9001:2008
Bank account: Kredyt Bank S.A.
93 1500 1038 1210 3007 5232 0000
NIP: 728-273-77-60, REGON: 100792021, KRS: 0000343661
1
Departament:
Sosnowiec 21B, 95-010 Stryków
Tel. +48 (42) 643-55-55, +48 (42) 643- 59-16
Fax: +48 (42) 656-70-35, e-mail: [email protected]
www.polonit.pl www.polonitgroup.pl
POLONIT GROUP Sp. z o.o.
TECHNICAL INFORMATION
NON-ASBESTOS GASKET SHEETS
Valid since 01.01.2010r.
7. Properties according to POLONIT WT – 97/TT-9 sheet 04
No
1.
2.
3.
4.
5.
6.
7.
8.
9.
Parameter
Density
Tensile strength (across grain)
Compressibility
Recovery
mass increase
Oil ASTM-3, 150C, 5h
thickness increase
mass increase
Water, 100C, 5h
thickness increase
mass increase
KOH 40%, 80C, 5h
thickness increase
Gas permeability
Stress retention, 175C, 16h
Method
DIN 28090/2
ASTM F 152
ASTM F 36 J
ASTM F 36 J
ASTM F 146
DIN 3535/4
DIN 52913
Unit
Value
3
g/cm
MPa
%
%
%
%
%
%
%
%
ml/min
MPa
min 1,5
min 9
5-15
min 45
max 15
max 8
max 15
max 5
max 15
max 5
max 2,5
min 25
