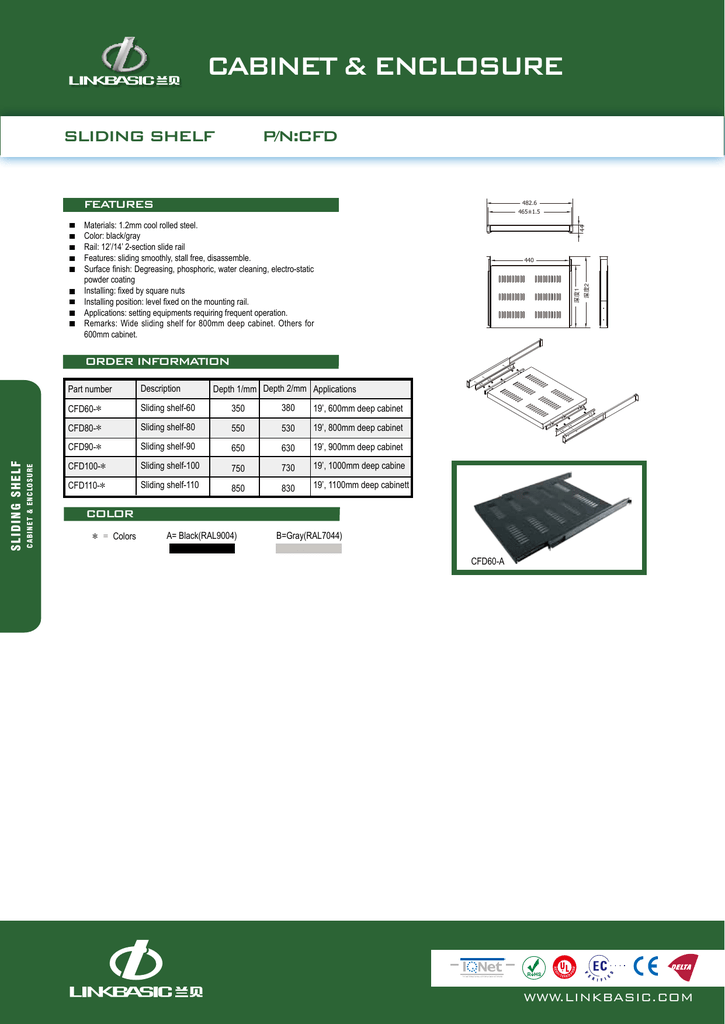

CABINET & ENCLOSURE
SLIDING SHELF
P/N:CFD
FEATURES
482.6
465±1.5
44
Materials: 1.2mm cool rolled steel.
Color: black/gray
Rail: 12’/14’ 2-section slide rail
Features: sliding smoothly, stall free, disassemble.
Surface finish: Degreasing, phosphoric, water cleaning, electro-static
powder coating
Installing: fixed by square nuts
Installing position: level fixed on the mounting rail.
Applications: setting equipments requiring frequent operation.
Remarks: Wide sliding shelf for 800mm deep cabinet. Others for
600mm cabinet.
深度2
深度1
440
C A B I N E T & E N C LO S U R E
SLIDING SHELF
ORDER INFORMATION
Part number
Description
CFD60-*
Sliding shelf-60
350
380
19’, 600mm deep cabinet
CFD80-*
Sliding shelf-80
550
530
19’, 800mm deep cabinet
CFD90-*
Sliding shelf-90
650
630
19’, 900mm deep cabinet
CFD100-*
Sliding shelf-100
750
730
19’, 1000mm deep cabine
CFD110-*
Sliding shelf-110
850
830
19’, 1100mm deep cabinett
Depth 1/mm Depth 2/mm Applications
COLOR
* = Colors
A= Black(RAL9004)
B=Gray(RAL7044)
CFD60-A
