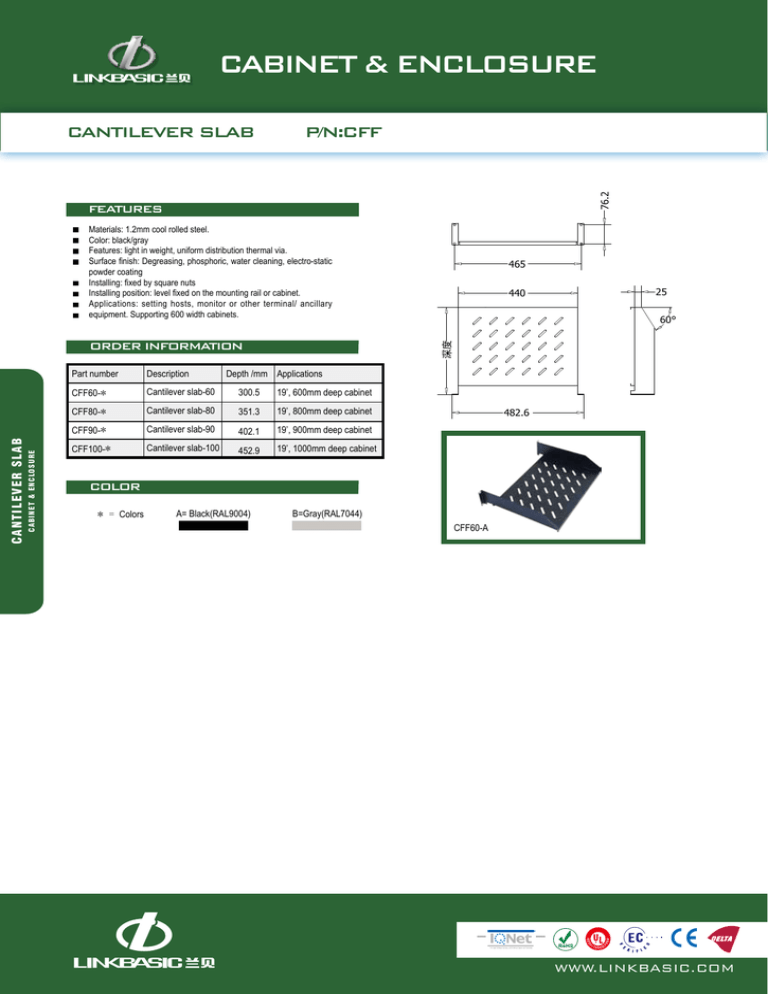

CABINET & ENCLOSURE
P/N:CFF
76.2
CANTILEVER SLAB
FEATURES
Materials: 1.2mm cool rolled steel.
Color: black/gray
Features: light in weight, uniform distribution thermal via.
Surface finish: Degreasing, phosphoric, water cleaning, electro-static
powder coating
Installing: fixed by square nuts
Installing position: level fixed on the mounting rail or cabinet.
Applications: setting hosts, monitor or other terminal/ ancillary
equipment. Supporting 600 width cabinets.
悬臂板
C A B I N E T & E N C LO S U R E
CANTILEVER SL AB
440
25
60°
深度
ORDER INFORMATION
465
Part number
Description
CFF60-*
Cantilever slab-60
300.5
19’, 600mm deep cabinet
CFF80-*
Cantilever slab-80
351.3
19’, 800mm deep cabinet
CFF90-*
Cantilever slab-90
402.1
19’, 900mm deep cabinet
CFF100-*
Cantilever slab-100
452.9
19’, 1000mm deep cabinet
Depth /mm Applications
482.6
COLOR
* = Colors
A= Black(RAL9004)
B=Gray(RAL7044)
CFF60-A
