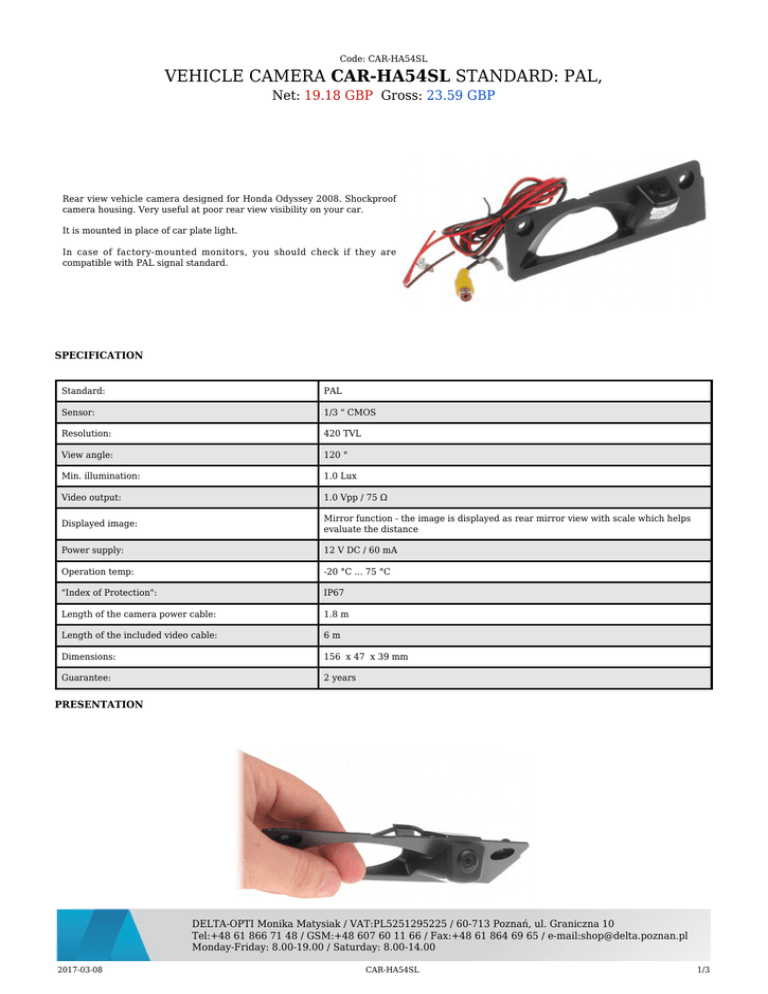

vehicle camera car-ha54sl standard: pal

vehicle camera car-ha54sl standard: pal

Code: CAR-HA54SL
VEHICLE CAMERA CAR-HA54SL STANDARD: PAL,
Net: 19.18 GBP Gross: 23.59 GBP
Rear view vehicle camera designed for Honda Odyssey 2008. Shockproof
camera housing. Very useful at poor rear view visibility on your car.
It is mounted in place of car plate light.
In case of factory-mounted monitors, you should check if they are
compatible with PAL signal standard.
SPECIFICATION
Standard:
PAL
Sensor:
1/3 " CMOS
Resolution:
420 TVL
View angle:
120 °
Min. illumination:
1.0 Lux
Video output:
1.0 Vpp / 75 Ω
Displayed image:
Mirror function - the image is displayed as rear mirror view with scale which helps
evaluate the distance
Power supply:
12 V DC / 60 mA
Operation temp:
-20 °C ... 75 °C
"Index of Protection":
IP67
Length of the camera power cable:
1.8 m
Length of the included video cable:
6m
Dimensions:
156 x 47 x 39 mm
Guarantee:
2 years
PRESENTATION
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-08
CAR-HA54SL
1/3
Camera dimensions:
In the kit:
OUR TESTS
Camera image screenshot (Mirror function).
The image is displayed as rear mirror view with scale which helps evaluate the distance:
OUR OPINIONS
Attention! The device is not intended to continuous work 24/7.
PACKAGE PARAMETERS
Dimensions (L x W x H): 260x65x60 mm Package: Karton Gross Weight: 0.21 kg
