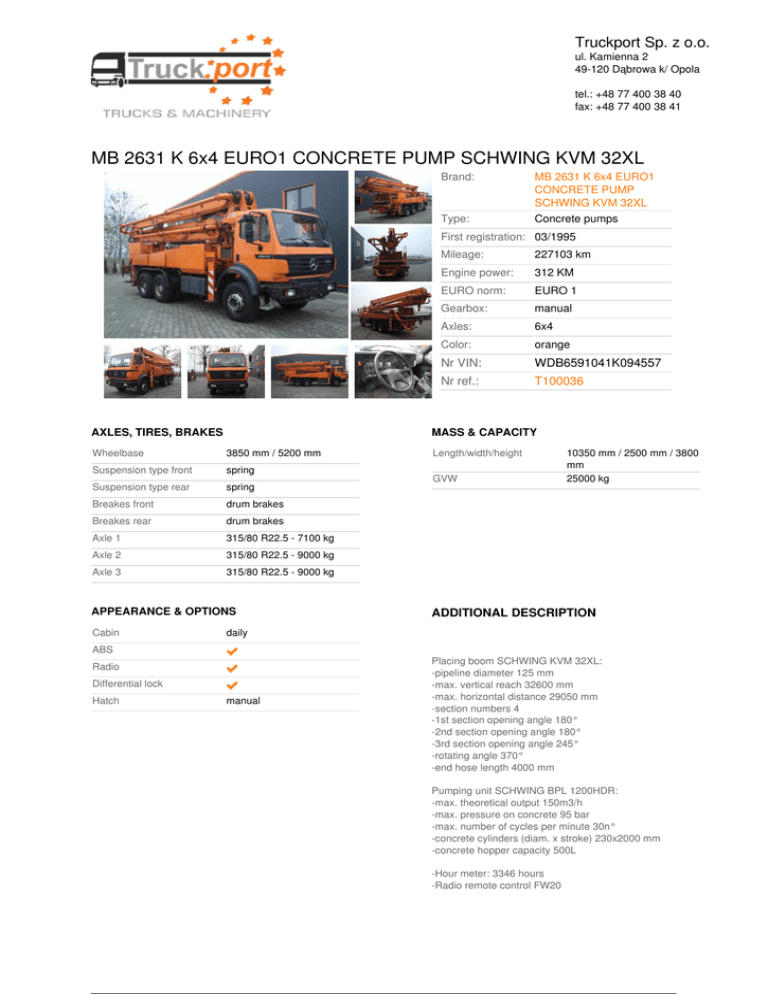

MB 2631 K 6x4 EURO1 CONCRETE PUMP SCHWING

MB 2631 K 6x4 EURO1 CONCRETE PUMP SCHWING

Truckport Sp. z o.o.
ul. Kamienna 2
49-120 Dąbrowa k/ Opola
tel.: +48 77 400 38 40
fax: +48 77 400 38 41
MB 2631 K 6x4 EURO1 CONCRETE PUMP SCHWING KVM 32XL
Brand:
MB 2631 K 6x4 EURO1
CONCRETE PUMP
SCHWING KVM 32XL
Type:
Concrete pumps
First registration: 03/1995
AXLES, TIRES, BRAKES
3850 mm / 5200 mm
Suspension type front
spring
Suspension type rear
spring
Breakes front
drum brakes
Breakes rear
drum brakes
Axle 1
315/80 R22.5 - 7100 kg
Axle 2
315/80 R22.5 - 9000 kg
Axle 3
315/80 R22.5 - 9000 kg
APPEARANCE & OPTIONS
Engine power:
312 KM
EURO norm:
EURO 1
Gearbox:
manual
Axles:
6x4
Color:
orange
Nr VIN:
WDB6591041K094557
Nr ref.:
T100036
Length/width/height
GVW
10350 mm / 2500 mm / 3800
mm
25000 kg
ADDITIONAL DESCRIPTION
daily
ABS
Radio
Differential lock
Hatch
227103 km
MASS & CAPACITY
Wheelbase
Cabin
Mileage:
manual
Placing boom SCHWING KVM 32XL:
-pipeline diameter 125 mm
-max. vertical reach 32600 mm
-max. horizontal distance 29050 mm
-section numbers 4
-1st section opening angle 180°
-2nd section opening angle 180°
-3rd section opening angle 245°
-rotating angle 370°
-end hose length 4000 mm
Pumping unit SCHWING BPL 1200HDR:
-max. theoretical output 150m3/h
-max. pressure on concrete 95 bar
-max. number of cycles per minute 30n°
-concrete cylinders (diam. x stroke) 230x2000 mm
-concrete hopper capacity 500L
-Hour meter: 3346 hours
-Radio remote control FW20
FEEL FREE TO CALL US ANYTIME
WE ARE AVAILABLE 24/h !!!
tel. +48 77 400 38 40
www.truckport.pl
e-mail: [email protected]
Niniejszy prospekt reklamowy ma charakter informacyjny i nie stanowi oferty
handlowej w rozumieniu art. 66 §1 Kodeksu Cywilnego.
Powered by TCPDF (www.tcpdf.org)
