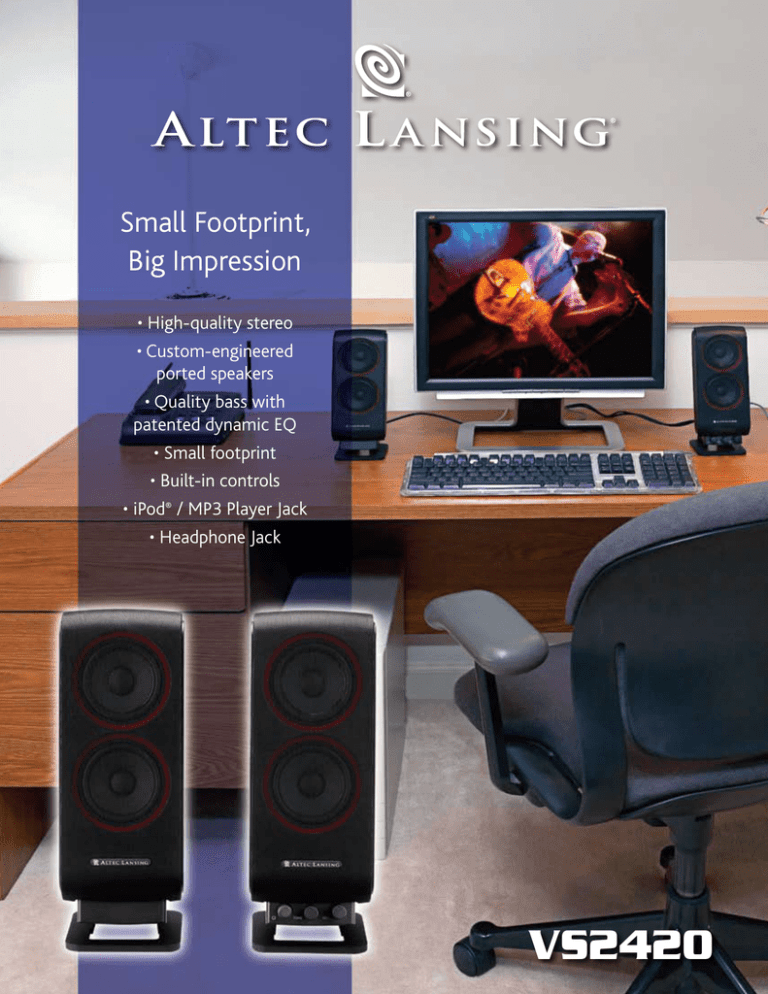

VS2420 - altecLansing

Small Footprint,
Big Impression
• High-quality stereo
• Custom-engineered
ported speakers
• Quality bass with
patented dynamic EQ
• Small footprint
• Built-in controls
• iPod® / MP3 Player Jack
• Headphone Jack
VS2420
SYSTEM SPECIFICATIONS†:
RMS Power
Peak Power
WATTS
WATTS
8
16
AUX
S m a l l F o ot p r i n t, B i g I m p r e ss i o n
It’s a compact, value-priced sound system. And yet the Altec Lansing VS2420 packs an incredible wallop.
Delivering crisp, clean sound from custom-engineered dual, full-range 2.5” speakers. You get surprising
highs, mid-range and lows from efficient little satellites that take up a minimum amount of space on
your desk. Controls are right on the front of the speaker. A handy headphone jack is right nearby, too.
And there’s even a secondary input jack that lets you connect your MP3 or CD player while still linked
to your PC.
– Sound pressure level (SPL): 93 dB
– Total continuous power: 8 Watts RMS
– Peak power: 16 Watts
– Speakers: 4 Watts/channel @ 4 ohms @ 10% THD @ 85 Hz - 20 kHz
2 Channels Loaded
– System response: 85 Hz - 20 kHz (-10 dB)
– Signal to noise ratio @ 1 KHZ INPUT:
> 70 dB
– Drivers (per satellite):
One 2.5” full range driver and
one 2.5” passive radiator
– Dimensions:
3.5” (W) x 4.1 ” (D) x 9.5 ” (H)
88 mm (W) x 105 mm (D) x 242 mm (H)
PACKAGING SPECIFICATIONS:
MASTER CARTON QUANTITY: 4
MASTER CARTON DIMENSIONS:
15.75” (W) x 10.04” (D) x 10.55” (H)
400 mm (W) x 255 mm (D) x 268 mm (H)
DISPLAY CARTON DIMENSIONS:
9.45” (W) x 3.74” (D) x 9.84” (H)
240 mm (W) x 95 mm (D) x 250 mm (H)
MASTER CARTON WEIGHT:
15.87 lbs. 7.2 kg
DISPLAY CARTON WEIGHT:
3.64 lbs. 1.65 kg
Specifications subject to change without notice. 1-year
limited warranty (2 years in Europe and Asia; see inside
for details.)
† Power rating conforms to FTC Amplifier Rule #16
C.F.R. Part 432.
*Requires add-on Console Gaming Y-Adapter, not
included. Available for purchase at
www.alteclansing.com.
© 2008 Plantronics, Inc. All rights reserved.
VS2420
ALTEC, ALTEC LANSING, the Altec Lansing logo, and swirl
design are trademarks or registered trademarks of Altec
Lansing, a division of Plantronics, Inc.
Plantronics, the logo design and Sound Innovation are
trademarks or registered trademarks of Plantronics, Inc.
iPod is a trademark of Apple, Inc., registered in the U.S.
and other countries.
High-quality stereo
Ultra convenience is built-in
All other trademarks appearing herein are the property of
their respective owners.
Custom-engineered dual full-range 2.5” ported
Volume and tone controls are at your fingertips.
Designed by Altec Lansing in the USA. Made in China.
speakers deliver clean, full-spectrum sound with
outstanding accuracy.
iPod / MP3 Player Jack
HEADQUARTERS
535 Rte. 6 & 209. Milford, PA 18337-0277, USA
Tel: 800-ALTEC-88. 570-296-4434.
Fax: 570-296-6887
Connect your iPod, MP3 player, or CD player at the
Quality bass
same time as your computer.
Patented dynamic EQ technology delivers quality
bass without a subwoofer.
Headphone Jack
02/08
US
For private listening.
Small footprint
Compact satellite speaker design leaves plenty of
room on your desktop.
R02
