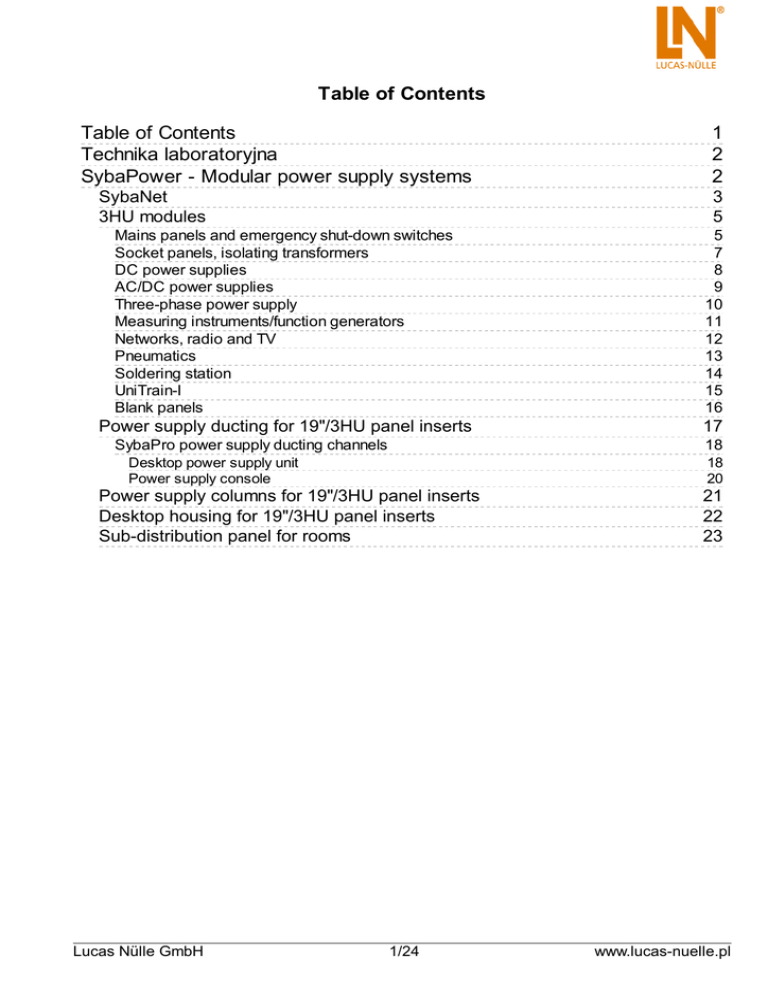

Table of Contents
Table of Contents
Technika laboratoryjna
SybaPower - Modular power supply systems
SybaNet
3HU modules
1
2
2
3
5
Mains panels and emergency shut-down switches
Socket panels, isolating transformers
DC power supplies
AC/DC power supplies
Three-phase power supply
Measuring instruments/function generators
Networks, radio and TV
Pneumatics
Soldering station
UniTrain-I
Blank panels
5
7
8
9
10
11
12
13
14
15
16
Power supply ducting for 19"/3HU panel inserts
17
SybaPro power supply ducting channels
18
Desktop power supply unit
Power supply console
18
20
Power supply columns for 19"/3HU panel inserts
Desktop housing for 19"/3HU panel inserts
Sub-distribution panel for rooms
Lucas Nülle GmbH
1/24
21
22
23
www.lucas-nuelle.pl
Technika laboratoryjna
Well designed laboratory concepts for education and training
SybaLab is a logical supplement to the Lucas-Nülle product range and has been specifically developed to
accommodate complex tasks. The SybaLab system guarantees you innovative, user-oriented solutions.
Designed with the utmost flexibility in mind, SybaLab is available in countless specific configurations and can be
adapted to any individual needs.
The laboratory system with its high-quality workplaces, power supply conforming to the international 3 HU/19"
standard and providing for intra lab networking rounds off the range of fittings and equipment for fully equipped
technological labs.
SybaLab is synonymous with accomplished design, combining aesthetics, functionality, flexibility, ergonomics
and quality.
SybaPower - Modular power supply systems
SybaPower - Modular power supply systems
SybaPower is a highly flexible 19" equipment system, which can be integrated with any items in the SybaLab
lab furniture ranges. Equipment with a wide variety of functions, covering multiple applications and designed for
the 19" panel insert system that is standard across the globe, allow for customised set-ups to be assembled.
SybaPower makes no compromises with regard to safety. Modules adapted for a variety of applied situations
are available for the protection of people and cables.
SybaPower is a byword for uncompromising quality, robust, reliable design and efficient, easy and logical
assembly.
Lucas Nülle GmbH
2/24
www.lucas-nuelle.pl
SybaNet
SybaNet
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
1 SybaNet 3-phase power 400V/50Hz, 3-deck-switch, all-current
FCCB Type B, Emer.OFF, motor protect., undervoltage release,
54PU
ST8100-1L
1
2 SybaNet AC power 230V/50Hz, 3-deck-switch, all-current FCCB
Type B, Emer. OFF, 54 PU
ST8100-1K
1
3 SybaNet control unit, touch panel PC including SybaNet laboratory
manager software, 42 PU
ST8100-1F
1
Bestell-Nr.
Anz.
Additionally recommended accessories for installation:
Additionally recommended accessories for installation:
Pos.
nazwa produktu
4 Patch cable Cat5E 1m, grey
Lucas Nülle GmbH
LM9070
3/24
1
www.lucas-nuelle.pl
5 Patch cable Cat5E 2 m, grey
LM9071
1
6 Patch cable Cat5E 5m, grey
LM9072
1
7 Patch cable Cat5E 5m, grey
LM9073
1
8 Patch cable Cat5E 10m grey
LM9074
1
9 Patch cable Cat5E 15m grey
LM9076
1
10 Patch cable Cat5E 20m grey
LM9078
1
11
ST8100-2B
1
Bestell-Nr.
Anz.
ST8100-2A
1
Optional bieten wir an:
Pos.
nazwa produktu
12 SybaNet Laboratory Manager (Software)
Lucas Nülle GmbH
4/24
www.lucas-nuelle.pl
3HU modules
3HU modules
These 3HU modules can be integrated into any suitable 3HU power supply ducting or piles that conform to the
19" pattern defined in DIN 41494. The modular design of the system allows for compact equipment set-ups in
any power range for any application.
Mains panels and emergency shut-down switches
Mains panels and emergency shut-down switches
SybaPower mains panels for switching the central mains distribution in 3HU power ducts on or off whilst
providing protection for circuits. All 3HU modules are wired up ready to work as supplied from the factory and
can be assembled into any position on a 3 HU power channel.
Lucas Nülle GmbH
5/24
www.lucas-nuelle.pl
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
13 Emergency shut-off button, 12PU
ST8008-3E
1
14 AC power panel, 230V/16A, RCD, shut-off, key switch, 42PU
ST8008-3A
1
15 Three-phase power supply panel 400V/16A, elcb, emergency off,
key switch, 54PU
ST8008-3B
1
16 AC power panel, 230V/16A, RCD, key switch, 24PU
ST8008-3C
1
17 Pole sieciowe, prąd trójfazowy, 400 V/16 A, wyłącznik różnicowoprądowy, wyłącznik z kluczem 42 TE
ST8008-3D
1
18 3-phase power panel, 400V/16A with type-B RCD for AC/DC, patch
panel, 54PU
ST8008-6B
1
19 AC power panel, 230V/16A with type-B RCD for AC/DC, 25A/30mA,
30PU
ST8008-6C
1
20 AC power panel, 230V/16A with type-B RCD for AC/DC, 25A/30mA,
42PU
ST8008-6G
1
21 3-phase panel, 400V/16Awith type-B RCD for AC/DC, 25A/30mA,
42PU
ST8008-6D
1
22 AC output, 3x4mm safety sockets, indicator light, 12PU
ST8008-3F
1
23 Three-phase output 5x4mm safety sockets, 3 indicator lights,
12PU
ST8008-3G
1
24 AC output, 3x4mm safety sockets, indicator light, switches 18PU
ST8008-3Z
1
25 Wyjście prądu trójfazowego, bezpieczne gniazda 5 x 4 mm, 3
kontrolki świetlne, włączane, 18 TE
ST8008-3Y
1
Lucas Nülle GmbH
6/24
www.lucas-nuelle.pl
26 Connection panel 18PU
ST8008-6A
1
Socket panels, isolating transformers
Socket panels, isolating transformers
Socket panels to provide power to mains-powered equipment and loads. All sockets are wired in parallel and
can be supplied with plugs made to local standards, e.g. USA, France or Switzerland.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
27 Pole gniazd z 4 gniazdami z uziemieniem, 24 TE
ST8008-3J
1
28 Socket panel unit, 2 earth pin sockets, 12PU
ST8008-3X
1
29 Side by side Socket panel unit, 3 sockets 42PU
ST8008-8G
1
30 Side by side Socket panel unit, 4 sockets 54PU
ST8008-8H
1
31 Side by side Socket panel unit, 5 sockets 66PU
ST8008-8J
1
32 Isolating transformer unit 230V/1A, 24PU
ST8008-3Q
1
Lucas Nülle GmbH
7/24
www.lucas-nuelle.pl
33 Computer plug board, 2 socket outlets with earth contact, 30PU
ST8008-4X
1
34 CEE socket, 400V/16A, 18PU
ST8008-3H
1
35 Socket panel unit, 2 earth pin sockets, 30PU, belgian
ST8008-6HB
1
DC power supplies
DC power supplies
SybaPower DC power supplies to supply power for equipment from the lab and test panels.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
36 DC power supply, 5V/5A (switched mode power supply), 24PU
ST8008-6L
1
37 DC power supply, 24V/2.5A (switched mode power supply), 24PU
ST8008-3U
1
38 DC power supply, +15V/1.5A, -15V/0.5A, 5V/3A, 24PU
ST8008-3V
1
39 Power supply, DC ±15V, ±5V, 42PU
ST8008-3W
1
40 Zasilacz prądu stałego 0...250 V/10 A, 210 V/6 A, stabilizowany, 48
TE
ST8008-4F
1
Lucas Nülle GmbH
8/24
www.lucas-nuelle.pl
41 DC constant power supply 2x 0...30V/0...10A w/dig. display, blue
illum. 42 PU
ST8100-4C
1
42 DC constant power supply 2x 0...15V/0...10A w/dig. display, blue
illum. 42 PU
ST8100-4D
1
43 DC power supply, 24V/6A (switched mode power supply), 30PU
ST8008-4T
1
44 Switching power supply for automotive courses, 13.5V/36A, 42PU
ST8008-4W
1
AC/DC power supplies
AC/DC power supplies
SybaPower AC/DC power supplies to supply power for equipment from the lab and test panels.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
45 Adjustable AC/DC power supply 0-250V/2A; 0-14V/12A; 0-27V/6A,
42PU
ST8008-4A
1
46 Adjustable AC power supply, 0...20...250V/2A, 0...24V/12V/2A, 42PU
ST8008-4E
1
47 Adjustable AC/DC power supply, 0-250V/1A, 48PU
ST8008-4K
1
Lucas Nülle GmbH
9/24
www.lucas-nuelle.pl
48 Multi-function power supply: DC, AC, 3-phase,function generator,
60PU
ST8008-6K
1
Three-phase power supply
Three-phase power supply
SybaPower three-phase power-supply to provide power to devices connected to laboratory and test panels.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
49 Low voltage 3-phase power supply, 23/40V, 50Hz, 42PU
ST8008-3L
1
50 Adjustable 3-phase power supply, 0-400V/8A, 60PU
ST8008-4M
1
51 Zasilacz regulowany 3-fazowy, 0-450 V/2 A, 72PU
ST8008-4S
1
Lucas Nülle GmbH
10/24
www.lucas-nuelle.pl
Measuring instruments/function generators
Measuring instruments/function generators
SybaPower measuring instruments and function generators are ideal for use in laboratories thanks to a modular
design that matches the 3HU panel system.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
52 Digital multimeter, RMS, 54PU
ST8008-4J
1
53 3-phase meter
ST8008-4L
1
54 DDS sweep function and pulse generator, 0-3MHz/0-20Vpp, with
USB, 48PU
ST8008-4G
1
55 Multi-function power supply: DC, AC, 3-phase,function generator,
60PU
ST8008-6K
1
56 Continuity tester for optical or acoustic connection testing
ST8008-4Y
1
Lucas Nülle GmbH
11/24
www.lucas-nuelle.pl
Networks, radio and TV
Networks, radio and TV
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
57 RJ45 double socket for ISDN or PC networking, 18PU
ST8008-3M
1
58 Output panel with RTV socket and 2 BNC sockets, 18PU
ST8008-3N
1
59 Laboratory terminal unit, 2x BNC, 10 x 4mm safety sockets, 18PU
ST8008-3K
1
60 Patch-panel, 8 port, CAT 5e
ST8008-4U
1
61 Interface unit, 2x USB 2.0, PS/2, audio connections, COM 1, 36PU
ST8008-4P
1
62 Interface unit, 6x USB 2.0, 30PU
ST8008-4R
1
63 RJ45 patch panel for networking PCs, 18PU
ST8008-4N
1
64 Multimedia PC port panel, 2x VGA, 2x HDMI, 2x USB, 4x audio, 36
PU
ST8008-4Z
1
Lucas Nülle GmbH
12/24
www.lucas-nuelle.pl
Pneumatics
Pneumatics
3HU modules with pressure measuring equipment allow vacuum pressures, atmospheric pressure and pressure
over atmospheric pressure to be measured with precision.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
65 Pneumatic system, with pressure regulator, 24 PU
ST8008-3S
1
66 Compressed air supply, 12PU
ST8008-3T
1
Lucas Nülle GmbH
13/24
www.lucas-nuelle.pl
Soldering station
Soldering station
The soldering station is particularly well designed for the soldering of surface-mount components. Its power
rating of 80W allows for incredible levels of performance. The temperature of the soldering tip is regulated
electronically. The maximum temperature is 450°C with a tolerance of ±2% from the set value.
List of articles:
Pos.
nazwa produktu
67 Temptronic soldering station, 24V/50W, continuously adjustable,
30PU
Lucas Nülle GmbH
14/24
Bestell-Nr.
Anz.
ST8008-4V
1
www.lucas-nuelle.pl
UniTrain-I
UniTrain-I
The UniTrain-I Interface is an intelligent interface for measurement and control that can be inserted into 3HU
housings. It provides analog and digital inputs and outputs for measurement and control, which can be used
along with computer-based virtual instruments (VIs) to make up high-quality measuring instruments and
electrical sources. Control and display of the virtual instruments requires a PC.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
68 UniTrain-I Interface, 60PU
ST8008-9A
1
69 UniTrain-I power supply, 24PU
ST8008-9C
1
70 UniTrain-I power supply including spare supply for 3-HU 3-phase
generator
ST8008-9D
1
Lucas Nülle GmbH
15/24
www.lucas-nuelle.pl
Blank panels
Blank panels
These blank panels are made of 3 mm hard aluminium, powder coated on both sides with full colour, photorealistic scratchproof printing. Special cross-head screws are supplied for assembly, which can also be used for
pulling the panels out. An earthing electrode is welded to the back of the panel. All the panels are of the
standard 3-HU height = 128.5 mm.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
71 Blank panel, 6PU
ST8008-5G
1
72 Blank panel, 12PU
ST8008-5A
1
73 Puste pole 18 TE
ST8008-5B
1
74 Blank panel, 24PU
ST8008-5C
1
75 Blank panel, 30PU
ST8008-5D
1
76 Blank panel, 42PU
ST8008-5E
1
Lucas Nülle GmbH
16/24
www.lucas-nuelle.pl
77 Blank panel, 48PU
ST8008-5F
1
78 Blank panel, 78PU
ST8008-5L
1
Power supply ducting for 19"/3HU panel inserts
Power supply ducting for 19"/3HU panel inserts
Standardisation ensures compatibility. 3HU modules can be integrated into any suitable 3HU power supply
ducting or columns that conform to the 19" pattern defined in DIN 41494. The ability to combine with equipment
from other training systems means that all needs can be met.
Lucas Nülle GmbH
17/24
www.lucas-nuelle.pl
SybaPro power supply ducting channels
SybaPro power supply ducting channels
Power supply ducts for the SybaPro system to accommodate 19''/3HU inserts and panels. The channels can be
used in desktop or console mode. If experiment panel frames are not installed, the power supply channel needs
to be secured to a bench with a 130 mm aluminium profile extension.
Desktop power supply unit
Desktop power supply unit
Lucas Nülle GmbH
18/24
www.lucas-nuelle.pl
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
79 Power supply duct for 3HU inserts, to match 1200mm SybaPro
tables, 216 PU
ST8033-2B
1
80 Power supply duct for 3HU inserts, to match 1500mm SybaPro
tables, 276 PU
ST8033-2A
1
81 Power supply duct for 3HU inserts, to match 1600mm SybaPro
tables, 294 PU
ST8033-2C
1
82 Power supply duct for 3HU inserts, to match 1800mm SybaPro
tables, 336 PU
ST8033-2E
1
83 Power supply duct for 3HU inserts, to match 2000mm SybaPro
tables, 378 PU
ST8033-2G
1
84 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1200-m
ST8033-3A
1
85 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1500-m
ST8033-3B
1
86 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1600-m
ST8033-3C
1
87 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1800-m
ST8033-3D
1
88 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 2000-m
ST8033-3E
1
89 Ergo 45° (table-top format) 3-HU power supply duct for mobile
experim
ST8033-3F
1
90 Aluminium profile extension, 130mm (x 2) for SybaPro lab tables
with power duct
ST8003-3D
1
Lucas Nülle GmbH
19/24
www.lucas-nuelle.pl
Power supply console
Power supply console
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
91 Cockpit power supply duct for 3HU inserts to match 1200mm
SybaPro tables, 216 PU
ST8033-1B
1
92 Cockpit power supply duct for 3HU inserts to match 1500mm
SybaPro tables, 276 PU
ST8033-1A
1
93 Cockpit power supply duct for 3HU inserts to match 1600mm
SybaPro tables, 294 PU
ST8033-1C
1
94 Cockpit power supply duct for 3HU inserts to match 1800mm
SybaPro tables, 336 PU
ST8033-1E
1
95 Cockpit power supply duct for 3HU inserts to match 2000mm
SybaPro tables, 378 PU
ST8033-1G
1
96 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1200-m
ST8033-3A
1
Lucas Nülle GmbH
20/24
www.lucas-nuelle.pl
97 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1500-m
ST8033-3B
1
98 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1600-m
ST8033-3C
1
99 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 1800-m
ST8033-3D
1
100 Ergo 45° (table-top or console format) 3-HU power supply duct for
SybaPro 2000-m
ST8033-3E
1
101 Ergo 45° (table-top format) 3-HU power supply duct for mobile
experim
ST8033-3F
1
Power supply columns for 19"/3HU panel inserts
Power supply columns for 19"/3HU panel inserts
Power supply columns to accommodate 19''/3HU inserts and panels. These power supply columns are installed
to the left of the panel and provide the necessary power for exercises on wiring installation. Electrical circuit
breakers ensure the requisite safety during experiments. The advantage of the columns over power supply
consoles is that the voltage can be supplied from the same height as the panels themselves.
Lucas Nülle GmbH
21/24
www.lucas-nuelle.pl
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
102 Power supply column, 3x3HU, width 54PU
ST8008-1P
1
103 Power supply tower for 19' 3HU inserts
ST8008-1Q
1
Desktop housing for 19"/3HU panel inserts
Desktop housing for 19"/3HU panel inserts
Table-top housing to accommodate 19"/3HU modules. This means that SybaPower 3HU modules can be used
for both mobile and desktop systems.
List of articles:
Pos.
nazwa produktu
Bestell-Nr.
Anz.
ST8008-7A
1
105 Table-top housing for 30 PU inserts including low-power connector ST8008-7C
1
106 Table-top housing for 42 PU inserts including low-power connector ST8008-7B
1
107 Table-top housing for 48PU insert including low-power connector
1
104 Table-top housing for 24PU insert including low-power connector
Lucas Nülle GmbH
22/24
ST8008-7D
www.lucas-nuelle.pl
108 Table-top housing for 60 PU inserts incl. connection for nonheating components
ST8008-7K
1
109 Table-top housing for 48PU insert with CEE three-phase connector
ST8008-7E
1
110 Obudowa stołowa do wkładek 72PU z 3-fazowym złączem CEE
ST8008-7F
1
Sub-distribution panel for rooms
Sub-distribution panel for rooms
The standard power distribution panel consists of a basic frame with all the necessary electrical components
such as main isolating switches, emergency shut-down mechanism, RCDs, line circuit breakers, controls and
contactors for individual workgroups. The distributor can supply multiple workgroups with electrical power
independently.
The distribution box is built into a free-standing under-table cabinet provided for this purpose.
As an alternative, it is possible to configure the distribution panel for wall mounting.
All the wires leading to the unit need to be installed by the builders.
List of articles:
Pos.
nazwa produktu
111 Power distribution unit, for 4 groups
Lucas Nülle GmbH
23/24
Bestell-Nr.
Anz.
ST8509-1B
1
www.lucas-nuelle.pl
112 Power distribution unit, for 8 groups
ST8509-1D
1
113 UV, 8 Plätze, 3polig, CEE, RJ45, 4xSteckdose, 8 E/A,
ST8509-2A
1
Lucas Nülle GmbH
24/24
www.lucas-nuelle.pl
