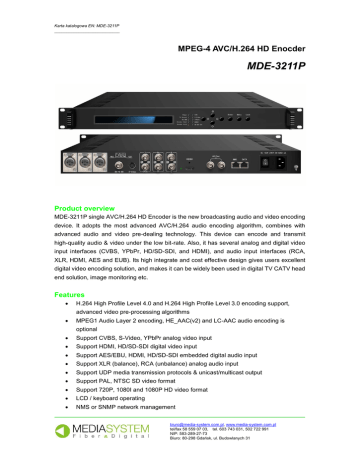

MDE-3211P - Media

Karta katalogowa EN: MDE-3211P
___________________________
MPEG-4 AVC/H.264 HD Enocder
MDE-3211P
Product overview
MDE-3211P single AVC/H.264 HD Encoder is the new broadcasting audio and video encoding
device. It adopts the most advanced AVC/H.264 audio encoding algorithm, combines with
advanced audio and video pre-dealing technology. This device can encode and transmit
high-quality audio & video under the low bit-rate. Also, it has several analog and digital video
input interfaces (CVBS, YPbPr, HD/SD-SDI, and HDMI), and audio input interfaces (RCA,
XLR, HDMI, AES and EUB). Its high integrate and cost effective design gives users excellent
digital video encoding solution, and makes it can be widely been used in digital TV CATV head
end solution, image monitoring etc.
Features

H.264 High Profile Level 4.0 and H.264 High Profile Level 3.0 encoding support,
advanced video pre-processing algorithms

MPEG1 Audio Layer 2 encoding, HE_AAC(v2) and LC-AAC audio encoding is
optional

Support CVBS, S-Video, YPbPr analog video input

Support HDMI, HD/SD-SDI digital video input

Support AES/EBU, HDMI, HD/SD-SDI embedded digital audio input

Support XLR (balance), RCA (unbalance) analog audio input

Support UDP media transmission protocols & unicast/multicast output

Support PAL, NTSC SD video format

Support 720P, 1080I and 1080P HD video format

LCD / keyboard operating

NMS or SNMP network management
_______________________________________________________________________
[email protected], www.media-system.com.pl
tel/fax 58 559 07 03, tel. 603 743 031, 502 722 991
NIP: 583-289-27-73
Biuro: 80-298 Gdańsk, ul. Budowlanych 31
Karta katalogowa EN: MDE-3211P
___________________________
Specification
1 × Analog CVBS, BNC interface
1 ×S-Video input, BNC interface
1 × YPbPr video input, BNC interface
Video input
1xHD/SD-SDI, BNC interface
1xHDMI interface
Analog stereo audio(balanced), XLR interface
Analog stereo audio(unbalanced), BNC interface
Audio input
AES / EBU digital audio, XLR interface
HD/SD-SDI embedded audio
1920x [email protected], 1920 x 1080p@50Hz
Resolution
1920×1080i @59.94Hz, 1920×1080i @50Hz
1280×[email protected], 1280×720p @50Hz
720×480i @59.94Hz, 720×576i @50Hz
Video
Encoding
Bit-rate
Rate Control
GOP Structure
Advanced Pretreatment
Encoding
Audio
AVC/H.264 High Profile Level 4.0 for HD
AVC/H.264 High Profile Level 3.0 for SD
0.8Mbps~20Mbps
CBR/VBR
IBBP
De-interlacing, noise reduction, sharpening
MPEG-1 Layer 2, (HE-AAC V2 and LC-AAC are optional)
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
32kbps~384kbps
2×ASI outputs, BNC interface
Stream output
SPTS over UDP/RTP, 10/100Base-T Ethernet interface
(UDP/RTP unicast / multicast)
System function
Dimensions
Approx weight
General
LCD/keyboard operating, NMS or SNMP support
Ethernet software upgrade
482mm×455mm×44.5mm(W × D × H)
4,5kg
Temperature range
0~45℃(Operation), -20~80℃(Storage)
Power requirement
AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz
Power consumption
17,6W
