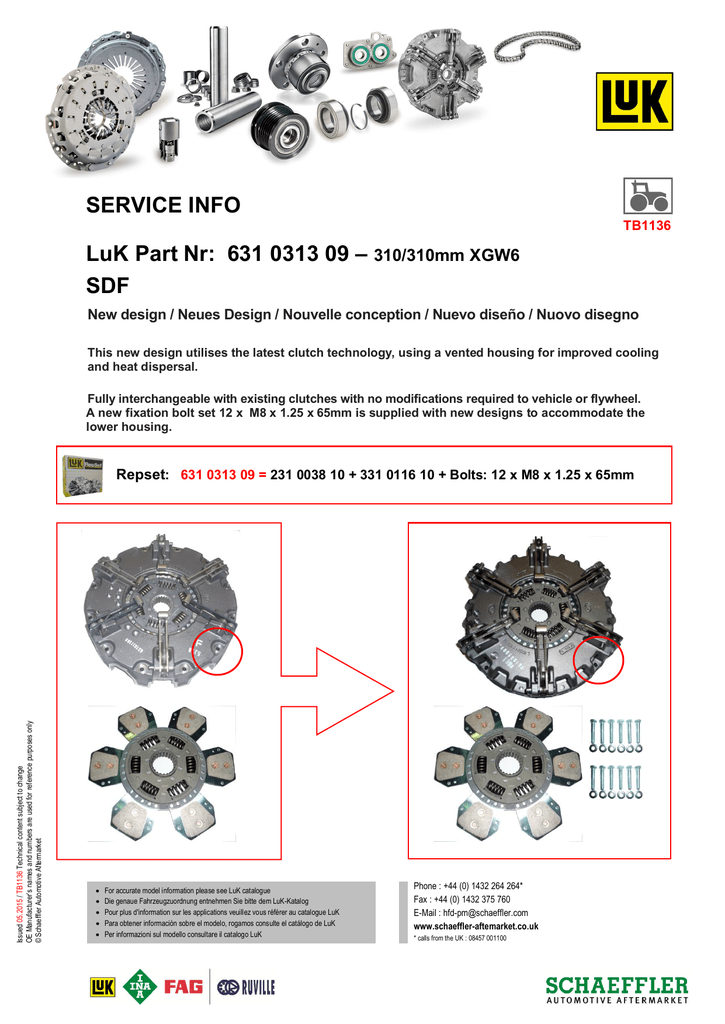

SERVICE INFO
TB1136
LuK Part Nr: 631 0313 09 – 310/310mm XGW6
SDF
New design / Neues Design / Nouvelle conception / Nuevo diseño / Nuovo disegno
This new design utilises the latest clutch technology, using a vented housing for improved cooling
and heat dispersal.
Fully interchangeable with existing clutches with no modifications required to vehicle or flywheel.
A new fixation bolt set 12 x M8 x 1.25 x 65mm is supplied with new designs to accommodate the
lower housing.
Issued 05.2015 / TB1136 Technical content subject to change
OE Manufacturer’s names and numbers are used for reference purposes only
© Schaeffler Automotive Aftermarket
Repset: 631 0313 09 = 231 0038 10 + 331 0116 10 + Bolts: 12 x M8 x 1.25 x 65mm
·
·
·
·
·
For accurate model information please see LuK catalogue
Die genaue Fahrzeugzuordnung entnehmen Sie bitte dem LuK-Katalog
Pour plus d'information sur les applications veuillez vous référer au catalogue LuK
Para obtener información sobre el modelo, rogamos consulte el catálogo de LuK
Per informazioni sul modello consultare il catalogo LuK
