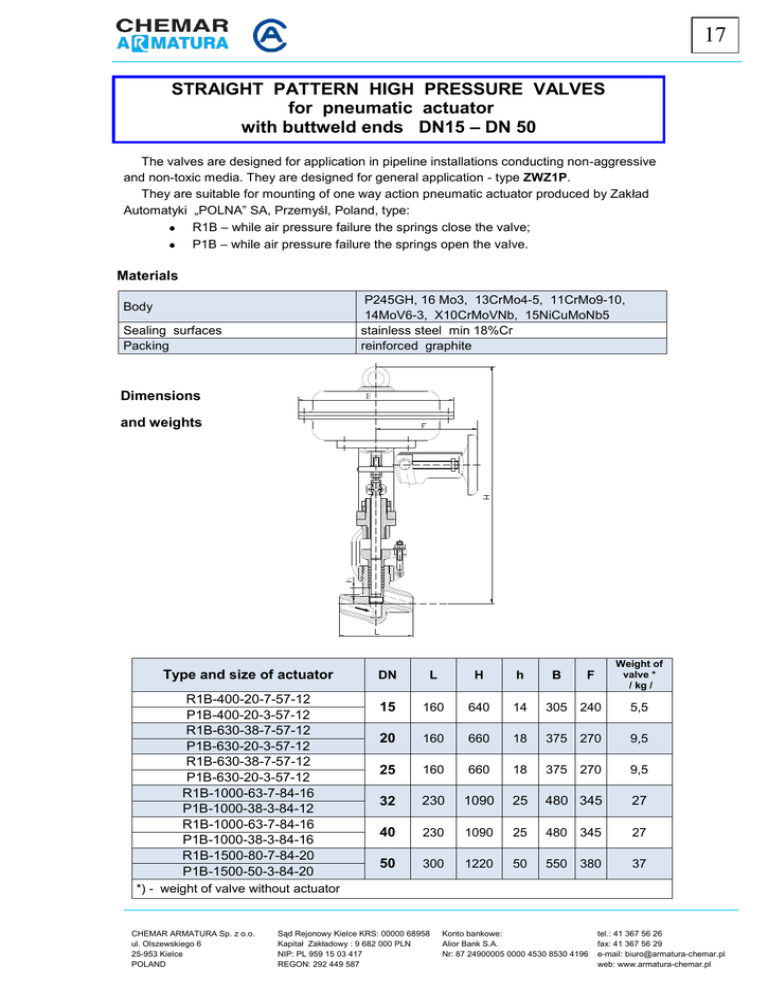

DN 50 - CHEMAR ARMATURA Sp. z oo

17
STRAIGHT PATTERN HIGH PRESSURE VALVES
for pneumatic actuator
with buttweld ends DN15 – DN 50
The valves are designed for application in pipeline installations conducting non-aggressive
and non-toxic media. They are designed for general application - type ZWZ1P.
They are suitable for mounting of one way action pneumatic actuator produced by Zakład
Automatyki „POLNA” SA, Przemyśl, Poland, type:
R1B – while air pressure failure the springs close the valve;
P1B – while air pressure failure the springs open the valve.
Materials
P245GH, 16 Mo3, 13CrMo4-5, 11CrMo9-10,
14MoV6-3, X10CrMoVNb, 15NiCuMoNb5
stainless steel min 18%Cr
reinforced graphite
Body
Sealing surfaces
Packing
Dimensions
and weights
Type and size of actuator
R1B-400-20-7-57-12
P1B-400-20-3-57-12
R1B-630-38-7-57-12
P1B-630-20-3-57-12
R1B-630-38-7-57-12
P1B-630-20-3-57-12
R1B-1000-63-7-84-16
P1B-1000-38-3-84-12
R1B-1000-63-7-84-16
P1B-1000-38-3-84-16
R1B-1500-80-7-84-20
P1B-1500-50-3-84-20
DN
L
H
h
B
F
Weight of
valve *
/ kg /
15
160
640
14
305
240
5,5
20
160
660
18
375
270
9,5
25
160
660
18
375
270
9,5
32
230
1090
25
480 345
27
40
230
1090
25
480
345
27
50
300
1220
50
550
380
37
*) - weight of valve without actuator
CHEMAR ARMATURA Sp. z o.o.
ul. Olszewskiego 6
25-953 Kielce
POLAND
Sąd Rejonowy Kielce KRS: 00000 68958
Kapitał Zakładowy : 9 682 000 PLN
NIP: PL 959 15 03 417
REGON: 292 449 587
Konto bankowe:
Alior Bank S.A.
Nr: 87 24900005 0000 4530 8530 4196
tel.: 41 367 56 26
fax: 41 367 56 29
e-mail: [email protected]
web: www.armatura-chemar.pl
17
Operating data
Maximum permissible operating temperature TS, °C
Material
20 200 250 300 350 400 450 470 490 500 530 550 570 600
Maximum permissible operating pressure PS, bar
P245GH
16Mo3
180 180 180 180 180 180 132
180 180 180 180 180 180 180 180 160 93
13CrMo4-5
180 180 180 180 180 180 180 180 156 140 63
11CrMo9-10
180 180 180 170 130 67
14MoV6-3
180 180 180 152
X10CrMoVNb
180 180 180 180 180
Maximum pressure drop : for valves with actuators type R1B
for valves with actuators type P1B
p=180 bar.
p=250 bar.
End connections
DN
15
20
25
32
40
50
Dw min
16
20
26
30
38
51
Dz max
28
35
40
46
62
78
Additional information
Product meets requirements of Directive 97/23/WE/PED/.
Acceptance tests : PN-EN 12266-1, leak tightness – class B
Valves can be manufactured with internal parts (stem, disc) made of titanium alloys.
Valves should operate in two positions: completely open or completely closed.
Valves can operate only on horizontal piping with bonnet directed up.
Special versions for client’s request are available.
We reserve the right to change contents and form of this sheet without notice
