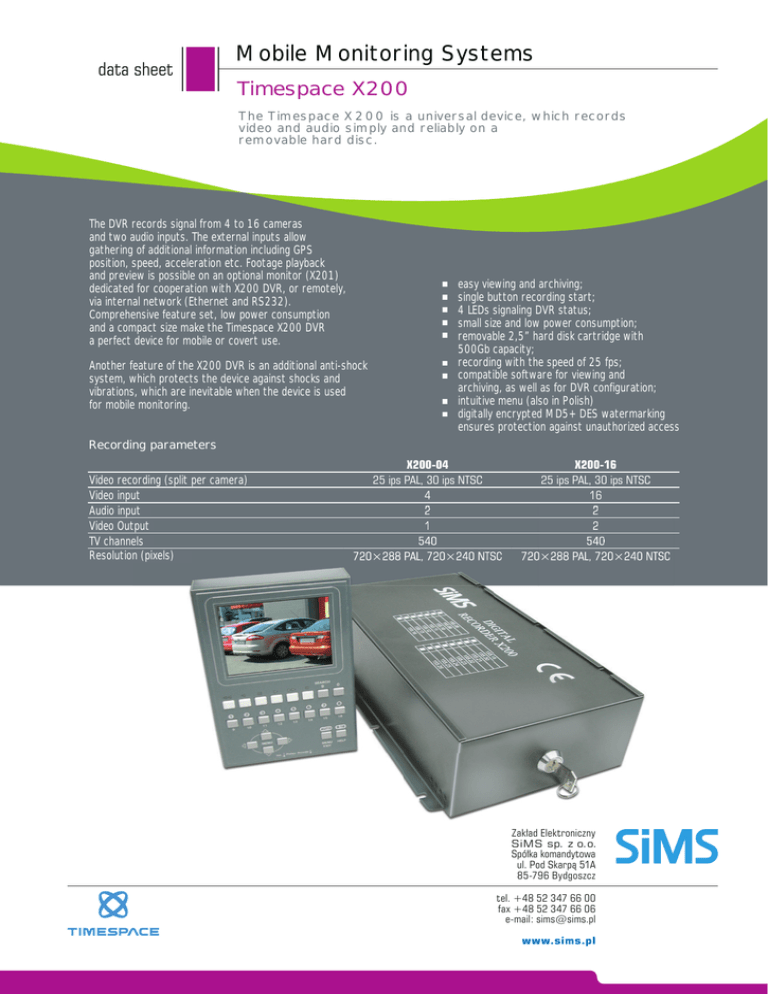

Mobile Monitoring Systems
Timespace X200
The Timespace X200 is a universal device, which records
video and audio simply and reliably on a
removable hard disc.
The DVR records signal from 4 to 16 cameras
and two audio inputs. The external inputs allow
gathering of additional information including GPS
position, speed, acceleration etc. Footage playback
and preview is possible on an optional monitor (X201)
dedicated for cooperation with X200 DVR, or remotely,
via internal network (Ethernet and RS232).
Comprehensive feature set, low power consumption
and a compact size make the Timespace X200 DVR
a perfect device for mobile or covert use.
Another feature of the X200 DVR is an additional anti-shock
system, which protects the device against shocks and
vibrations, which are inevitable when the device is used
for mobile monitoring.
easy viewing and archiving;
single button recording start;
4 LEDs signaling DVR status;
small size and low power consumption;
removable 2,5” hard disk cartridge with
500Gb capacity;
recording with the speed of 25 fps;
compatible software for viewing and
archiving, as well as for DVR configuration;
intuitive menu (also in Polish)
digitally encrypted MD5+DES watermarking
ensures protection against unauthorized access
Recording parameters
Video recording (split per camera)
Video input
Audio input
Video Output
TV channels
Resolution (pixels)
X200-04
25 ips PAL, 30 ips NTSC
4
2
1
540
720×288 PAL, 720×240 NTSC
X200-16
25 ips PAL, 30 ips NTSC
16
2
2
540
720×288 PAL, 720×240 NTSC
Zakład Elektroniczny
SiMS sp. z o.o.
Spółka komandytowa
ul. Pod Skarpą 51A
85-796 Bydgoszcz
tel. +48 52 347 66 00
fax +48 52 347 66 06
e-mail: [email protected]
www.sims.pl
Properties
a single button recording start;
ability to view live or scroll footage while recording;
a removable Disk Cartridge;
ability to record in a normal, continuous, alarm or in a 7-day schedule mode;
text embedded into an image recording (camera number, date, time, 12-character user text);
footage search by date, time, or file name;
signalization of DVR status by 4 LEDs;
MPEG compression, full or conditional refreshing;
possibility to register the GPS position, speed and acceleration (optional);
recording of alarm events;
intuitive menu with help function (also in Polish);
password protection;
control by RS422/CAN/SMS;
recordings download via LAN / WLAN;
motion detection;
Timespace PCLink200 Software for viewing and archiving;
Nagrywarka
Security functions
proprietary XBA file format, convertible to AVI;
password protection;
a unique "watermark" on each recording;
text embedded into an image recording (camera number, date, and time);
Connectors
Podgląd obrazu
w czasie
rzeczywistym
Video input
Video output
Switcher video output
Audio input
X201 Player
LAN/WLAN/3G
GSM/GPS/RS422/CAN/TACHO
Digital input
Alarm output
Power input
X200-04
X200-16
5×BNC
8 lub 16 BNC
1×BNC
1×BNC
1×BNC
1×BNC
2 gniazda mini jack
2 gniazda mini jack
RJ45 (front panel)
RJ45 (front panel)
RJ45 (back panel)
RJ45 (back panel)
Molex Mini Fit JR
Molex Mini Fit JR
11 Molex Mini Fit JR
11 Molex Mini Fit JR
4 Molex Mini Fit JR
4 Molex Mini Fit JR
1 Molex Mini Fit JR
1 Molex Mini Fit JR
General characteristics
Przegląd zapisanego
obrazu bezpośrednio
z dysku HDD
Housing
Dimensions (mm)
IP class
Operating temperature
Operating humidity
Installation
DVR power supply
Power consumption
Weight
Lightweight black painted steel
320×175×85
IP50
od -10°C do +40°C
80%
Free-standing or installed with mounting screws
16-48 V DC
12 W
4,5 kg
Compliance with standards
Bezprzewodowe
przesyłanie
zapisanego obrazu
datasheet
CE mark
89/336/EEC Generic
95/54/EC Commercial Vehicles
Basic standard EN/50022
Specification 5UK Home Office
Electrical Safety 72/23/EEC
Mobile Monitoring Systems
Timespace X200
