Specyfikacja techniczna i wymiary

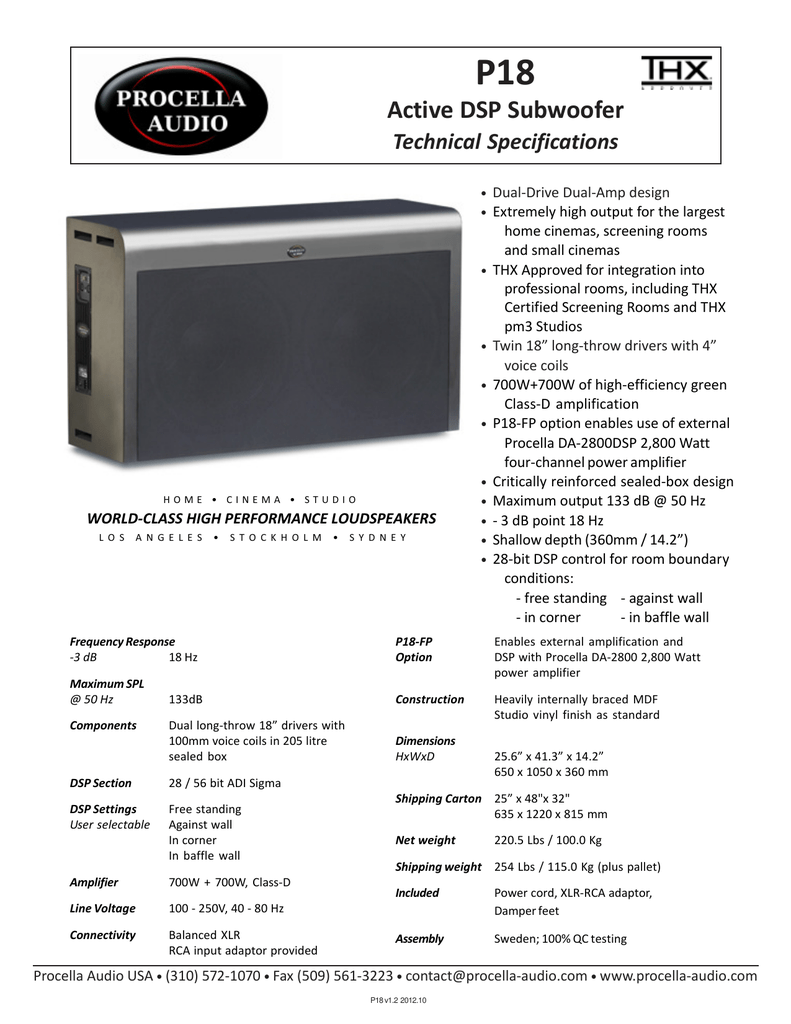

P18
Active DSP Subwoofer
Technical Specifications
•
•
•
•
•
•
•
,KDͻ/EDͻ^dh/K
•
WORLD-CLASS HIGH PERFORMANCE LOUDSPEAKERS
> K ^ E ' > ^ ͻ ^ d K < , K > D ͻ ^ z E z
•
•
•
Dual-Drive Dual-Amp design
Extremely high output for the largest
home cinemas, screening rooms
and small cinemas
THX Approved for integration into
professional rooms, including THX
Certified Screening Rooms and THX
pm3 Studios
Twin 18” long-throw drivers with 4”
voice coils
700W+700W of high-efficiency green
Class-D amplification
P18-FP option enables use of external
Procella DA-2800DSP 2,800 Watt
four-channel power amplifier
Critically reinforced sealed-box design
Maximum output 133 dB @ 50 Hz
- 3 dB point 18 Hz
Shallow depth (360mm / 14.2”)
28-bit DSP control for room boundary
conditions:
- free standing - against wall
- in corner
- in baffle wall
Frequency Response
-3 dB
18 Hz
P18-FP
Option
Maximum SPL
@ 50 Hz
Enables external amplification and
DSP with Procella DA-2800 2,800 Watt
power amplifier
133dB
Construction
Dual long-throw 18” drivers with
100mm voice coils in 205 litre
sealed box
Heavily internally braced MDF
Studio vinyl finish as standard
Dimensions
HxWxD
Components
DSP Section
28 / 56 bit ADI Sigma
DSP Settings
User selectable
Free standing
Against wall
In corner
In baffle wall
Amplifier
700W + 700W, Class-D
Line Voltage
100 - 250V, 40 - 80 Hz
Connectivity
Balanced XLR
RCA input adaptor provided
25.6” x 41.3” x 14.2”
650 x 1050 x 360 mm
Shipping Carton 25” x 48"x 32"
635 x 1220 x 815 mm
Net weight
220.5 Lbs / 100.0 Kg
Shipping weight 254 Lbs / 115.0 Kg (plus pallet)
Included
Power cord, XLR-RCA adaptor,
Damper feet
Assembly
Sweden; 100% QC testing
Procella Audio USA • (310) 572-1070 • Fax (509) 561-3223 • [email protected] • www.procella-audio.com
P18 v1.2 2012.10
35mm (1.4")
360mm (14.2")
650mm (25.6")
Additional space
for connectors
11mm (0.4")
15mm (0.6")
Ventilation and
"Handles"
Baffle wall cut-out = 1100 x 700mm ( 43.3" x 27.6" )
Weight = 97kg (215Lbs)
1050mm (41.3")
P18
R 60mm (2.4")
© PROCELLA AUDIO 2009
Procella P18 dimensions
P18_vue.CAD
Anders Uggelberg aug -09
UPD: 15/9
Scale 1:10 (PDF/JPG-file not to scale)
Height of insulation feet
360mm (14.2")
