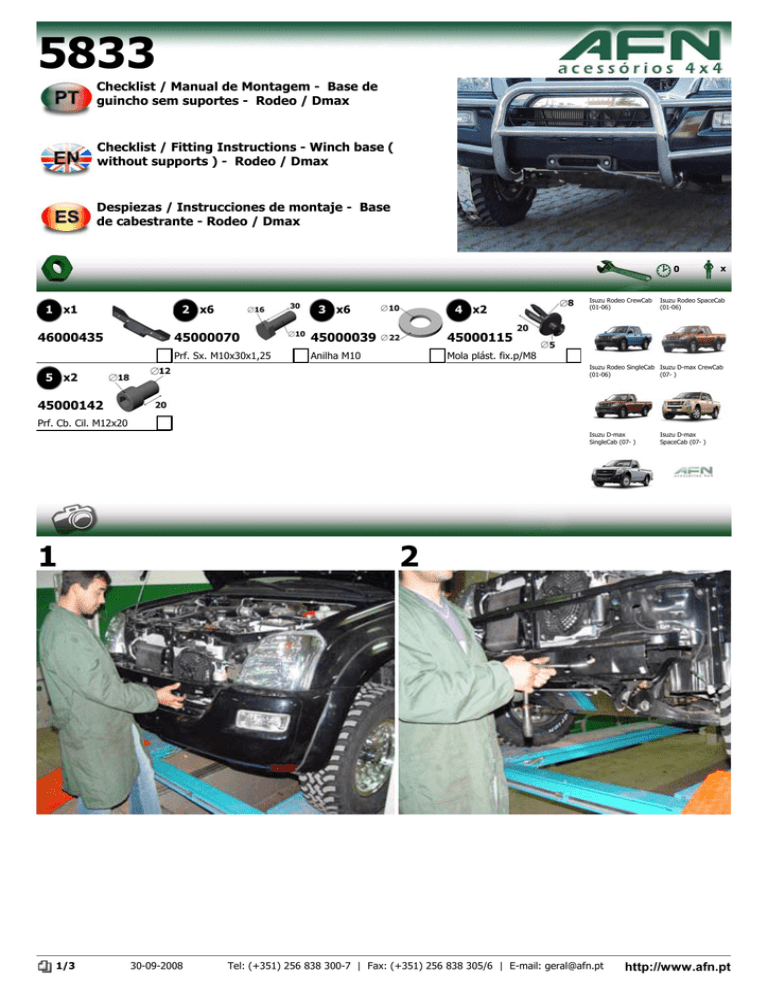

Instruções de montagem

5833
Checklist / Manual de Montagem - Base de
guincho sem suportes - Rodeo / Dmax
Checklist / Fitting Instructions - Winch base (
without supports ) - Rodeo / Dmax
Despiezas / Instrucciones de montaje - Base
de cabestrante - Rodeo / Dmax
0
1 x1
46000435
2 x6
3 x6
4 x2
45000070
45000039
45000115
Prf. Sx. M10x30x1,25
Anilha M10
Mola plást. fix.p/M8
Isuzu Rodeo CrewCab
(01-06)
x
Isuzu Rodeo SpaceCab
(01-06)
Isuzu Rodeo SingleCab Isuzu D-max CrewCab
(01-06)
(07- )
5 x2
45000142
Prf. Cb. Cil. M12x20
Isuzu D-max
SingleCab (07- )
1
1/3
Isuzu D-max
SpaceCab (07- )
2
30-09-2008
