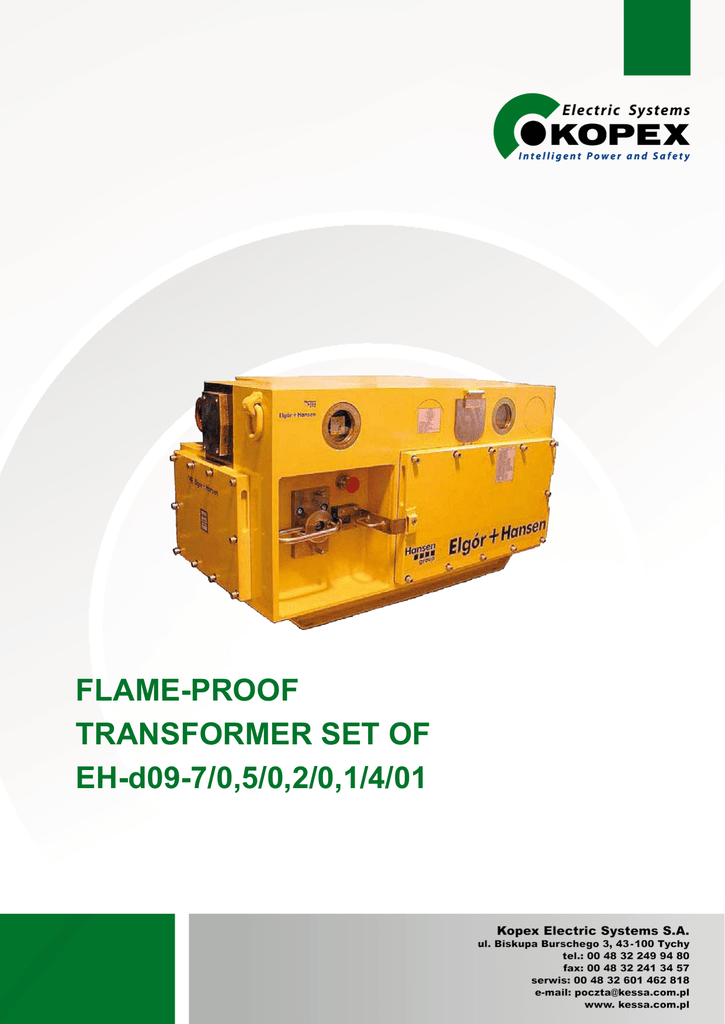

FLAME-PROOF TRANSFORMER SET OF EH-d09

FLAME-PROOF
TRANSFORMER SET OF
EH-d09-7/0,5/0,2/0,1/4/01
Kopex Electric Systems S.A.
ul. Biskupa Burschego 3, 43 - 100 Tychy
tel.: 00 48 32 249 94 80
fax: 00 48 32 241 34 57
serwis: 00 48 601 462 818
e-mail: [email protected]
www.kessa.com.pl
CHARACTERISTIC
FEATURES
The EH-d09-7/0,5/0,2/0,1/4/01 type flame-proof transformer unit is an electric device suitable for working
within electric installations with the 1000V or 500V
rated voltages.This unit is assigned for supplying and
control of one-phase or three-phase receivers with the
rated voltages:
3x133V from one, protected outflow with possible
phase sequence change,
3x231V from two independent protected outflows,
42V from one protected outflow.
The unit is the anti-explosion structure device and,
according to Polish Geological & Mining Law rules, it
may be installed inside underground excavations of
the non-methane or methane mines with the methane
hazard grades: “a”, “b” & “c” or the coal dust explosion
hazard classes “A” & “B”. The used electrical protections and the applied control and cooperation system
with the technological blockades, using the intrinsically safe circuits, ensure safe cooperation with the
supplied mining devices and/or machines.
The unit structure has been developed according to
the 94/9/WE (ATEX) directive requirements.
Optionally the transformer unit is suitable for connecting of the data transfer system that enables
reading & sending the technological information to the
mine-head (e.g. to the dispatcher stand).
TECHNICAL DATA
Rated insulation voltage
1000V
Rated connection voltage
500V2
Weight~400kg
~ 400kg
Overall dimensions
~ (1050 x 585 x 592)mm
Overall dimensions, with additional lead gland on the inflow (LxHxW)
~ (1155 x 585 x 592)mm
