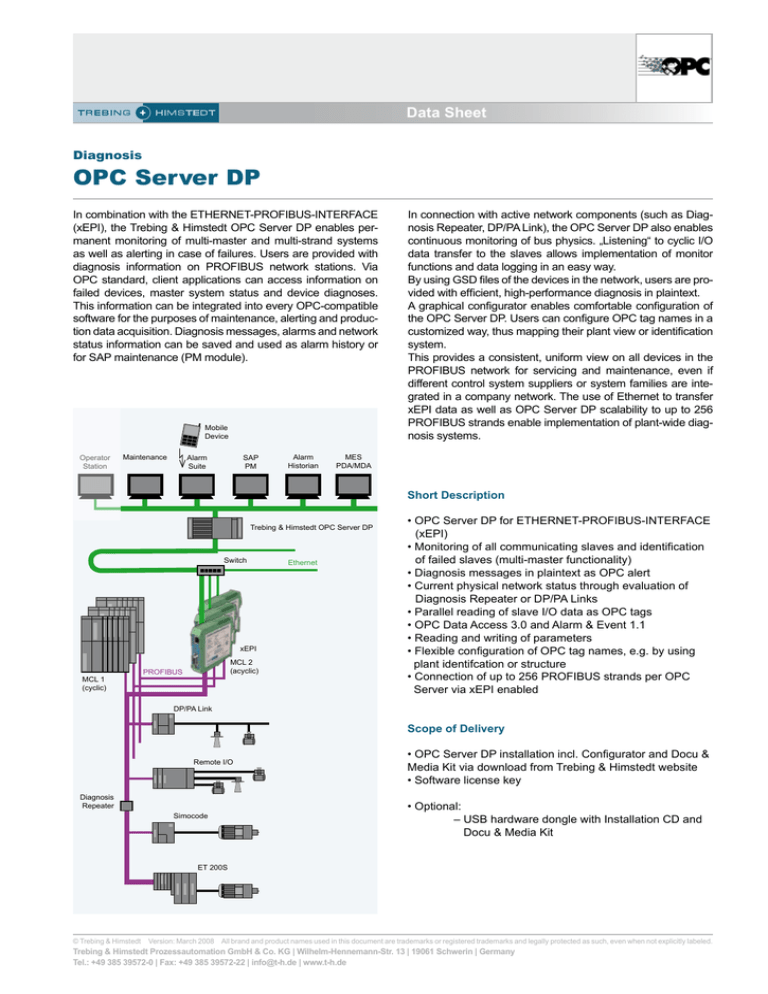

Datenblatt OPC Server DP

Data Sheet
Diagnosis
OPC Server DP
In combination with the ETHERNET-PROFIBUS-INTERFACE
(xEPI), the Trebing & Himstedt OPC Server DP enables permanent monitoring of multi-master and multi-strand systems
as well as alerting in case of failures. Users are provided with
diagnosis information on PROFIBUS network stations. Via
OPC standard, client applications can access information on
failed devices, master system status and device diagnoses.
This information can be integrated into every OPC-compatible
software for the purposes of maintenance, alerting and production data acquisition. Diagnosis messages, alarms and network
status information can be saved and used as alarm history or
for SAP maintenance (PM module).
Mobile
Device
Operator
Station
Maintenance
Alarm
Suite
SAP
PM
Alarm
Historian
In connection with active network components (such as Diagnosis Repeater, DP/PA Link), the OPC Server DP also enables
continuous monitoring of bus physics. „Listening“ to cyclic I/O
data transfer to the slaves allows implementation of monitor
functions and data logging in an easy way.
By using GSD files of the devices in the network, users are provided with efficient, high-performance diagnosis in plaintext.
A graphical configurator enables comfortable configuration of
the OPC Server DP. Users can configure OPC tag names in a
customized way, thus mapping their plant view or identification
system.
This provides a consistent, uniform view on all devices in the
PROFIBUS network for servicing and maintenance, even if
different control system suppliers or system families are integrated in a company network. The use of Ethernet to transfer
xEPI data as well as OPC Server DP scalability to up to 256
PROFIBUS strands enable implementation of plant-wide diagnosis systems.
MES
PDA/MDA
Short Description
Trebing & Himstedt OPC Server DP
Switch
xEPI
MCL 1
(cyclic)
MCL 2
(acyclic)
PROFIBUS
Ethernet
• OPC Server DP for ETHERNET-PROFIBUS-INTERFACE
(xEPI)
• Monitoring of all communicating slaves and identification
of failed slaves (multi-master functionality)
• Diagnosis messages in plaintext as OPC alert
• Current physical network status through evaluation of
Diagnosis Repeater or DP/PA Links
• Parallel reading of slave I/O data as OPC tags
• OPC Data Access 3.0 and Alarm & Event 1.1
• Reading and writing of parameters
• Flexible configuration of OPC tag names, e.g. by using
plant identifcation or structure
• Connection of up to 256 PROFIBUS strands per OPC
Server via xEPI enabled
DP/PA Link
Scope of Delivery
Remote I/O
Diagnosis
Repeater
Simocode
• OPC Server DP installation incl. Configurator and Docu &
Media Kit via download from Trebing & Himstedt website
• Software license key
• Optional:
– USB hardware dongle with Installation CD and Docu & Media Kit
ET 200S
© Trebing & Himstedt Version: March 2008 All brand and product names used in this document are trademarks or registered trademarks and legally protected as such, even when not explicitly labeled.
Trebing & Himstedt Prozessautomation GmbH & Co. KG | Wilhelm-Hennemann-Str. 13 | 19061 Schwerin | Germany
Tel.: +49 385 39572-0 | Fax: +49 385 39572-22 | [email protected] | www.t-h.de
Data Sheet
Diagnosis
OPC Server DP
Technical Data
Hardware*
Protocols
Max. Baud Rates
ETHERNET-PROFIBUS-INTERFACE | xEPI
DP, DP-V1
12 Mbit/s
System Requirements
Operating System
USB slot
PROFIBUS Communication Processor
Windows 2000 Professional 1) | Windows XP SP 2 1) | Windows 2000 Server | Windows Server 2003
USB Version 1.1 (or higher) – for hardware-dongle (License)
xEPI
* PROFIBUS communication processor: CP5512/CP5611 on request
1) For
Trebing & Himstedt OPC Server DP Basic version only - ten network connections maximum.
Order Information
Article Number
Software
Trebing & Himstedt OPC Server DP Basic (≤ 32 PROFIBUS Master)
Trebing & Himstedt OPC Server DP Medium (≤ 96 PROFIBUS Master)
Trebing & Himstedt OPC Server DP Large (≤ 256 PROFIBUS Master)
Trebing & Himstedt OPC Server DP Upgrade Medium (≤ 96 PROFIBUS Master)
Trebing & Himstedt OPC Server DP Upgrade Large (≤ 256 PROFIBUS Master)
10002717
10002718
10002719
10002720
10002721
Hardware/Accessories
ETHERNET-PROFIBUS-INTERFACE | xEPI
USB Dongle License Basic for Trebing & Himstedt OPC Server DP (≤ 32 PROFIBUS Master)
USB Dongle License Medium for Trebing & Himstedt OPC Server DP (≤ 96 PROFIBUS Master)
USB Dongle License Large for Trebing & Himstedt OPC Server DP (≤ 256 PROFIBUS Master)
USB Dongle Upgrade Medium for Trebing & Himstedt OPC Server DP (≤ 96 PROFIBUS Master)
USB Dongle Upgrade Large for Trebing & Himstedt OPC Server DP (≤ 256 PROFIBUS Master)
10002317
10002755
10002756
10002757
10002759
10002760
