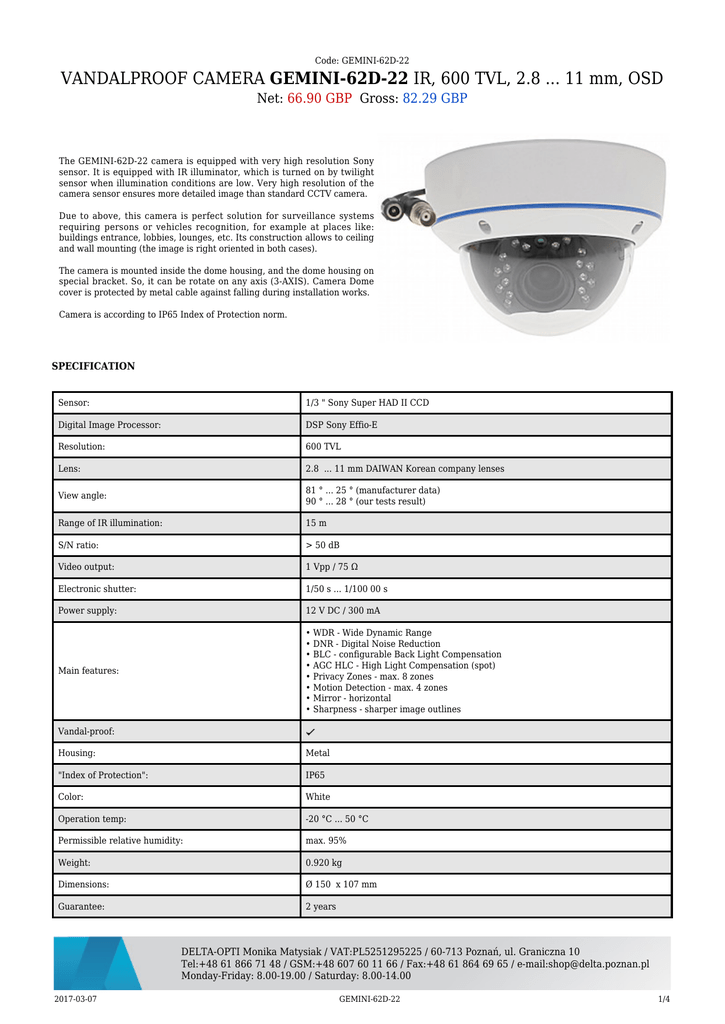

VANDALPROOF CAMERA GEMINI-62D-22 IR

Code: GEMINI-62D-22
VANDALPROOF CAMERA GEMINI-62D-22 IR, 600 TVL, 2.8 ... 11 mm, OSD
Net: 66.90 GBP Gross: 82.29 GBP
The GEMINI-62D-22 camera is equipped with very high resolution Sony
sensor. It is equipped with IR illuminator, which is turned on by twilight
sensor when illumination conditions are low. Very high resolution of the
camera sensor ensures more detailed image than standard CCTV camera.
Due to above, this camera is perfect solution for surveillance systems
requiring persons or vehicles recognition, for example at places like:
buildings entrance, lobbies, lounges, etc. Its construction allows to ceiling
and wall mounting (the image is right oriented in both cases).
The camera is mounted inside the dome housing, and the dome housing on
special bracket. So, it can be rotate on any axis (3-AXIS). Camera Dome
cover is protected by metal cable against falling during installation works.
Camera is according to IP65 Index of Protection norm.
SPECIFICATION
Sensor:
1/3 " Sony Super HAD II CCD
Digital Image Processor:
DSP Sony Effio-E
Resolution:
600 TVL
Lens:
2.8 ... 11 mm DAIWAN Korean company lenses
View angle:
81 ° ... 25 ° (manufacturer data)
90 ° ... 28 ° (our tests result)
Range of IR illumination:
15 m
S/N ratio:
> 50 dB
Video output:
1 Vpp / 75 Ω
Electronic shutter:
1/50 s ... 1/100 00 s
Power supply:
12 V DC / 300 mA
Main features:
• WDR - Wide Dynamic Range
• DNR - Digital Noise Reduction
• BLC - configurable Back Light Compensation
• AGC HLC - High Light Compensation (spot)
• Privacy Zones - max. 8 zones
• Motion Detection - max. 4 zones
• Mirror - horizontal
• Sharpness - sharper image outlines
Vandal-proof:
Housing:
Metal
"Index of Protection":
IP65
Color:
White
Operation temp:
-20 °C ... 50 °C
Permissible relative humidity:
max. 95%
Weight:
0.920 kg
Dimensions:
Ø 150 x 107 mm
Guarantee:
2 years
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-07
GEMINI-62D-22
1/4
PRESENTATION
Camera view after remove the Dome cover:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-07
GEMINI-62D-22
2/4
In the kit:
OUR TESTS
Camera image at artificial illumination (about 30Lux):
Camera image at night conditions with internal built-in IR illuminator on:
Camera image at direct strong light opposite to camera:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-07
GEMINI-62D-22
3/4
OUR OPINIONS
Additional "SPOT" (service) video output allows to local view the camera image without the need without the need to disconnect it from
CCTV system.
Possibility to ceiling or wall installation.
PACKAGE PARAMETERS
Dimensions (L x W x H): 165x165x130 mm Package: Karton Gross Weight: 1.14 kg
