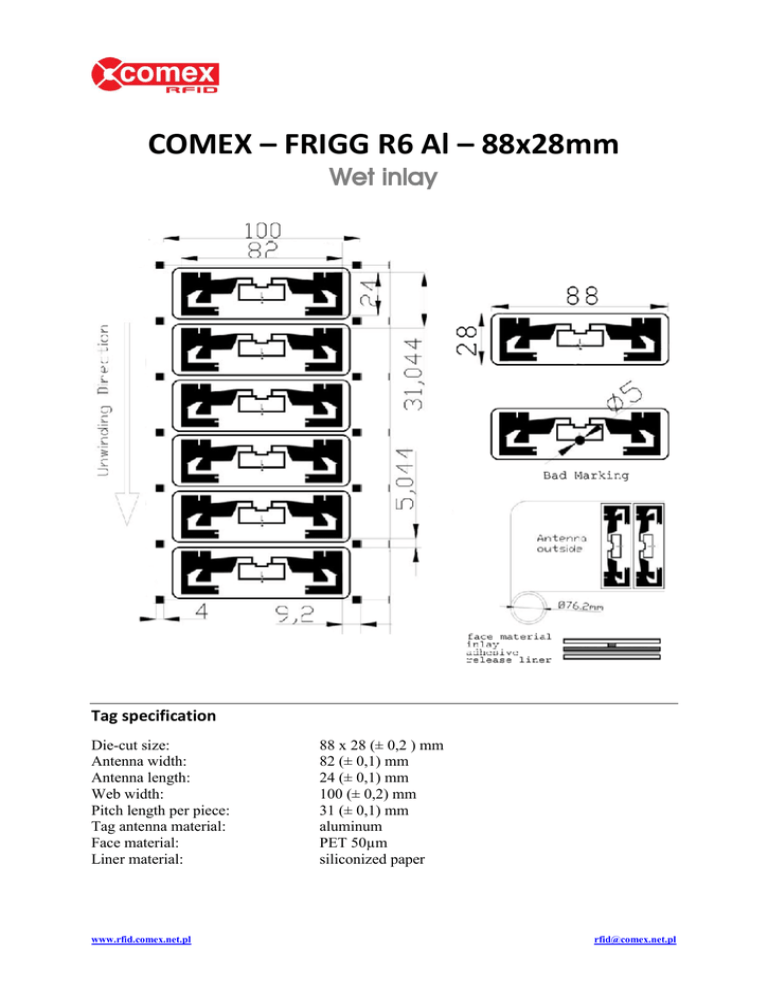

COMEX – FRIGG R6 Al – 88x28mm
Wet inlay
Tag specification
Die-cut size:
Antenna width:
Antenna length:
Web width:
Pitch length per piece:
Tag antenna material:
Face material:
Liner material:
www.rfid.comex.net.pl
88 x 28 (± 0,2 ) mm
82 (± 0,1) mm
24 (± 0,1) mm
100 (± 0,2) mm
31 (± 0,1) mm
aluminum
PET 50µm
siliconized paper
[email protected]
v.1.0 / 19-11-15
Roll format
Real core inner diameter:
Wind direction:
Inlays per roll:
Quality audit:
76 mm (3”)
Out
2 000 pcs
100%, bad ones marked
RFID
Supported Protocols:
Integrated Circuit (IC):
EPC memory:
EPC Class 1 Gen 2 compliant, ISO/IEC 18000-6C
NXP UCODE7
128-bits
Environmental
Shelf life:
Operation temperature:
Bend diameter:
2 years, +20°C, 40% RH
-40°C to +80°C (20% to 90% RH)
50 mm
PPU Comex Ltd.
54-516 Wrocław
ul. Graniczna 21
Poland
tel. +48 71 373 75 79, 354 58 79
fax +48 71 373 75 78
e-mail: [email protected]
Unprotected inlays are sensitive to ESD. Keep environmental static charge to a minimum.
Comex reserves the right to change product specifications and services at any time without notice.
