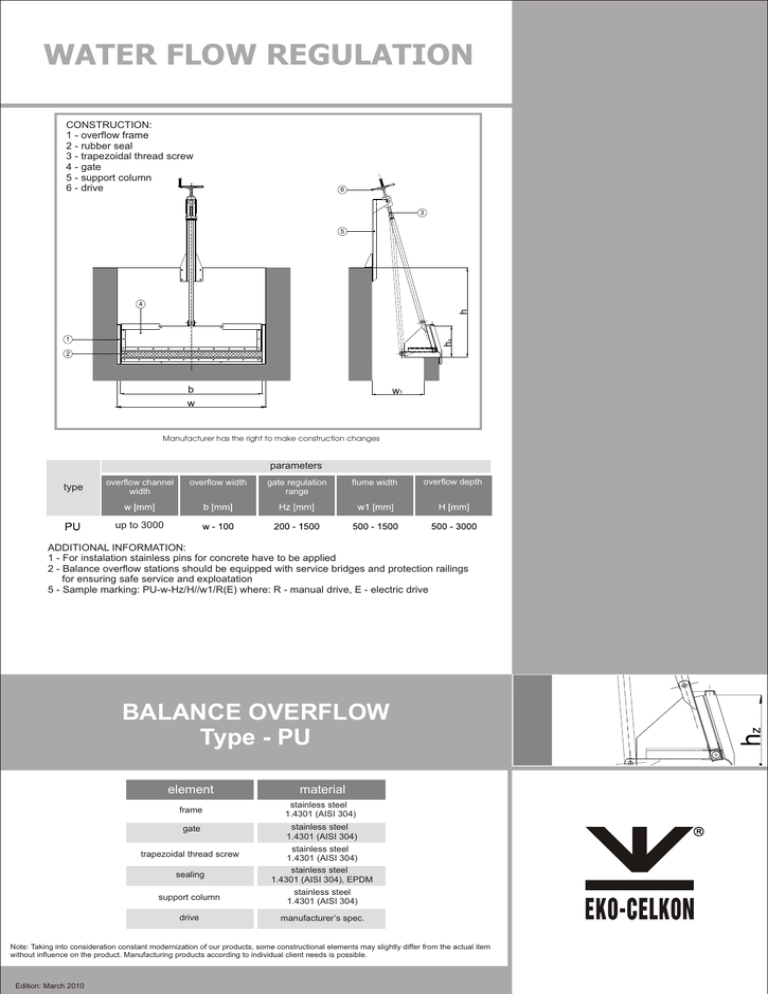

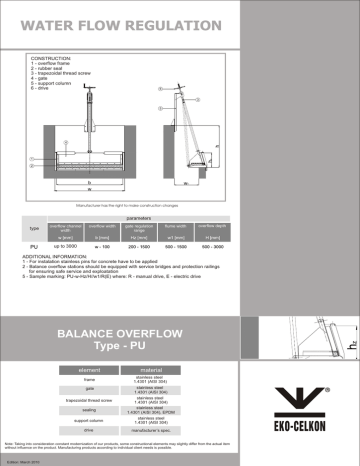

WATER FLOW REGULATION
CONSTRUCTION:
1 - overflow frame
2 - rubber seal
3 - trapezoidal thread screw
4 - gate
5 - support column
6 - drive
6
3
5
h
4
hz
1
2
b
w
w1
Manufacturer has the right to make construction changes
parameters
type
overflow channel
width
overflow width
gate regulation
range
flume width
overflow depth
up to 3000
ADDITIONAL INFORMATION:
1 - For instalation stainless pins for concrete have to be applied
2 - Balance overflow stations should be equipped with service bridges and protection railings
for ensuring safe service and exploatation
5 - Sample marking: PU-w-Hz/H//w1/R(E) where: R - manual drive, E - electric drive
BALANCE OVERFLOW
Type - PU
element
material
frame
stainless steel
1.4301 (AISI 304)
gate
stainless steel
1.4301 (AISI 304)
trapezoidal thread screw
sealing
stainless steel
1.4301 (AISI 304)
stainless steel
1.4301 (AISI 304), EPDM
support column
stainless steel
1.4301 (AISI 304)
drive
manufacturer’s spec.
Note: Taking into consideration constant modernization of our products, some constructional elements may slightly differ from the actual item
without influence on the product. Manufacturing products according to individual client needs is possible.
Edition: March 2010
Option 2
Option 1
WATER FLOW REGULATION •WATER FLOW REGULATION •WATER FLOW REGULATION •WATER FLOW
BALANCE OVERFLOW
Type - PU
APPLICATION:
- flow regulation and keeping of constant fluid level
in channels and tanks;
- can be equipped with manual or electric regulation drive;
Product is manufactured in accordance with ISO 9001:2000
