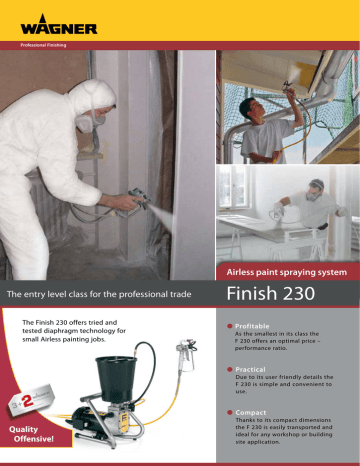

Finish 230 - WSB Finishing Equipment

Professional Finishing
Airless paint spraying system
The entry level class for the professional trade
The Finish 230 offers tried and
tested diaphragm technology for
small Airless painting jobs.
Finish 230
l P rofitable
s the smallest in its class the
A
F 230 offers an optimal price –
performance ratio.
l P ractical
Due to its user friendly details the
F 230 is simple and convenient to
use.
l C
ompact
T hanks to its compact dimensions
Quality
Offensive!
the F 230 is easily transported and
ideal for any workshop or building
site application.
Professional Finishing
Spray the best
surface finish
The Finish 230 can be used either with a hopper or with a suction
system - ideal for the application of small quantities of material and
also for working directly from the original container.
with the Airless gun
AG 08.
When it is combined
with the TradeTip 2
Finish 230
The practical carrying handle
FineFinish nozzles you
provides for convenient
can achieve brilliant
transport on the building
surfaces.
site.
The swivelling handle allows
vertical or horizontal
operation.
The pressure gauge
provides precise
information
on the set spraying
pressure.
The hose can be
The connection cable (6 m) provides
tidied up and
flexibility and a wide radius of
out of the way thanks
action .
to the integral hose
holder.
Finish 230 Accessories
F 230 on frame
Spraypack
—————————————
Basic unit mounted on trolley
+ HP hose DN6-ND270,
NPS 1/4“, 15 m, yellow
+ Airless gun AG 08 incl.
TradeTip 2 nozzle holder
+ TradeTip 2 nozzle 515
+ Suction system, rigid
—————————————
Order Ref. No
0311 061
—————————————
—————————————
Basic unit mounted on frame
+ 5 litre hopper
+ HP hose DN6-ND270,
NPS 1/4“, 15 m, yellow
+ Airless gun AG 08 incl.
TradeTip 2 nozzle holder
+ TradeTip 2 FineFinish nozzle 410
—————————————
Order Ref. No
0311 062
—————————————
0296 388Airless gun AG 08 , F-thread, 1⁄4”,
incl. TradeTip 2 nozzle holder
0296 465Airless gun AG 08 with 2 finger trigger,
F-thread 1⁄4“, incl. TradeTip 2 nozzle holde
2SpeedTip nozzles
With the new 2SpeedTip for lacquers and glazes
you can swap between two nozzle sizes with just
one twist. The nozzle is available in various nozzle
combinations.
Nozzle extensions
0556 0xx
The use of nozzle extensions saves using ladders and scaffolding, extends the radius of action for objects with large surfaces and thus increases working
flexibility. (You can find more information in the current Compass - the reference book for WAGNER equipment technology.)
Technical Data
Finish 230
Power
0.56 kW
Voltage
230 V / 50 Hz
Hoses
Weight
17 kg
Max. delivery rate
1.25 l/min
9984 573 HP hose DN4-ND270, 1⁄4“, 7.5 m, yellow
9984 574HP hose DN6-ND270, 1/4", 15 m, yellow
Max. nozzle size
0.019“
www.wagner-group.com/profi
Printed in Germany · Subject to modifications · GB · 9122 823 · 02/2010 MS
Guns
F 230 on trolley
Spraypack
