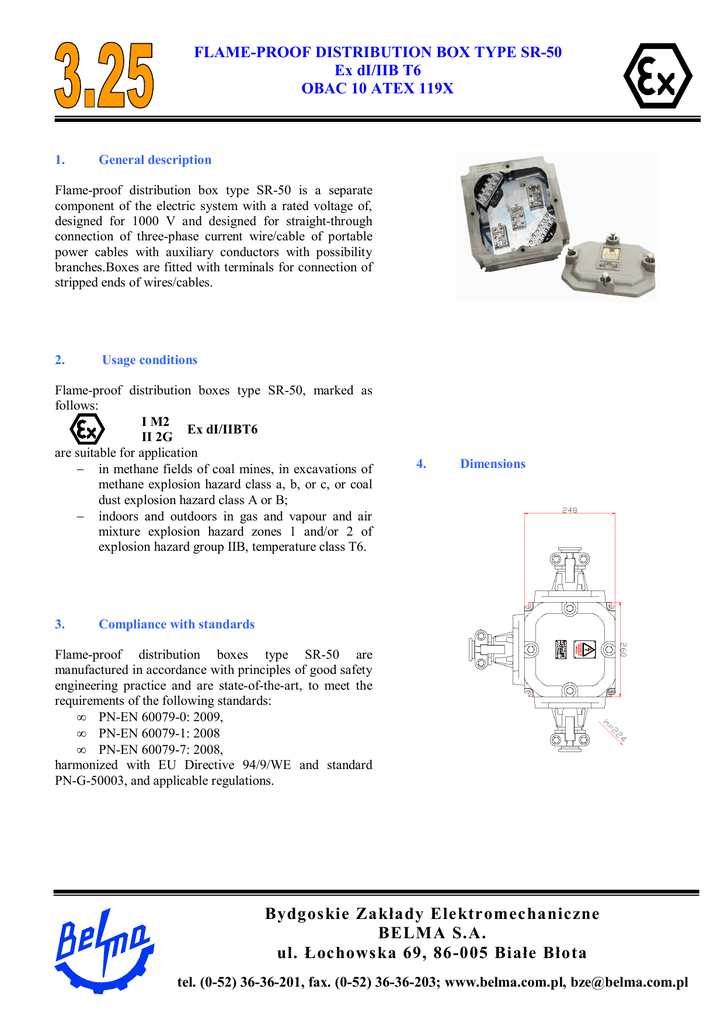

FLAME-PROOF DISTRIBUTION BOX TYPE SR-50
Ex dI/IIB T6
OBAC 10 ATEX 119X
1.
General description
Flame-proof distribution box type SR-50 is a separate
component of the electric system with a rated voltage of,
designed for 1000 V and designed for straight-through
connection of three-phase current wire/cable of portable
power cables with auxiliary conductors with possibility
branches.Boxes are fitted with terminals for connection of
stripped ends of wires/cables.
2.
Usage conditions
Flame-proof distribution boxes type SR-50, marked as
follows:
I M2
Ex dI/IIBT6
II 2G
are suitable for application
− in methane fields of coal mines, in excavations of
methane explosion hazard class a, b, or c, or coal
dust explosion hazard class A or B;
− indoors and outdoors in gas and vapour and air
mixture explosion hazard zones 1 and/or 2 of
explosion hazard group IIB, temperature class T6.
3.
4.
Dimensions
Compliance with standards
Flame-proof distribution boxes type SR-50 are
manufactured in accordance with principles of good safety
engineering practice and are state-of-the-art, to meet the
requirements of the following standards:
• PN-EN 60079-0: 2009,
• PN-EN 60079-1: 2008
• PN-EN 60079-7: 2008,
harmonized with EU Directive 94/9/WE and standard
PN-G-50003, and applicable regulations.
Bydgoskie Zakłady Elektromechaniczne
BELMA S.A.
ul. Łochowska 69, 86-005 Białe Błota
tel. (0-52) 36-36-201, fax. (0-52) 36-36-203; www.belma.com.pl, [email protected]
5.
Technical parameters
Basic technical parameters of flame-proof distribution box type SR-50:
Parameters
Value
Value for kit 2- boxes
Rated voltage
- Main circuit
- Path auxiliary
Rated current
- Main circuit
- Path auxiliary
1000 V - AC
25V - AC; 60 V - DC
200 A
10 A
Rated frequency
Number of terminals and crosssections of
50÷60 Hz
- main circuit
- path auxiliary
- earthing cores
Outer diameter of wires/cables
Degree of protection
Weight (without accessories)
6.
3 x 3(6÷50) mm2
6 x (4÷10) mm2
6 x 3 (6÷50) mm2
12 x (4÷10) mm2
2 x M8 - inside
1 x M10 -outside
4 x M8 - inside
2 x M10 - outside
10÷80 mm
10÷80 mm
IP 54
~ 30 kg
~ 60 kg
Order example
In your order please specify product name, type and quantity entry units WK-_ or W_M and their arrangement.
Cables/wires can be let in using flame-proof inlet units type W_M and/or type WK-.... Inlets type W_M are
attached to the box enclosure via cover type PWP-…, and inlets type WK-… via reduction cover type PR;
redundant openings are stopped with a silencing cover type PG.
Example: Distribution box SR-50 with two reduction cover type PR, two WK-65 inlets, one silencing cover type
PG.
Arrangement of entry units
Ilość zespołów wpustowych (na boku
A, B, C, C1)
A
B
0
1
2
4
Arrangemont entry
units in
covers side
Type of entry unit / quantity pice suitable size
W10
M
W20
M
W30
M
W40
M
W50
M
WK35
WK50
WK65
WK80
1
1
1
1
1
1
1
1
1
C
2
Dwie połączone skrzynki SR-50
A
B
C
C1
1
1
1
4
2
4
2
2
1
1
1
