ITE-PAL5019DP

FPDF-extension
(C) Trol Intermedia

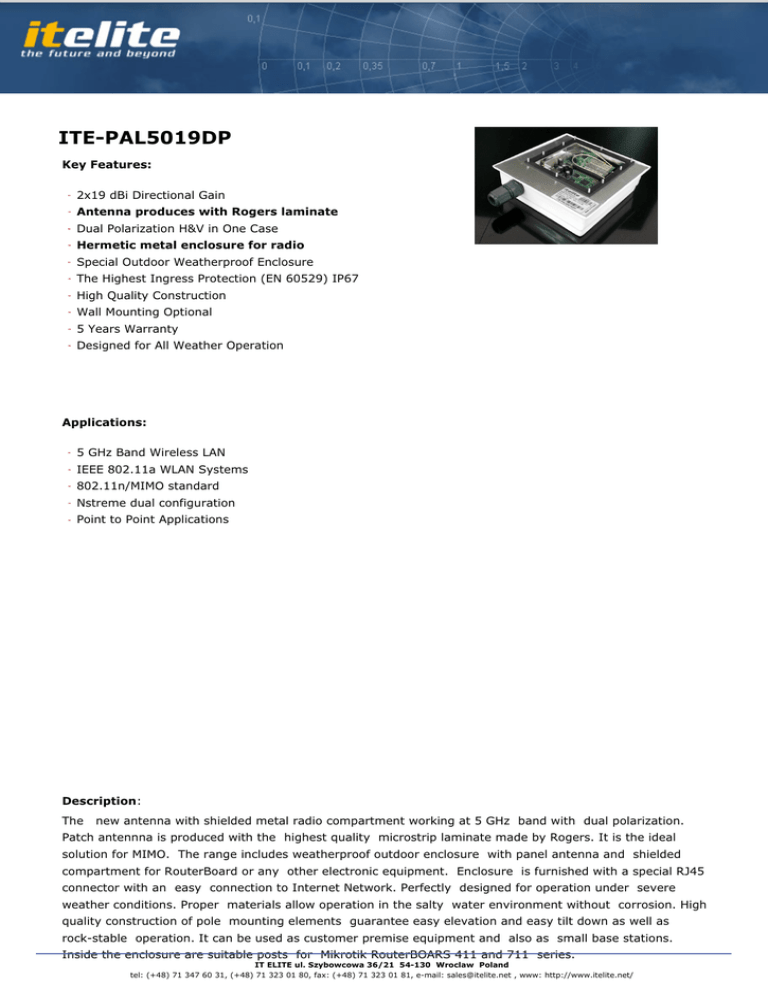

ITE-PAL5019DP
Key Features:
-
2x19 dBi Directional Gain
-
Antenna produces with Rogers laminate
-
Dual Polarization H&V in One Case
-
Hermetic metal enclosure for radio
-
Special Outdoor Weatherproof Enclosure
-
The Highest Ingress Protection (EN 60529) IP67
-
High Quality Construction
-
Wall Mounting Optional
-
5 Years Warranty
-
Designed for All Weather Operation
Applications:
-
5 GHz Band Wireless LAN
-
IEEE 802.11a WLAN Systems
-
802.11n/MIMO standard
-
Nstreme dual configuration
-
Point to Point Applications
Description:
The
new antenna with shielded metal radio compartment working at 5 GHz band with dual polarization.
Patch antennna is produced with the highest quality microstrip laminate made by Rogers. It is the ideal
solution for MIMO. The range includes weatherproof outdoor enclosure with panel antenna and shielded
compartment for RouterBoard or any other electronic equipment. Enclosure is furnished with a special RJ45
connector with an easy connection to Internet Network. Perfectly designed for operation under severe
weather conditions. Proper materials allow operation in the salty water environment without corrosion. High
quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as
rock-stable operation. It can be used as customer premise equipment and also as small base stations.
Inside the enclosure are suitable posts for Mikrotik RouterBOARS 411 and 711 series.
IT ELITE ul. Szybowcowa 36/21 54-130 Wroclaw Poland
tel: (+48) 71 347 60 31, (+48) 71 323 01 80, fax: (+48) 71 323 01 81, e-mail: [email protected] , www: http://www.itelite.net/
Właściwości elektryczne
Częstotliwość
55.1 -5.9 GHz
Zysk
2x19dBi
Polaryzacja
dual H&V
Szerokość wiązk: pozioma
20°
Szerokość wiązki: pionowa
20°
VSWR
<2
Impedancja
50 om
Właściwości obudowy
Technologia
Microstrip
Materiał
UV protected
Kolor
White
Klasa szczelności (EN 60529):
IP 67
Temperatura minimalna
-40°C / -40°F
Temperatura maksymalna
80°C / 176°F
Właściwości mechaniczne
Kompatybilna z:
RB411 and RB711 series
Konektor wejściowy
2x pigtail UFL, MMCX or RPSMA
Konektor na obudowie
RJ45
Wymiary zawnętrzne
200x200x70mm / 7,9x7,9x2,8"
Waga
0,68kg / 1,5lbs
Specification subject to change without notice.
