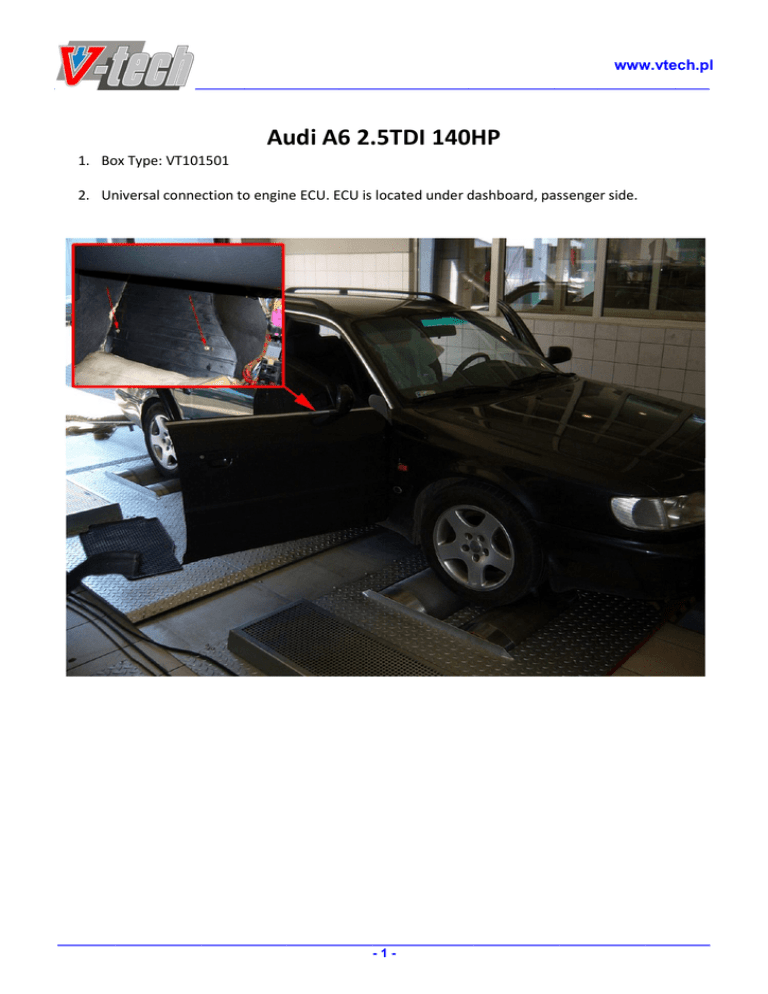

Audi A6 2.5TDI 140HP
1. Box Type: VT101501
2. Universal connection to engine ECU. ECU is located under dashboard, passenger side.
___________________________________________________________________________________________
-1-
www.vtech.pl
____________________________________________________________________________
3. ECU Connector:
4. Connections:
ECU pin no.
Signal
Wire color in box harness
19
Ground
Black
16
Power
Red
14
Signal 1
Yellow
39
Signal 2
Blue
54
Air mass
White
