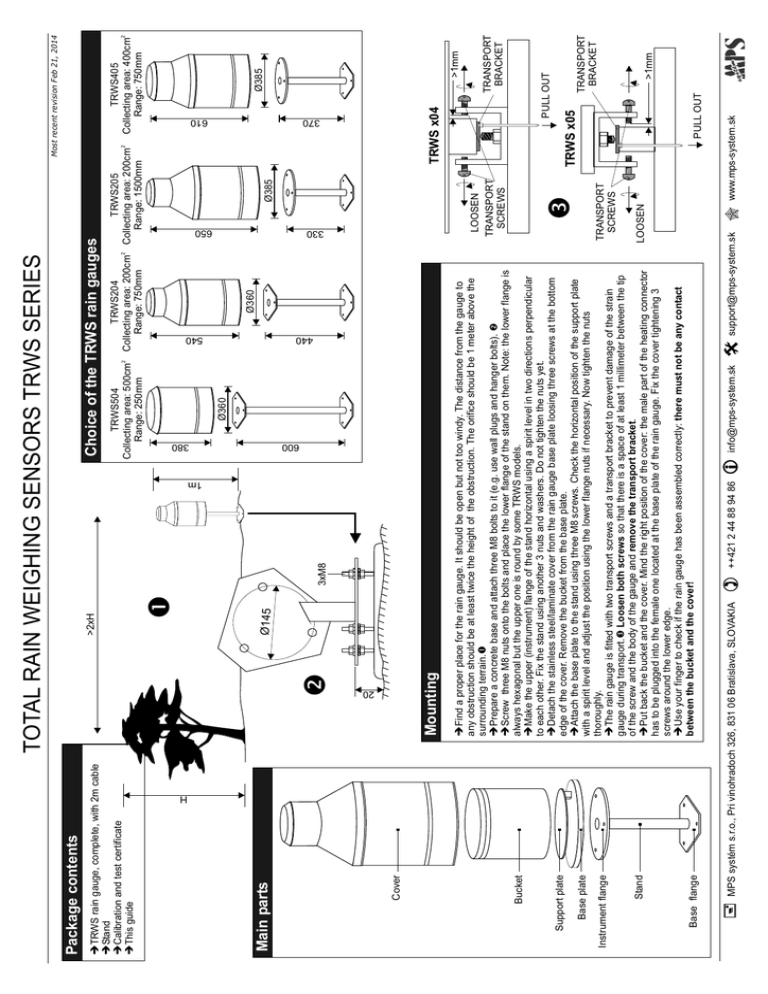

$ 3xM8 1m Ø360 ++421 2 44 88 94 86 [email protected] Ø385 LOOSEN TRANSPORT BRACKET >1mm Ø385 >1mm TRANSPORT BRACKET PULL OUT TRWS x05 PULL OUT TRWS x04 www.mps-system.sk TRANSPORT SCREWS LOOSEN TRANSPORT SCREWS [email protected] èFind a proper place for the rain gauge. It should be open but not too windy. The distance from the gauge to any obstruction should be at least twice the height of the obstruction. The orifice should be 1 meter above the surrounding terrain. èPrepare a concrete base and attach three M8 bolts to it (e.g. use wall plugs and hanger bolts). èScrew three M8 nuts onto the bolts and place the lower flange of the stand on them. Note: the lower flange is always hexagonal but the upper one is round by some TRWS models. èMake the upper (instrument) flange of the stand horizontal using a spirit level in two directions perpendicular to each other. Fix the stand using another 3 nuts and washers. Do not tighten the nuts yet. èDetach the stainless steel/laminate cover from the rain gauge base plate loosing three screws at the bottom edge of the cover. Remove the bucket from the base plate. èAttach the base plate to the stand using three M8 screws. Check the horizontal position of the support plate with a spirit level and adjust the position using the lower flange nuts if necessary. Now tighten the nuts thoroughly. èThe rain gauge is fitted with two transport screws and a transport bracket to prevent damage of the strain gauge during transport. Loosen both screws so that there is a space of at least 1 millimeter between the tip of the screw and the body of the gauge and remove the transport bracket. èPut back the bucket and the cover. Mind the right position of the cover: the male part of the heating connector has to be plugged into the female one located at the base plate of the rain gauge. Fix the cover tightening 3 screws around the lower edge. èUse your finger to check if the rain gauge has been assembled correctly: there must not be any contact between the bucket and the cover! Mounting Ø145 MPS systém s.r.o., Pri vinohradoch 326, 831 06 Bratislava, SLOVAKIA Base flange Stand Instrument flange Base plate Support plate Bucket Cover Main parts Ø360 TRWS405 Collecting area: 400cm2 Range: 750mm Most recent revision Feb 21, 2014 TRWS204 TRWS205 TRWS504 2 2 Collecting area: 500cm2 Collecting area: 200cm Collecting area: 200cm Range: 750mm Range: 1500mm Range: 250mm Choice of the TRWS rain gauges 380 600 >2xH 540 440 èTRWS rain gauge, complete, with 2m cable èStand èCalibration and test certificate èThis guide 650 330 Package contents H TOTAL RAIN WEIGHING SENSORS TRWS SERIES 20 610 370 DIP SWITCH SDI12 RS485 GRY BRN SHIELD RED BLU ORN VIO YEL GRN LOGGER 9600bps, 8 data bits, 1 stop bit, no parity RS485 HEATING VOLTAGE 10..15VDC OPERATING VOLTAGE 8..24VDC Red Blue Orange Violet Yellow Green Grey Brown Shield Wiring Positive operating voltage Negative operating voltage Positive heating voltage Negative heating voltage RS485+ / SDI-12 DATA RS485Contact output A Contact output B Ground TRWS [email protected] RED BLU ORN VIO GRY BRN SHIELD YEL GRN [email protected] 8..24VDC/15mAMAX 10..15VDC/0.8..1.3A 9600, 8 data bits, 1 stop bit, no parity 30VMAX/300mAMAX Ø360x540 / Ø360x380 / Ø385x650 / Ø385x610mm 8.0 / 8.0 / 9.5 / 9.5kg 2m -40..+70ºC 0..100% 1<CR><LF> Note: even though the 'M' and 'D' commands are implemented as well, it is strongly recommended to use the 'R' command to get data from the rain gauge. raw one-minute precipitation sum (0.185mm) (other items correspond to those in the basic message) accumulated precipitation sum (21.246mm) total weight (7795.146g) one-minute precipitation sum (0.134mm) sensor address (default '1') sensor address (default address is '1') LOGGER + - HEATING VOLTAGE 10..15VDC SDI-12 12V SDI-12 DATA SDI-12 GROUND + + - BRN www.mps-system.sk BRN GRY LOGGER A PULL-UP OR A PULL-DOWN RESISTOR MAY BE NECESSARY AS FOLOWS: +V +V GRY COUNTER INPUT 1 pulse per 0.01/0.1/1mm (selectable) HEATING VOLTAGE 10..15VDC OPERATING VOLTAGE 8..24VDC Connecting to a logger using the contact output sensor address Response: ++421 2 44 88 94 86 Operating power Heating power RS485 Contact output Dimensions (TRWS204 / 504 / 205 / 405) Weight (TRWS204 / 504 / 205 / 405) Cable length Operating temperature Operating humidity MPS systém s.r.o., Pri vinohradoch 326, 831 06 Bratislava, SLOVAKIA OK<CR><LF> <SOH>11D<STX>134<TAB>7995146<TAB>21246<TAB>185<ETX><CR><LF> raw one-minute precipitation sum (0.185mm) (other items correspond Zero the accumulated sum: to those in the basic message) <SYN>11CLRRS<CR> sensor address Specifications Response: Data request (extended message): <ENQ>11D<CR> accumulated precipitation sum (21.246mm) total weight (7795.146g) one-minute precipitation sum (0.134mm) sensor address (default '11') 1XR! <SOH>11<STX>134<TAB>7995146<TAB>21246<ETX><CR><LF> 1+0.134+7995.146+21.246+0.185<CR><LF> Response: Data request (extended message): 1R1! Zero the accumulated sum: sensor address (default address is '11') + + + - ORN VIO RED YEL BLU GRN GRY BRN SHIELD 1+0.134+7995.146+21.246<CR><LF> Response: Data request (basic message): 1R0! TRWS Connecting to a logger using the SDI-12 interface Response: Data request (basic message): <ENQ>11<CR> TRWS Connecting to a logger using the RS485 interface A TRWS rain gauge is delivered with serial interface selected according to your order (RS485 or SDI12). If necessary you can select the other interface by yourself: èOn the base plate remove the metal lid covering the electronics unscrewing two socket screws (a low-profile 4/ISO hex key is needed). èThere is a group of three dip-switches on the PCB inside. Switch all the switches to either RS485 or SDI12 position. èReplace the lid, tighten the screws and switch the instrument off and on so that the change becomes valid. Note: The contact output functionality is not affected by selecting the serial interface. Selecting serial interface RS485 TOTAL RAIN WEIGHING SENSORS TRWS SERIES SDI12
