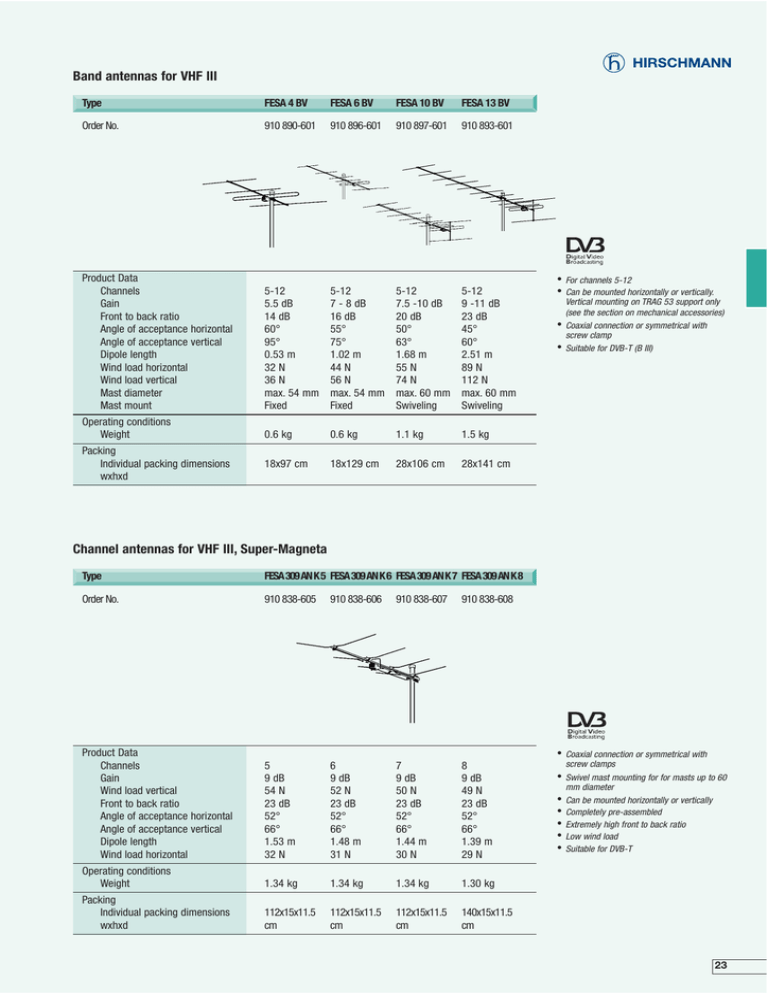

FESA 4 BV, 6 BV, 10 BV, 13 BV

Band antennas for VHF III
Type
FESA 4 BV
FESA 6 BV
FESA 10 BV
FESA 13 BV
Order No.
910 890-601
910 896-601
910 897-601
910 893-601
Product Data
Channels
Gain
Front to back ratio
Angle of acceptance horizontal
Angle of acceptance vertical
Dipole length
Wind load horizontal
Wind load vertical
Mast diameter
Mast mount
5-12
5.5 dB
14 dB
60°
95°
0.53 m
32 N
36 N
max. 54 mm
Fixed
5-12
7 - 8 dB
16 dB
55°
75°
1.02 m
44 N
56 N
max. 54 mm
Fixed
5-12
7.5 -10 dB
20 dB
50°
63°
1.68 m
55 N
74 N
max. 60 mm
Swiveling
5-12
9 -11 dB
23 dB
45°
60°
2.51 m
89 N
112 N
max. 60 mm
Swiveling
Operating conditions
Weight
0.6 kg
0.6 kg
1.1 kg
1.5 kg
18x97 cm
18x129 cm
28x106 cm
28x141 cm
Packing
Individual packing dimensions
wxhxd
i For channels 5-12
i Can be mounted horizontally or vertically.
Vertical mounting on TRAG 53 support only
(see the section on mechanical accessories)
i Coaxial connection or symmetrical with
screw clamp
i Suitable for DVB-T (B III)
Channel antennas for VHF III, Super-Magneta
Type
FESA 309 AN K 5 FESA 309 AN K 6 FESA 309 AN K 7 FESA 309 AN K 8
Order No.
910 838-605
910 838-606
910 838-607
910 838-608
Product Data
Channels
Gain
Wind load vertical
Front to back ratio
Angle of acceptance horizontal
Angle of acceptance vertical
Dipole length
Wind load horizontal
5
9 dB
54 N
23 dB
52°
66°
1.53 m
32 N
6
9 dB
52 N
23 dB
52°
66°
1.48 m
31 N
7
9 dB
50 N
23 dB
52°
66°
1.44 m
30 N
8
9 dB
49 N
23 dB
52°
66°
1.39 m
29 N
Operating conditions
Weight
1.34 kg
1.34 kg
1.34 kg
1.30 kg
Packing
Individual packing dimensions
wxhxd
112x15x11.5
cm
112x15x11.5
cm
112x15x11.5
cm
140x15x11.5
cm
i Coaxial connection or symmetrical with
screw clamps
i Swivel mast mounting for for masts up to 60
mm diameter
i Can be mounted horizontally or vertically
i Completely pre-assembled
i Extremely high front to back ratio
i Low wind load
i Suitable for DVB-T
