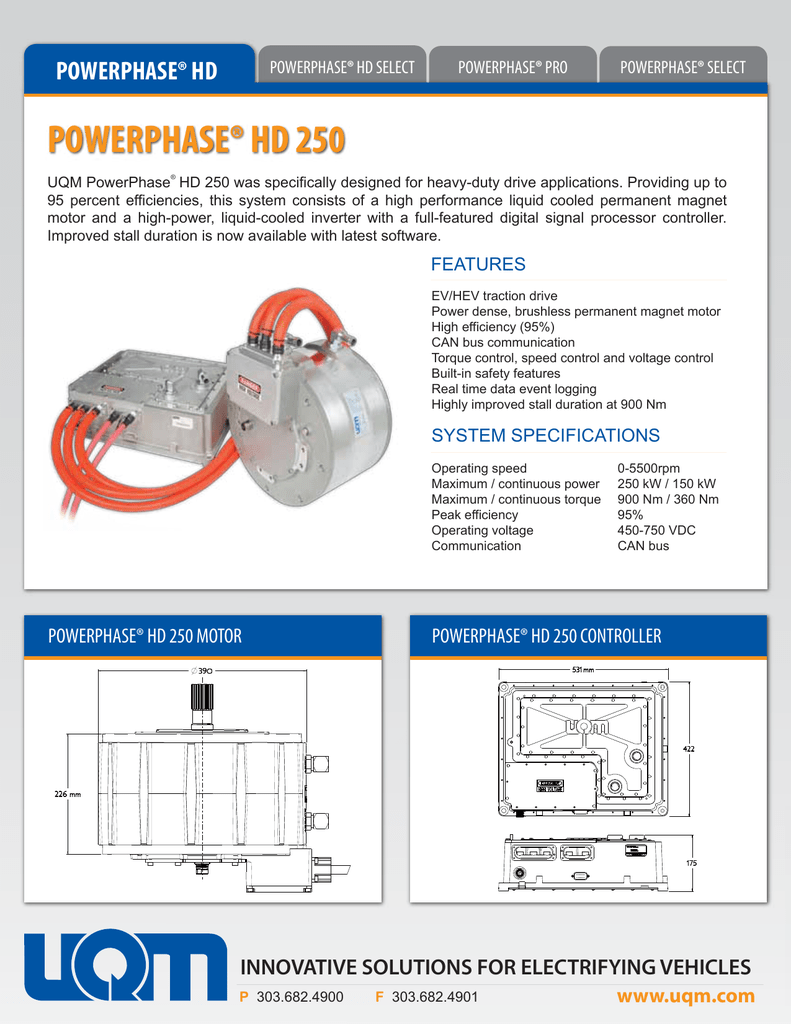

POWERPHASE® HD 250
UQM PowerPhase HD 250 was specifically designed for heavy-duty drive applications. Providing up to
95 percent efficiencies, this system consists of a high performance liquid cooled permanent magnet
motor and a high-power, liquid-cooled inverter with a full-featured digital signal processor controller.
Improved stall duration is now available with latest software.
®
FEATURES
EV/HEV traction drive
Power dense, brushless permanent magnet motor
High efficiency (95%)
CAN bus communication
Torque control, speed control and voltage control
Built-in safety features
Real time data event logging
Highly improved stall duration at 900 Nm
SYSTEM SPECIFICATIONS
Operating speed
Maximum / continuous power
Maximum / continuous torque
Peak efficiency
Operating voltage
Communication
POWERPHASE® HD 250 MOTOR
0-5500rpm
250 kW / 150 kW
900 Nm / 360 Nm
95%
450-750 VDC
CAN bus
POWERPHASE® HD 250 CONTROLLER
INNOVATIVE SOLUTIONS FOR ELECTRIFYING VEHICLES
P 303.682.4900
F 303.682.4901
www.uqm.com
POWERPHASE® HD 250
POWERPHASE® HD 220
POWERPHASE® HD 950T
MOTOR PERFORMANCE
CONTROLLER PERFORMANCE
SPECIFICATIONS
OPERATING VOLTAGE
Peak Power
Continuous power
Peak torque
Continuous torque
Maximum efficiency
Power density
335 hp
201 hp
664 lbf ft
265 lbf ft
95%
1.8 hp/lb
Operating voltage input range
Minimum voltage
Nominal input voltage
Maximum voltage
DC current limitation, motoring
250 kW
150 kW
900 Nm
360 Nm
3.0 kW/kg
DIGITAL SIGNAL PROCESSOR
DIMENSIONS
Length
Diameter
Weight
8.9 in
15.4 in
187 lb
Nominal input voltage
Input supply voltage range
Input supply current range
226 mm
390 mm
85 kg
Minimum coolant flow
Maximum inlet temperature
90
75
50
55
60
Motor Mode^
INVERTER TYPE
Test Date: 08/07/2013
700
92
90
85
80
87.5
65
50
70
93
94
55
94
75
.5
87
92
60
0
70
50
55
65
50
70
100
150
75
85
80
70
200
93
92
87.5
80
250
Length
Width
Height
Weight
94
90
85
DIMENSIONS
Continuous
93
65
200
100
PWM & phase advance
IGBT
3 to 12 kHz
14 W
95
300
0
Control type
Power device
Switching frequency
Standby power
92
60
Torque (Nm)
600
400
10 l/min 50/50 water/glycol
140° F 60° C
PowerPhase HD 250
87.5
85
70
80
65
900
800
12 VDC or 24 VDC
9 to 35 VDC
1 to 5 A
LIQUID COOLING SYSTEM
PERFORMANCE CURVE
500
450-750 VDC
450 VDC
600 VDC
750 VDC
500 A
65
300
90
87.5
75
350
80
70
400
450
Speed (rpm/10)
500
85
75
550
04/07/2015 Rev 5
20.9 in
16.6 in
6.9 in
88.0 lb
531 mm
422 mm
175 mm
40kg
To view additional efficiency maps, please contact us.
