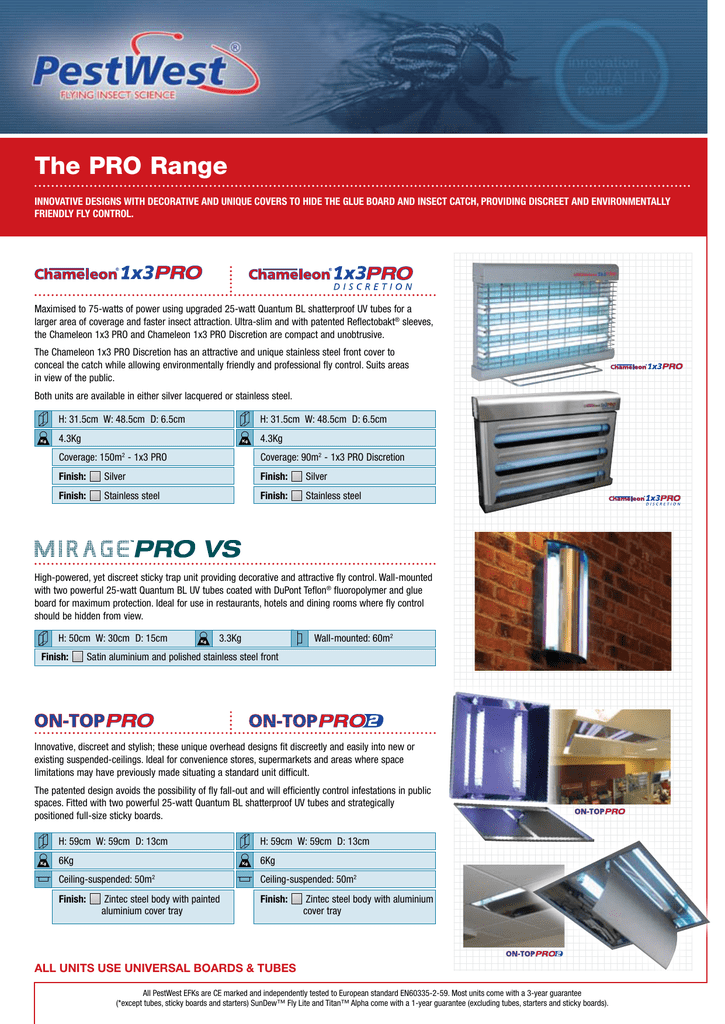

The PRO Range - InsektWarszawa

The PRO Range
Innovative designs with decorative and unique covers to hide the glue board and insect catch, providing discreet and environmentally
friendly fly control.
Maximised to 75-watts of power using upgraded 25-watt Quantum BL shatterproof UV tubes for a
larger area of coverage and faster insect attraction. Ultra-slim and with patented Reflectobakt® sleeves,
the Chameleon 1x3 PRO and Chameleon 1x3 PRO Discretion are compact and unobtrusive.
The Chameleon 1x3 PRO Discretion has an attractive and unique stainless steel front cover to
conceal the catch while allowing environmentally friendly and professional fly control. Suits areas
in view of the public.
Both units are available in either silver lacquered or stainless steel.
H: 31.5cm W: 48.5cm D: 6.5cm
H: 31.5cm W: 48.5cm D: 6.5cm
4.3Kg
4.3Kg
Coverage: 150m2 - 1x3 PRO
Coverage: 90m2 - 1x3 PRO Discretion
Finish:
Silver
Finish:
Silver
Finish:
Stainless steel
Finish:
Stainless steel
High-powered, yet discreet sticky trap unit providing decorative and attractive fly control. Wall-mounted
with two powerful 25-watt Quantum BL UV tubes coated with DuPont Teflon® fluoropolymer and glue
board for maximum protection. Ideal for use in restaurants, hotels and dining rooms where fly control
should be hidden from view.
H: 50cm W: 30cm D: 15cm
Finish:
3.3Kg
Wall-mounted: 60m2
Satin aluminium and polished stainless steel front
Innovative, discreet and stylish; these unique overhead designs fit discreetly and easily into new or
existing suspended-ceilings. Ideal for convenience stores, supermarkets and areas where space
limitations may have previously made situating a standard unit difficult.
The patented design avoids the possibility of fly fall-out and will efficiently control infestations in public
spaces. Fitted with two powerful 25-watt Quantum BL shatterproof UV tubes and strategically
positioned full-size sticky boards.
H: 59cm W: 59cm D: 13cm
H: 59cm W: 59cm D: 13cm
6Kg
6Kg
Ceiling-suspended: 50m
Ceiling-suspended: 50m2
Finish:
2
Zintec steel body with painted
aluminium cover tray
Finish:
Zintec steel body with aluminium
cover tray
All units use universal boards & tubes
All PestWest EFKs are CE marked and independently tested to European standard EN60335-2-59. Most units come with a 3-year guarantee
(*except tubes, sticky boards and starters) SunDew™ Fly Lite and Titan™ Alpha come with a 1-year guarantee (excluding tubes, starters and sticky boards).
Professional Electronic Fly Killers
PestWest Professional Electronic Fly Killers offer the ultimate control, complying with the exacting standards of the food industry.
Ideal for food manufacturing, processing and packaging factories. Two 40-watt Quantum BL tubes
coated with DuPont Teflon® fluoropolymer.
H: 43.2cm W: 68cm D: 15.7cm
10Kg
Wall-mounted: 240m2
Ceiling-suspended/Freestanding: 480m2
Finish:
White
Stainless Steel
Compact and high powered, ideal for use in food processing areas, shops and kitchens. Three 15-watt
Quantum BL tubes coated with DuPont Teflon® fluoropolymer.
H: 43.2cm W: 52.8cm D: 15.7cm
Ceiling-suspended/Freestanding: 280m
Finish:
White
9Kg
Wall-mounted: 140m2
2
Stainless Steel
Retail Range
To complement the PestWest range of commercial and professional units the Retail units have been designed specifically for areas
where fly control should be hidden from view, with decorative and unique front covers that hide the glue board and insect catch.
Discreet and environmentally friendly sticky trap; ideal for use in cafés, bars, restaurants, offices and
even in the home. All stainless steel body with choice of front covers of either stainless steel or white
for attractive glow. Can be wall-mounted or placed on table top.
H: 30cm W: 25.5cm D: 10cm
Freestanding/Wall-mounted: 40m
Finish:
White
Stainless Steel
2.5Kg
2
Professional Sticky Traps
PestWest Professional Sticky Traps are high quality units combining advanced glue board technology with slim-line designs.
Attractive, ultra-slim, wall-mounted (free standing bracket available), compact and unobtrusive, this unit
is ideal for use in food preparation areas. Two 15-watt powerful Quantum BL tubes coated with DuPont
Teflon® fluoropolymer. Available in white or stainless steel.
H: 31.5cm W: 48.5cm D: 6.5cm
4.3Kg
Wall-mounted/Freestanding: 90m
2
Finish:
White
Stainless Steel
Ceiling-suspended: able to protect large open areas. 360° attraction with four 15-watt Quantum BL
tubes coated with DuPont Teflon® fluoropolymer and two full-size sticky boards. Available in white or
stainless steel.
H: 31.5cm W: 48.5cm D: 12.5cm
Wall-mounted/Freestanding: 180m
Finish:
White
6Kg
2
Stainless Steel
Attractive, wall-mounted unit; the perfect choice for areas where fly control should be discreet, e.g.
restaurants and other eating areas. Disguised as a wall light with full-size sticky board and 15-watt
Quantum BL tube coated with DuPont Teflon® fluoropolymer hidden from view.
H: 21cm W: 47cm D: 17cm
3.7Kg
Wall-mounted: 40m2
Finish:
White
Silver
Magnolia
Commercial Range
The Commercial units are ideal for smaller premises, shops and even for domestic use. With additional design features they provide you
with protection far above what their size and price would indicate.
With a wrap-around chrome guard giving 360º protection, this all-metal unit offers features and
performance far beyond its price. Two powerful 15-watt Quantum BL UV tubes coated with DuPont
Teflon® fluoropolymer gives protection up to 180m2. Ideal for larger kitchens, shops, cafés and all
commercial uses.
H: 33cm W: 49.5cm D: 13.5cm
Ceiling-suspended/Freestanding: 180m
Finish:
White
7.5Kg
Wall-mounted: 90m2
2
Stainless Steel
A very powerful, yet compact machine with two powerful 15-watt UV tubes giving coverage over
160m2. Ideal for shops, kitchens, cafés and take-aways.
H: 30.5cm W: 35cm D: 15cm
Ceiling-suspended/Freestanding: 160m2
Finish:
White
4Kg
Wall-mounted: 80m2
Specialist Range
PestWest’s specialist range provides special safety measures such as high IP ratings and flameproof electrical enclosures giving you
protection against the most hazardous and potentially dangerous areas.
Designed for use in potentially explosive atmospheres e.g. sugar refineries, distilleries, petrochemical,
and pharmaceutical industries. Suitable for Zones 21 and 22 - concentration of dust/powder and Zones
1 and 2 - flammable gases/vapour in the atmosphere. Two powerful 18-watt Quantum BL UV tubes
coated with DuPont Teflon® fluoropolymer and two full-size glue boards. 304 brushed stainless steel
and marine grade aluminium alloy construction with glass enclosure provides effective fly control.
H: 80cm W: 90cm D: 30cm
14.5Kg
Wall-mounted: 120m2
Finish:
Stainless Steel and aluminium alloy
Explosion-proof for use where the air carries a large amount of dust, this all stainless steel unit is IP65
and EX rated to PREN 50281-1-1 in addition to EN 60335-2-59. Suitable for zone 22 areas satisfying
EN 50014:1994. Four 40-watt Quantum BL tubes coated with DuPont Teflon® fluoropolymer backed by
Reflectobakt® sleeves and large double-sided board.
H: 61.5cm W: 63.5cm D: 16.5cm
15.5Kg
Ceiling-suspended: 440m2
Finish:
Stainless Steel
Large capacity sticky trap unit for open industrial areas. Ceiling-suspended with four 40-watt Quantum
BL UV tubes coated with DuPont Teflon® fluoropolymer backed with Reflectobakt® sleeves to protect
over 440m2. Advanced electronic ballast for lower running costs.
H: 61.5cm W: 63.5cm D: 16.5cm
Ceiling-suspended: 440m
Finish:
11.75Kg
2
White
All stainless steel body, grids and guards. Splash proof, draught proof and IP44 rated. Two 40-watt
shatterproof Quantum BL tubes coated with DuPont Teflon® fluoropolymer.
H: 44.5cm W: 67cm D: 20.5cm
12.7Kg
Ceiling-suspended/Freestanding: 480m
Finish:
Wall-mounted: 240m2
2
Stainless Steel
Stainless steel unit suitable for steam-cleaned, hosed down or corrosive environments e.g. dairies,
abattoirs and industrial kitchens. IP66 rated. Two powerful 15-watt Quantum BL tubes coated with
DuPont Teflon® fluoropolymer.
H: 31cm W: 50cm D: 10cm
Wall-mounted/Freestanding: 90m
Finish:
6.1Kg
2
Stainless Steel
Distributed by:
PestWest Electronics Limited is a member of the Killgerm Group of companies
7377/MAR08
