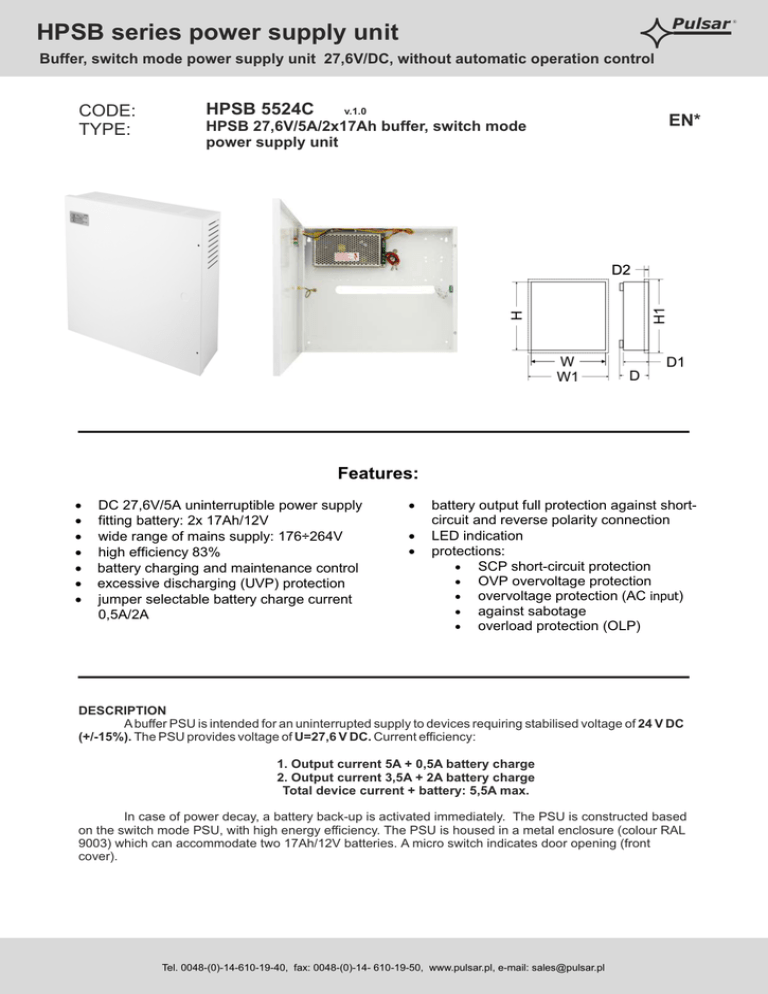

HPSB series power supply unit

Pulsar
HPSB series power supply unit
Buffer, switch mode power supply unit 27,6V/DC, without automatic operation control
CODE:
TYPE:
HPSB 5524C
v.1.0
HPSB 27,6V/5A/2x17Ah buffer, switch mode
power supply unit
EN*
Features:
· DC 27,6V/5A uninterruptible power supply
· fitting battery: 2x 17Ah/12V
· wide range of mains supply: 176÷264V
· high efficiency 83%
· battery charging and maintenance control
· excessive discharging (UVP) protection
· jumper selectable battery charge current
0,5A/2A
·
·
·
battery output full protection against shortcircuit and reverse polarity connection
LED indication
protections:
· SCP short-circuit protection
· OVP overvoltage protection
· overvoltage protection (AC input)
· against sabotage
· overload protection (OLP)
DESCRIPTION
A buffer PSU is intended for an uninterrupted supply to devices requiring stabilised voltage of 24 V DC
(+/-15%). The PSU provides voltage of U=27,6 V DC. Current efficiency:
1. Output current 5A + 0,5A battery charge
2. Output current 3,5A + 2A battery charge
Total device current + battery: 5,5A max.
In case of power decay, a battery back-up is activated immediately. The PSU is constructed based
on the switch mode PSU, with high energy efficiency. The PSU is housed in a metal enclosure (colour RAL
9003) which can accommodate two 17Ah/12V batteries. A micro switch indicates door opening (front
cover).
wyjście TAMPER : przewody 30cm
Tel. 0048-(0)-14-610-19-40, fax: 0048-(0)-14- 610-19-50, www.pulsar.pl, e-mail: [email protected]
®
Pulsar
HPSB series power supply unit
Buffer, switch mode power supply unit 27,6V/DC, without automatic operation control
SPECIFICATIONS
PSU type
Mains supply
Current up to
Supply power
Efficiency
Output voltage
Output current
Output current tAMB<30°C
Output current tAMB=40°C
Voltage adjustment range
Ripple
Battery charge current
Short-circuit protection SCP
Overload protection OLP
Overvoltage protection OVP
A (EPS - External Power Source)
176÷264V AC 50÷60Hz
0,9A@230VAC
100W max.
83%
27,6V DC – buffer operation
19V÷27,0V DC – battery-assisted operation
5 A + 0,5A battery charge
3,5 A + 2A battery charge
5,0 A + 0,5A battery charge - refer to chart 1
3,5 A + 2,0A battery charge - refer to chart 1
3,3 A + 0,5A battery charge - refer to chart 1
1,8 A + 2,0A battery charge - refer to chart 1
24÷28VDC
150mV p-p max.
0,5A or 2A max. @ 2x 17Ah (± 5%) – jumper selectable
electronic
PTC polymer fuse
U>115% ÷ 150% of the output voltage (set), power cut off,
automatic return
Excessive discharge protection UVP
U<19 V (± 5%) – disconnection of battery terminal
LED indication
Operating conditions
Enclosure
Enclosure dimensions
Net/gross weight
Fitting battery
Closing:
Sabotage protection
Yes
2nd environmental class, -10 oC÷40 oC
Metal, IP20, colour RAL9003
405 x 355 x 90+8 (400 x 350 x 90) (WxHxD)
3,7kg / 4,0kg
2x 17Ah/12V (SLA) max.
Cheese head screw x 1 (at the front), (lock assembly possible)
1x microswitch: opening the enclosure 0.5 A@50 V/DC max.
NC
Space between the device and the wall (ground) 8 mm
PSU cooling: convection,
Connectors:
Power-supply: Φ0,63÷2,5 I/O PCB: Φ0,41÷1,63,
Battery output BAT: 6,3F-2,5/40cm.
Notes
CHART 1. Acceptable output current from the
PSU depending on ambient temperature.
wyjście TAMPER : przewody 30cm
Tel. 0048-(0)-14-610-19-40, fax: 0048-(0)-14- 610-19-50, www.pulsar.pl, e-mail: [email protected]
®
Pulsar
HPSB series power supply unit
Buffer, switch mode power supply unit 27,6V/DC, without automatic operation control
Optional configurations:
HPSB5524C
Buffer power supply unit HPSB 27,6V/5x1A/2x17Ah.
- HPSB5524C + LB8 5x1A (AWZ579 lub AWZ580) + 2x17Ah
AC
230V
LB8
27,6V
27,6V
5x1A
DC
27,6V
Battery
2x17Ah
LB8
Buffer power supply unit HPSB 27,6V/10x0,5A/2x17Ah.
27,6V
5x0,5A
HPSB5524C
- HPSB5524C + 2xLB8 10x0,5A (AWZ578 lub AWZ580) +
2x17Ah
AC
230V
27,6V
LB8
DC
27,6V
5x0,5A
27,6V
Battery
2x17Ah
LB8
Buffer power supply unit HPSB 27,6V/16x0,3A/2x17Ah.
- HPSB5524C + 2xLB8 16x0,3A (AWZ577 lub AWZ580) +
2x17Ah
27,6V
8x0,3A
HPSB5524C
230V
AC
27,6V
LB8
DC
27,6V
8x0,3A
27,6V
Battery
2x17Ah
RN25024
Buffer power supply unit HPSB 27,6V/2x24V/2x2,5A/2x17Ah.
27,6V
HPSB5524C
- HPSB5524C + 2 x RN25024(27,6V/24V) + 2x17 Ah
230V AC
24V
27,6V
DC
RN25024
27,6V
27,6V
Battery
2x17Ah
- HPSB5524C + 2 x RN25024(27,6V/24V) +
2xLB4 8x0,5A (AWZ574 lub AWZ576) + 2x17 Ah
HPSB5524C
230V AC
27,6V
27,6V
LB4
24V
24V
4x0,5A
24V
DC
RN25024
27,6V
27,6V
Battery
2x17Ah
24V/2,5A
24V
RN25024
Buffer power supply unit HPSB 27,6V/2x24V/8x0,5A/2x17Ah.
24V/2,5A
24V
wyjście TAMPER : przewody 30cm
Tel. 0048-(0)-14-610-19-40, fax: 0048-(0)-14- 610-19-50, www.pulsar.pl, e-mail: [email protected]
LB4
24V
24V
4x0,5A
®
Pulsar
HPSB series power supply unit
®
Buffer, switch mode power supply unit 27,6V/DC, without automatic operation control
Optional configurations:
Buffer power supply unit HPSB 27,6V/2x24V/10x0,5A/2x17Ah.
RN25024
- HPSB5524C + 2 x RN25024(27,6V/24V)
+ 2xLB8 10x0,5A (AWZ578 lub AWZ580) + 2x17 Ah
27,6V
HPSB5524C
230V AC
LB8
24V
24V
5x0,5A
24V
27,6V
DC
RN25024
27,6V
27,6V
Battery
2x17Ah
LB8
24V
24V
5x0,5A
24V
Buffer power supply unit HPSB 27,6V/2x24V/16x0,3A/2x17Ah.
RN25024
- HPSB5524C + 2 x RN25024(27,6V/24V) +
2xLB8 16x0,3A (AWZ577 lub AWZ580) + 2x17 Ah
27,6V
HPSB5524C
230V AC
LB8
24V
24V
8x0,3A
24V
27,6V
DC
RN25024
27,6V
27,6V
Battery
2x17Ah
LB8
24V
24V
8x0,3A
24V
DCDC20
Buffer power supply unit HPSB 27,6V/3x5V÷18V/3x2A÷1,3A/2x17Ah.
DC
- HPSB5524C + 3xDCDC20 (3x5V÷18V) + 2x17Ah
5V÷18V
DC 2A÷1,3A
DCDC20
HPSB5524C
230V AC
27,6V
DC
5V÷18V
DC 2A÷1,3A
DC
DCDC20
27,6V
Battery
2x17Ah
DC
5V÷18V
DC 2A÷1,3A
Buffer power supply unit HPSB 27,6V/3x5V÷18V/3x2A÷1,3A/12x0,5A/2x17Ah.
LB4
DCDC20
- HPSB5524C + 3xDCDC20 (3x5V÷18V) +
3xLB4 12x0,5A (AWZ574 lub AWZ576) + 2x17Ah
DC
5V÷18V
DC
HPSB5524C
230V AC
27,6V
27,6V
5V÷18V
DC
DC
Battery
2x17Ah
LB4
DCDC20
DC
4x5V÷18V
4x0,5A
2A÷1,3A
LB4
DCDC20
DC
5V÷18V
DC
4x5V÷18V
4x0,5A
2A÷1,3A
2A÷1,3A
wyjście TAMPER : przewody 30cm
Tel. 0048-(0)-14-610-19-40, fax: 0048-(0)-14- 610-19-50, www.pulsar.pl, e-mail: [email protected]
4x5V÷18V
4x0,5A
