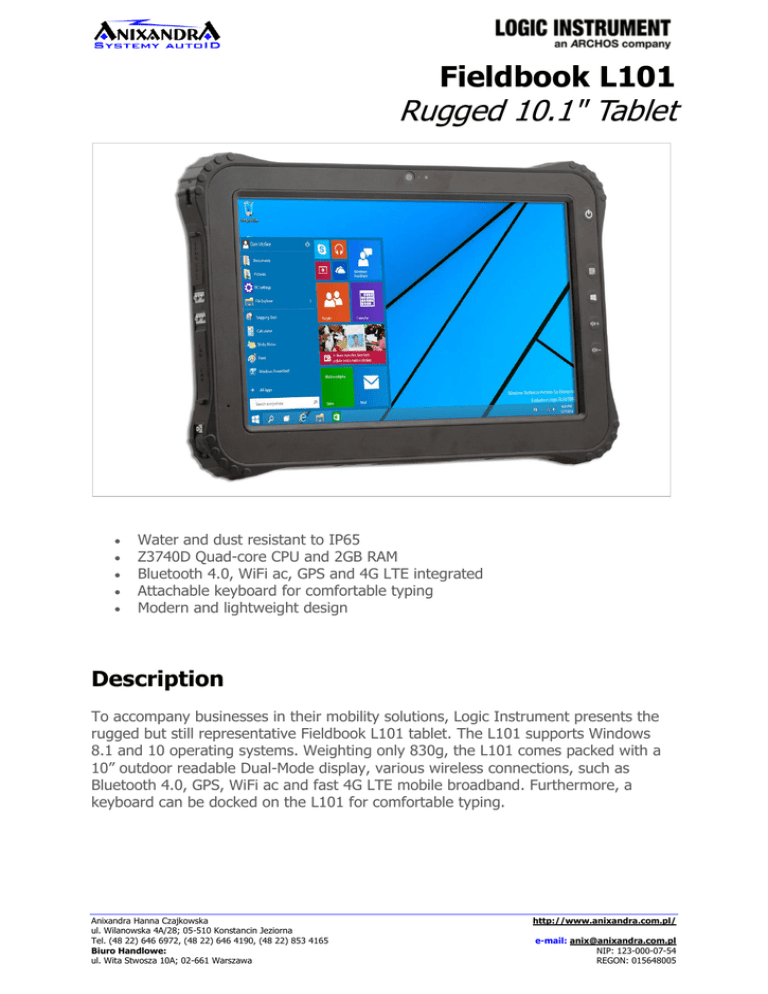

Rugged 10.1" Tablet

Fieldbook L101
Rugged 10.1" Tablet





Water and dust resistant to IP65
Z3740D Quad-core CPU and 2GB RAM
Bluetooth 4.0, WiFi ac, GPS and 4G LTE integrated
Attachable keyboard for comfortable typing
Modern and lightweight design
Description
To accompany businesses in their mobility solutions, Logic Instrument presents the
rugged but still representative Fieldbook L101 tablet. The L101 supports Windows
8.1 and 10 operating systems. Weighting only 830g, the L101 comes packed with a
10” outdoor readable Dual-Mode display, various wireless connections, such as
Bluetooth 4.0, GPS, WiFi ac and fast 4G LTE mobile broadband. Furthermore, a
keyboard can be docked on the L101 for comfortable typing.
Anixandra Hanna Czajkowska
ul. Wilanowska 4A/28; 05-510 Konstancin Jeziorna
Tel. (48 22) 646 6972, (48 22) 646 4190, (48 22) 853 4165
Biuro Handlowe:
ul. Wita Stwosza 10A; 02-661 Warszawa
http://www.anixandra.com.pl/
e-mail: [email protected]
NIP: 123-000-07-54
REGON: 015648005
Technical Details
Operating System
Windows 8.1 Industry Pro, 64 bit
Windows 10 IoT
CPU
Intel Baytrail-T Z3740D
Quad-Core CPU with up to 1.83 GHz
Intel HD Graphic (Gen7)
Memory /
Storage
2GB / 64GB + micro SD
Display & Touch
10.1” screen with 1280x800 pixels
Tempered Glass
10-finger capacitive multi-touch
Dual-Mode with Touch and Digitizer
Connectivity
Dual-Band WiFi a/b/g/n/ac
Bluetooth 4.0
GPS & Gallileo
4G
Interfaces
2x USB 2.0 type A (host)
1 x 3.5mm Audio jack 1 x Micro HDMI 1.4a
1 x micro SD (SDHC/SDXC)
1 x Micro SIM
1 x DC-In
1 x Docking connector
Cameras
5M Camera with LED flash (rear side)
2M Camera (front side)
Battery
8000 mAh
Dimensions
268x184x13 mm
Weight
837g
Environment
IP65
0.8m drop resistant on concrete
Operating temp. -20° to +50°C Storage temp. -30° to +70°C
95% ethyl alcohol resistant
