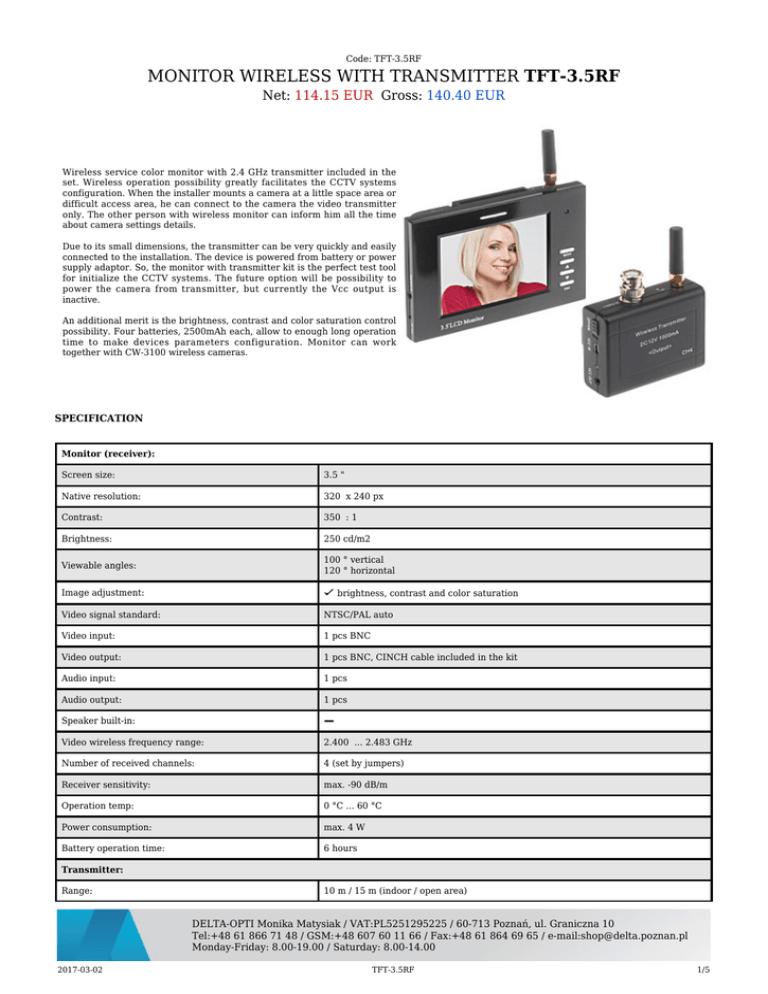

Code: TFT-3.5RF
MONITOR WIRELESS WITH TRANSMITTER TFT-3.5RF
Net: 114.15 EUR Gross: 140.40 EUR
Wireless service color monitor with 2.4 GHz transmitter included in the
set. Wireless operation possibility greatly facilitates the CCTV systems
configuration. When the installer mounts a camera at a little space area or
difficult access area, he can connect to the camera the video transmitter
only. The other person with wireless monitor can inform him all the time
about camera settings details.
Due to its small dimensions, the transmitter can be very quickly and easily
connected to the installation. The device is powered from battery or power
supply adaptor. So, the monitor with transmitter kit is the perfect test tool
for initialize the CCTV systems. The future option will be possibility to
power the camera from transmitter, but currently the Vcc output is
inactive.
An additional merit is the brightness, contrast and color saturation control
possibility. Four batteries, 2500mAh each, allow to enough long operation
time to make devices parameters configuration. Monitor can work
together with CW-3100 wireless cameras.
SPECIFICATION
Monitor (receiver):
Screen size:
3.5 "
Native resolution:
320 x 240 px
Contrast:
350 : 1
Brightness:
250 cd/m2
Viewable angles:
100 ° vertical
120 ° horizontal
Image adjustment:
brightness, contrast and color saturation
Video signal standard:
NTSC/PAL auto
Video input:
1 pcs BNC
Video output:
1 pcs BNC, CINCH cable included in the kit
Audio input:
1 pcs
Audio output:
1 pcs
Speaker built-in:
Video wireless frequency range:
2.400 ... 2.483 GHz
Number of received channels:
4 (set by jumpers)
Receiver sensitivity:
max. -90 dB/m
Operation temp:
0 °C ... 60 °C
Power consumption:
max. 4 W
Battery operation time:
6 hours
Transmitter:
Range:
10 m / 15 m (indoor / open area)
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-02
TFT-3.5RF
1/5
Number of channels:
1
Modulation:
FM
Battery power supply:
• Ni-MH batteries : 4x2500 mAh (included)
• 12 V DC / 1500 mA (power adapter included)
• built-in battery
• 12 V DC (power adapter included)
Weight:
0.150 kg
0.120 kg
Dimensions:
120 x 84 x 28 mm
75 x 70 x 37 mm
Guarantee:
2 years
PRESENTATION
Monitor can be hand mounted without movement limitations:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-02
TFT-3.5RF
2/5
Sides view:
Top view (jumpers to set received channel visible):
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-02
TFT-3.5RF
3/5
Rear view (place for batteries):
Transmitter (power connectors and switch visible):
Transmitter - top view:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-02
TFT-3.5RF
4/5
Transmitter can be clip using the clip:
Attention! USB power adapter voltage is equal DC 12V. Don't use this power adapter with other USB devices:
OUR OPINIONS
Very good image quality with high contrast.
PACKAGE PARAMETERS
Dimensions (L x W x H): 305x150x60 mm Package: Karton Gross Weight: 1.08 kg
