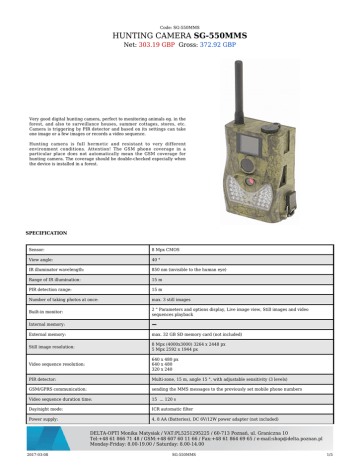

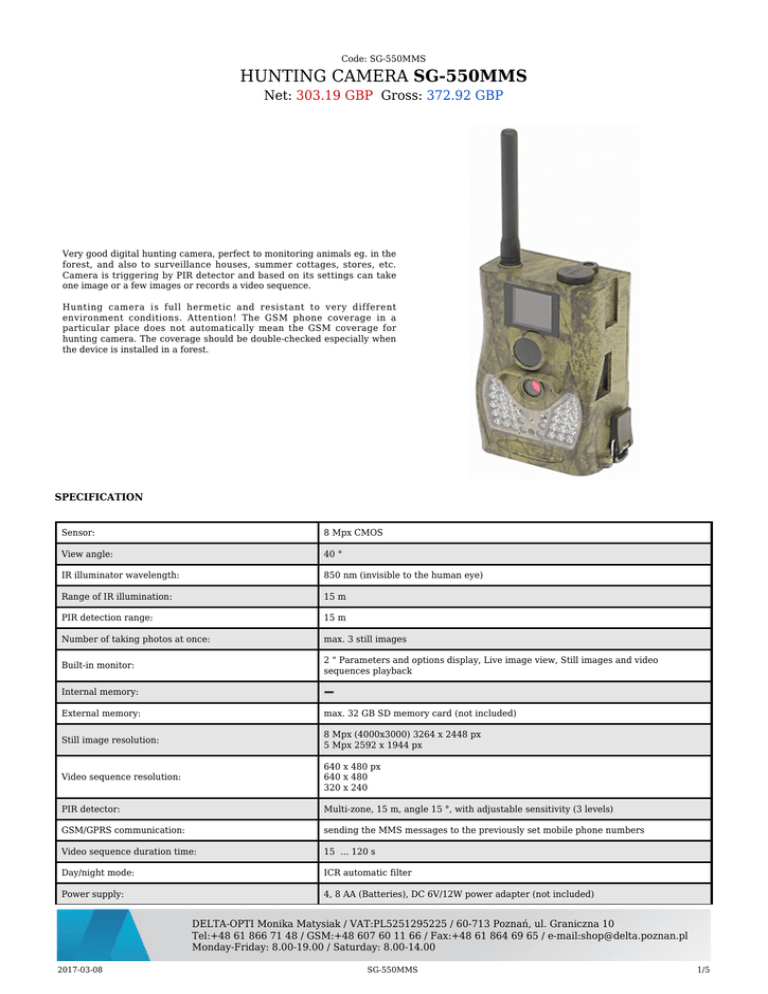

hunting camera sg-550mms

Code: SG-550MMS
HUNTING CAMERA SG-550MMS
Net: 303.19 GBP Gross: 372.92 GBP
Very good digital hunting camera, perfect to monitoring animals eg. in the
forest, and also to surveillance houses, summer cottages, stores, etc.
Camera is triggering by PIR detector and based on its settings can take
one image or a few images or records a video sequence.
Hunting camera is full hermetic and resistant to very different
environment conditions. Attention! The GSM phone coverage in a
particular place does not automatically mean the GSM coverage for
hunting camera. The coverage should be double-checked especially when
the device is installed in a forest.
SPECIFICATION
Sensor:
8 Mpx CMOS
View angle:
40 °
IR illuminator wavelength:
850 nm (invisible to the human eye)
Range of IR illumination:
15 m
PIR detection range:
15 m
Number of taking photos at once:
max. 3 still images
Built-in monitor:
2 " Parameters and options display, Live image view, Still images and video
sequences playback
Internal memory:
External memory:
max. 32 GB SD memory card (not included)
Still image resolution:
8 Mpx (4000x3000) 3264 x 2448 px
5 Mpx 2592 x 1944 px
Video sequence resolution:
640 x 480 px
640 x 480
320 x 240
PIR detector:
Multi-zone, 15 m, angle 15 °, with adjustable sensitivity (3 levels)
GSM/GPRS communication:
sending the MMS messages to the previously set mobile phone numbers
Video sequence duration time:
15 ... 120 s
Day/night mode:
ICR automatic filter
Power supply:
4, 8 AA (Batteries), DC 6V/12W power adapter (not included)
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-08
SG-550MMS
1/5
Stand-by power consumption:
220 µA
Operating power consumption:
220 mA
Operation temp:
-20 °C ... 60 °C
Permissible relative humidity:
5 ... 90 % (non-condensing)
Dimensions:
161 x 101 x 64 mm
Weight:
0.39 kg
Guarantee:
2 years
PRESENTATION
Front view (IR illuminator, PIR detector, camera):
Side view:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-08
SG-550MMS
2/5
Mounting side view:
Top view:
Device connectors are visible after remove the bottom cover:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-08
SG-550MMS
3/5
Bottom view (place for batteries):
In the kit:
OUR TESTS
Consecutive frames of camera image. At full zoom the car plates are readable from ca. 50 m distance:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-08
SG-550MMS
4/5
OUR OPINIONS
Very long operation time with battery supply.
PACKAGE PARAMETERS
Dimensions (L x W x H): 170x125x100 mm Package: Karton Gross Weight: 0.64 kg
