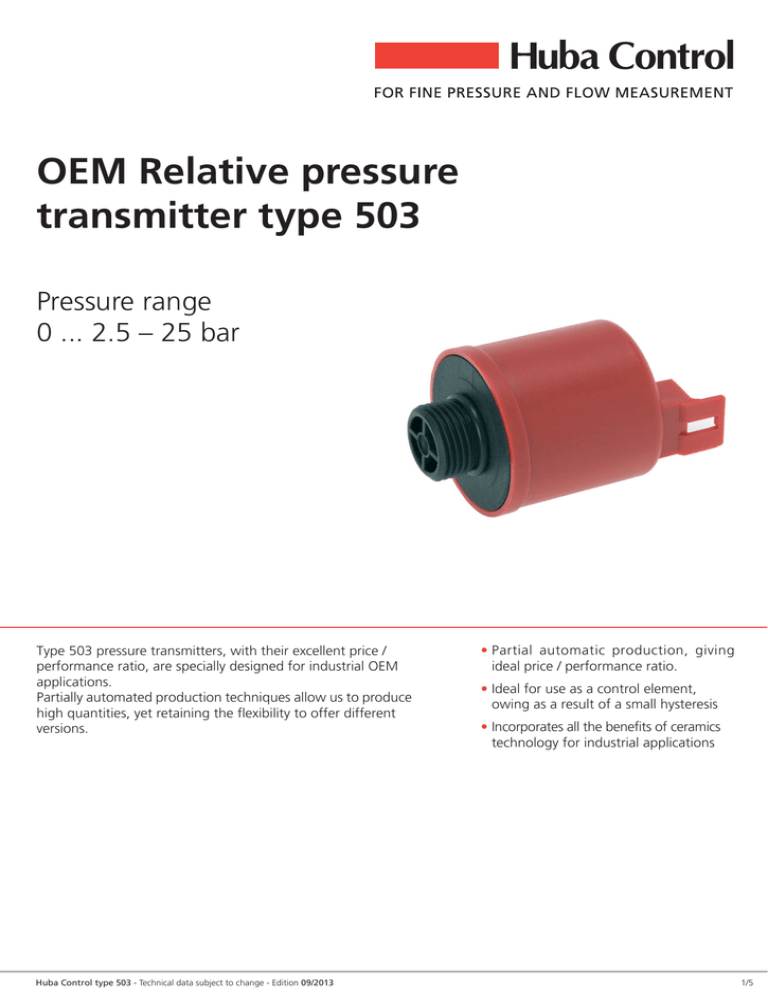

OEM Relative pressure transmitter type 503

OEM Relative pressure transmitter type 503

OEM Relative pressure
transmitter type 503
Pressure range
0 ... 2.5 25 bar
Type 503 pressure transmitters, with their excellent price /
performance ratio, are specially designed for industrial OEM
applications.
Partially automated production techniques allow us to produce
high quantities, yet retaining the flexibility to offer different
versions.
Huba Control type 503 - Technical data subject to change - Edition 09/2013
Partial automatic production, giving
ideal price / performance ratio.
Ideal for use as a control element,
owing as a result of a small hysteresis
Incorporates all the benefits of ceramics
technology for industrial applications
1/5
Technical overview
Pressure range
Relative
0 ... 2.5
Operating conditions
Medium
Medium
Ambient
Storage
Temperature
Overload admissible
Rupture pressure
25 bar
Liquids and neutral gases
+2 ... +90 ÀC
+10 ... +60 ÀC
-30 ... +85 ÀC
2 x fs
3 x fs (max. 50 bar)
Materials
ABS for cover with connector RAST 2.5
PA 6 for cover with connector DIN or cable
Housing material
Sensor
Pressure connector
Sealing material
Materials in contact with the medium
ABS
PA 6
Ceramic Al2O3 (96%)
Grivory GV 5H or Noryl GTX 20% GF
FPM, EPDM, NBR
Electrical overview
2 wire
3 wire
Polarity reversal protection
Electromagnetic compatibility
Output
Power supply
Load
Current consumption
voltage - 10 V
4 ... 20 mA
10.0 ... 33 VDC
< supply0.02
[Ohm]
< 20 mA
A
0 ... 5 V
9.0 ... 33 VDC
> 10 kOhm / < 100 nF
< 5 mA
0 ... 10 V
16.2 ... 33 VDC
> 10 kOhm / < 100 nF
< 5 mA
ratiom. 10 ... 90%
5 VDC μ5%
> 10 kOhm / < 100 nF
< 5 mA
Short circuit proof and protected against polarity reversal. For connector versions mechanical protection only. The correct
wiring acc. to the scheme has to be guaranteed by the OEM-customer.
The product is designed exclusively for installation in equipment. The customer is responsible for CE conformity.
Dynamic response
Response time
Load cycle
< 5 ms
< 50 Hz
Protection standard
With connector RAST 2.5
With DIN connector or cable 1.5 m
IP 00
IP 54
Electrical connections
DIN connector EN 175301-803-A
Cable 1.5 m
Connector RAST 2.5
Pressure connections
G ⅜ seal at front
Grivory GV 5H
G ⅜ seal at back
Grivory GV 5H
G ¼ seal at back
Grivory GV 5H
(to max. 6 bar nominal pressure) Grivory GV 5H
Outside thread
Plug connector
Mounting instructions
Installation arrangement
Starting torque G ⅜
min. 0.4 Nm / max. 0.8 Nm
Weight
With connector RAST 2.5
With connector DIN
With cable
Unrestricted
Destruction > 30 Nm
~ 41 g
~ 55 g
~ 95 g
Packaging
per 240 pcs.
per 600 pcs.
Multiple packaging Cardboard boxes with blister pack inserts
Accuracy
Parameter
Resolution
Unit
% fs
% fs
% fs
μ 1.5
μ 1.5
0.1
Total of linearity,
hysteresis and repeatability
Long term stabilitiy acc. DIN EN 60770
TC zero point 1)
max.
TC sensitivity 1)
max.
% fs
% fs
% fs/10K
% fs/10K
μ 1.0
μ 0.5
μ 0.6
μ 0.15
Tolerance zero point
Tolerance full scale
Test conditions:
max.
max.
25 ÀC, 45% RH, power supply 24 VDC / 5 VDC
TK0 / TKE 2 ... 85 ÀC
1)
2/5
TC = Temperature coefficient
Huba Control type 503 - Technical data subject to change - Edition 09/2013
Order code selection table
Pressure range 1)
Sealing material 2)
Adjustment
Output / power supply
Electrical connection 3)
Pressure connection
Pressure range variation
(optional)
503. 9 X X X X X X X X
0 ... 2.5 bar
0 ... 4 bar
0 ... 6 bar
0 ... 10 bar
0 ... 16 bar
0 ... 25 bar
▲ Fullscale signal at these pressures
FPM
Fluoro-elastomer
EPDM
Ethylene propylene
NBR
Butadiene Acylonitrile
Factory
0 ... 5 V
9.0 ... 33 VDC
0 ... 10 V
16.2 ... 33 VDC
4 ... 20 mA
10.0 ... 33VDC
ratiom. 10 ... 90%
5 VDC μ5%
Connector RAST 2.5
Connector DIN EN 175301-803-A
Cable 1.5 m
Outside thread
G ⅜, seal at front
Outside thread
G ⅜, seal at back
Plug connector
(to max. 6 bar measuring range)
Outside thread
G ¼, seal at back
1
1
1
3
3
3
4
5
7
0
1
2
0
1
2
0
3
4
5
6
6
Grivory GV 5H
Grivory GV 5H
Noryl GV 5H
Grivory GV 5H
1
1
3
1
Indicate W and state range on order (e.g.: W0... + 9bar/OUT1...9V)
0
1
2
0
1
2
3
W
Accessories 4)
Order number
105883
103510
103167
104551
Safety spring for plug connector
Female connector DIN EN 175301-803-A with sealing
Female connector RAST 2.5 with cable 1450 mm
Calibration Certificate
AMP connector 5)
1)
4)
ManufacturerÊs Part No.
3-829868-3
Colour
grey
1-966194-3
beige
Other pressure ranges on request
Accessories supplied loose
2)
5)
For flexible wire
7 x 0.20 mm = 0.22 mm2 or
12 x 0.20 mm = 0.35 mm2
7 x 0.25 mm = 0.35 mm2
Connector with cable
IN
= red
OUT = yellow
GND = black
3)
According to ISO standard R 1629, other sealing materials on request
Delivery without female connector
To be ordered separately from original manufacturer. Further information can be found in the manufacturer specification No. 114-18049
Huba Control type 503 - Technical data subject to change - Edition 09/2013
3/5
Dimensions in mm / Electrical connections
Counter part G 3/8 sealed at back
O-Ring
Detail X
Counter part for plug connector
Counter part G 3/8 sealed at front
1) Bottom variable!
G1/4
33.2
O-Ring
Detail Y
3 wire
3 wire
3 wire
brown
white
green
2 wire
2 wire
brown
green
4/5
Huba Control type 503 - Technical data subject to change - Edition 09/2013
