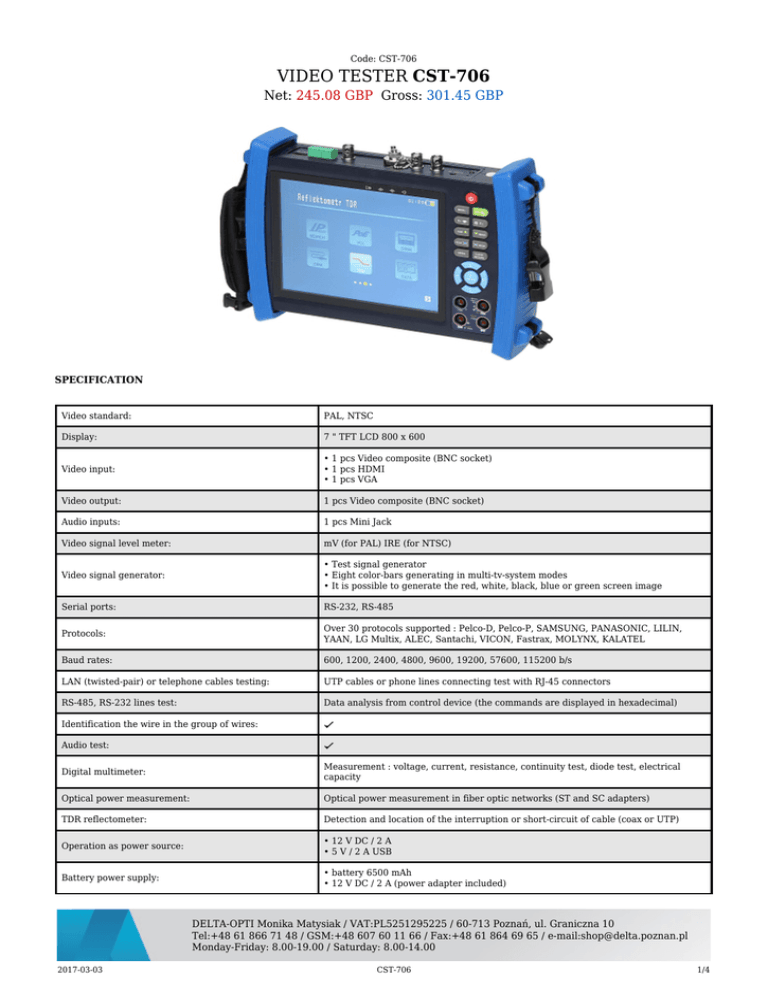

video tester cst-706

Code: CST-706
VIDEO TESTER CST-706
Net: 245.08 GBP Gross: 301.45 GBP
SPECIFICATION
Video standard:
PAL, NTSC
Display:
7 " TFT LCD 800 x 600
Video input:
• 1 pcs Video composite (BNC socket)
• 1 pcs HDMI
• 1 pcs VGA
Video output:
1 pcs Video composite (BNC socket)
Audio inputs:
1 pcs Mini Jack
Video signal level meter:
mV (for PAL) IRE (for NTSC)
Video signal generator:
• Test signal generator
• Eight color-bars generating in multi-tv-system modes
• It is possible to generate the red, white, black, blue or green screen image
Serial ports:
RS-232, RS-485
Protocols:
Over 30 protocols supported : Pelco-D, Pelco-P, SAMSUNG, PANASONIC, LILIN,
YAAN, LG Multix, ALEC, Santachi, VICON, Fastrax, MOLYNX, KALATEL
Baud rates:
600, 1200, 2400, 4800, 9600, 19200, 57600, 115200 b/s
LAN (twisted-pair) or telephone cables testing:
UTP cables or phone lines connecting test with RJ-45 connectors
RS-485, RS-232 lines test:
Data analysis from control device (the commands are displayed in hexadecimal)
Identification the wire in the group of wires:
Audio test:
Digital multimeter:
Measurement : voltage, current, resistance, continuity test, diode test, electrical
capacity
Optical power measurement:
Optical power measurement in fiber optic networks (ST and SC adapters)
TDR reflectometer:
Detection and location of the interruption or short-circuit of cable (coax or UTP)
Operation as power source:
• 12 V DC / 2 A
• 5 V / 2 A USB
Battery power supply:
• battery 6500 mAh
• 12 V DC / 2 A (power adapter included)
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-03
CST-706
1/4
Backup time:
max. 17 hours
Operation:
OSD
Main features:
• Motor units and PTZ (Speed Dome) cameras control
• Test signal generator
• Video signal level test
• Audio test
• Video recording to micro SD card with playback possibility - 4 GB included
• Playback the records
• Identification the wire in the group of wires
• PING - test the link using ICMP packets
• LAN (twisted-pair) cables testing
• RJ45 - Ethernet ports tester
• LAN connections monitoring
• IP addresses scanner
• PoE power meter
• Digital Multimeter
• Optical power meter
• TDR reflectometer
• Data monitor - serial port data analysis (RS-485 or RS-232)
• USB - Computer interface
• DC 5/12V / 2A power source
• Torch built-in
Operation temp:
-10 °C ... 50 °C
Permissible relative humidity:
30 % ... 90 %
Weight:
1.18 kg
Dimensions:
245 x 175 x 55 mm
Supported languages:
English, French, Spanish, Dutch, Polish, Portuguese, German, Russian, Hungarian,
Italian
Guarantee:
2 years
PRESENTATION
Front panel (main menu options visible):
Bottom view:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-03
CST-706
2/4
Top view:
The device is protected by a rubber cover:
Rear view (removable battery visible):
In the kit:
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-03
CST-706
3/4
The tester with accessories housed in a handy bag:
OUR OPINIONS
Perfect to build and create the CCTV system.
Attention! The device is not intended to continuous work 24/7.
PACKAGE PARAMETERS
Dimensions (L x W x H): 325x285x100 mm Package: Karton Gross Weight: 2.5 kg
