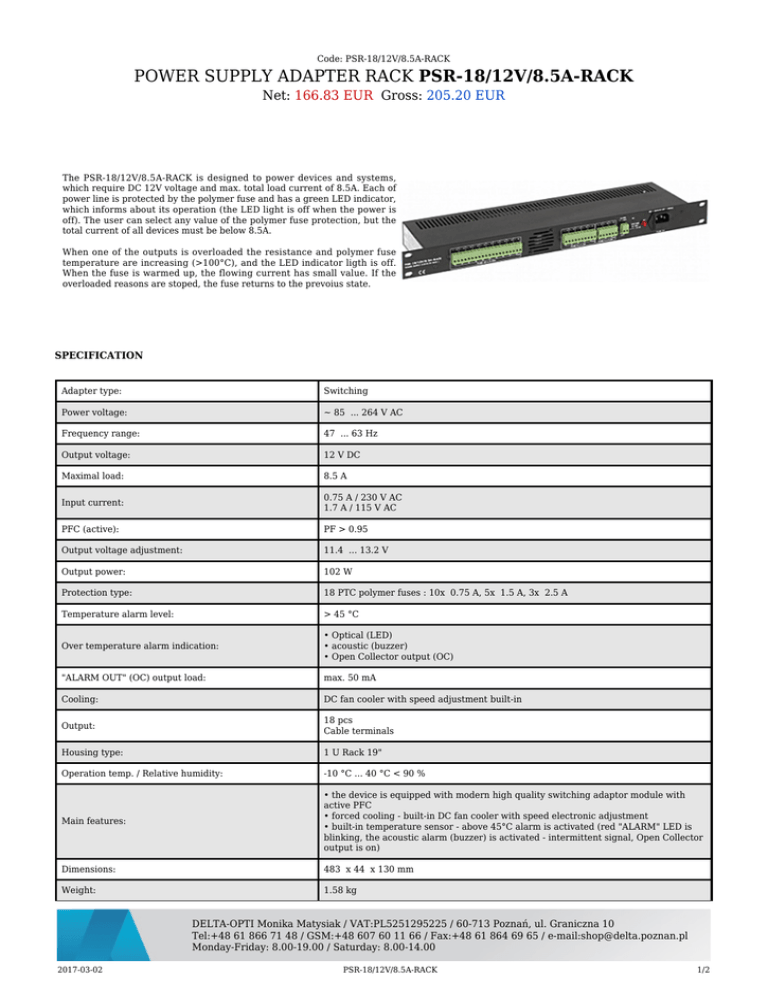

power supply adapter rack psr-18/12v/8.5a-rack

power supply adapter rack psr-18/12v/8.5a-rack

Code: PSR-18/12V/8.5A-RACK
POWER SUPPLY ADAPTER RACK PSR-18/12V/8.5A-RACK
Net: 166.83 EUR Gross: 205.20 EUR
The PSR-18/12V/8.5A-RACK is designed to power devices and systems,
which require DC 12V voltage and max. total load current of 8.5A. Each of
power line is protected by the polymer fuse and has a green LED indicator,
which informs about its operation (the LED light is off when the power is
off). The user can select any value of the polymer fuse protection, but the
total current of all devices must be below 8.5A.
When one of the outputs is overloaded the resistance and polymer fuse
temperature are increasing (>100°C), and the LED indicator ligth is off.
When the fuse is warmed up, the flowing current has small value. If the
overloaded reasons are stoped, the fuse returns to the prevoius state.
SPECIFICATION
Adapter type:
Switching
Power voltage:
~ 85 ... 264 V AC
Frequency range:
47 ... 63 Hz
Output voltage:
12 V DC
Maximal load:
8.5 A
Input current:
0.75 A / 230 V AC
1.7 A / 115 V AC
PFC (active):
PF > 0.95
Output voltage adjustment:
11.4 ... 13.2 V
Output power:
102 W
Protection type:
18 PTC polymer fuses : 10x 0.75 A, 5x 1.5 A, 3x 2.5 A
Temperature alarm level:
> 45 °C
Over temperature alarm indication:
• Optical (LED)
• acoustic (buzzer)
• Open Collector output (OC)
"ALARM OUT" (OC) output load:
max. 50 mA
Cooling:
DC fan cooler with speed adjustment built-in
Output:
18 pcs
Cable terminals
Housing type:
1 U Rack 19"
Operation temp. / Relative humidity:
-10 °C ... 40 °C < 90 %
Main features:
• the device is equipped with modern high quality switching adaptor module with
active PFC
• forced cooling - built-in DC fan cooler with speed electronic adjustment
• built-in temperature sensor - above 45°C alarm is activated (red "ALARM" LED is
blinking, the acoustic alarm (buzzer) is activated - intermittent signal, Open Collector
output is on)
Dimensions:
483 x 44 x 130 mm
Weight:
1.58 kg
DELTA-OPTI Monika Matysiak / VAT:PL5251295225 / 60-713 Poznań, ul. Graniczna 10
Tel:+48 61 866 71 48 / GSM:+48 607 60 11 66 / Fax:+48 61 864 69 65 / e-mail:[email protected]
Monday-Friday: 8.00-19.00 / Saturday: 8.00-14.00
2017-03-02
PSR-18/12V/8.5A-RACK
1/2
Guarantee:
2 years
PRESENTATION
Front panel (all connectors visible):
Top view (all screw terminals are separable):
In the kit:
PACKAGE PARAMETERS
Dimensions (L x W x H): 500x220x60 mm Package: Karton Gross Weight: 1.72 kg
